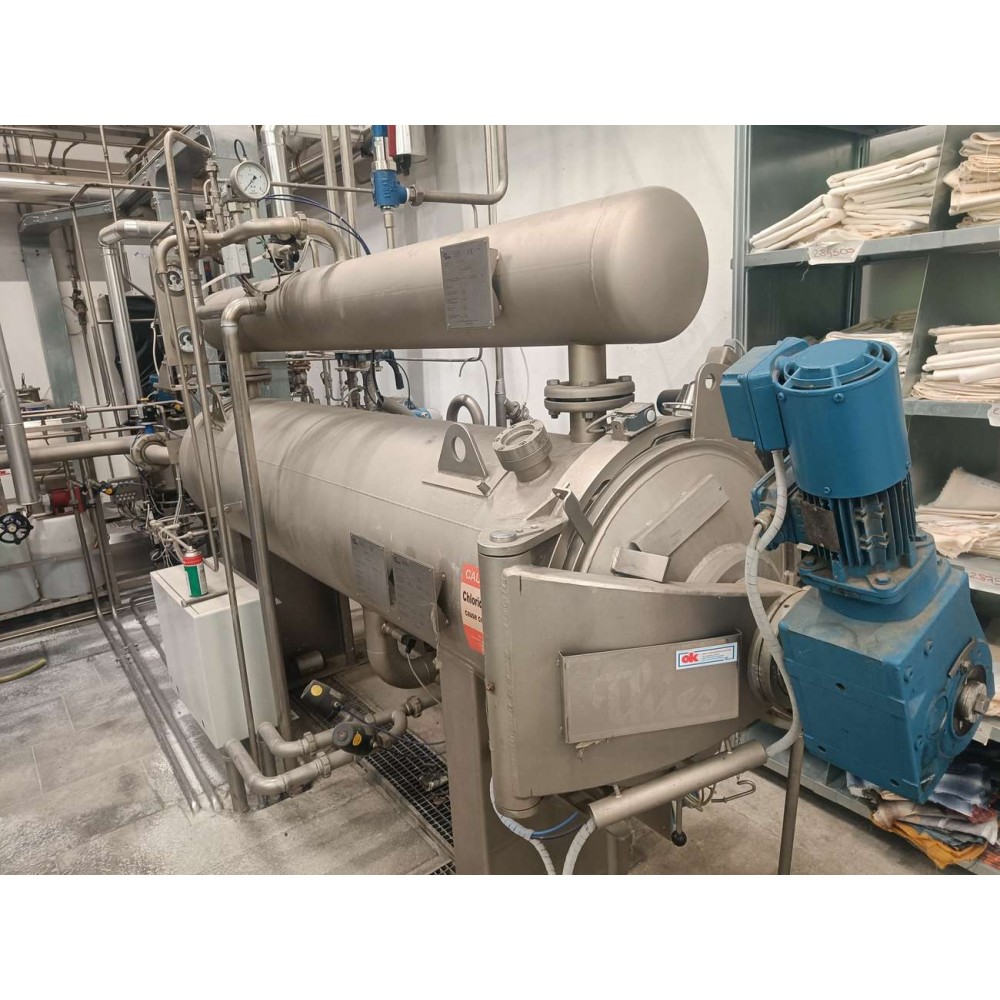

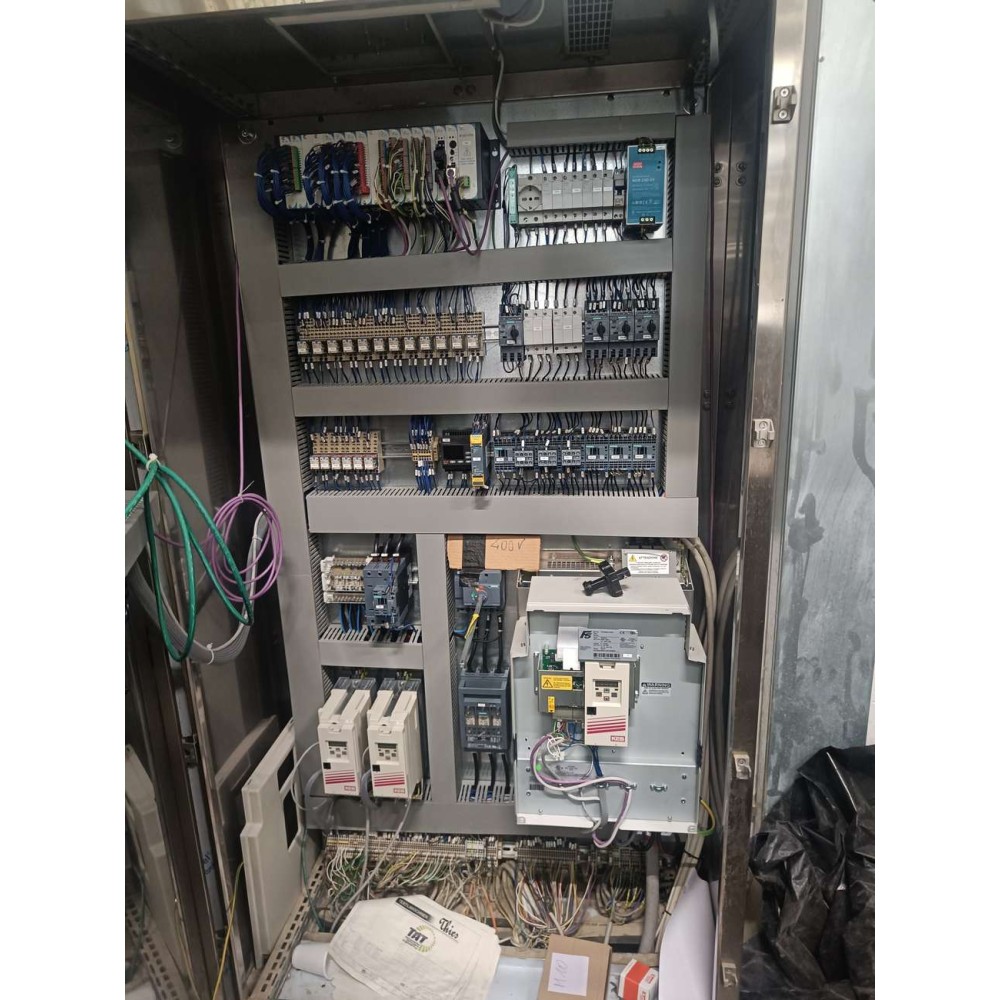

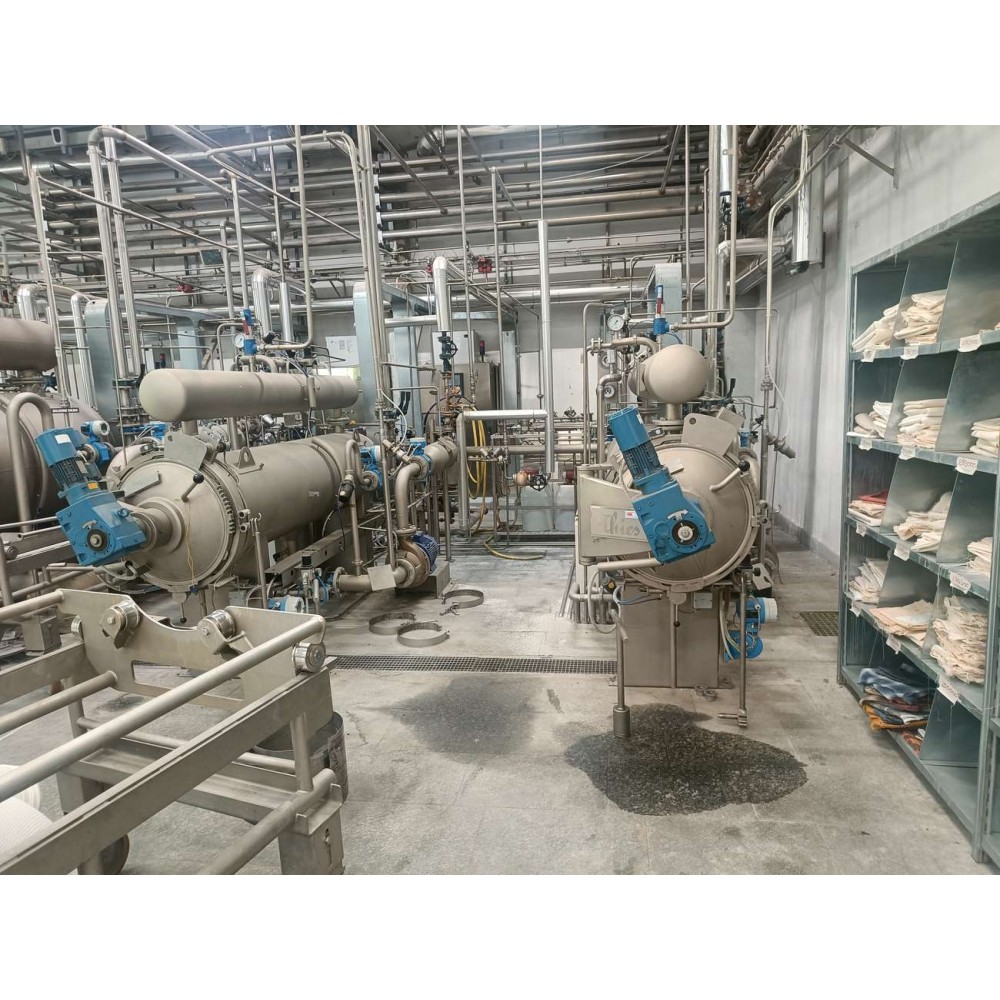

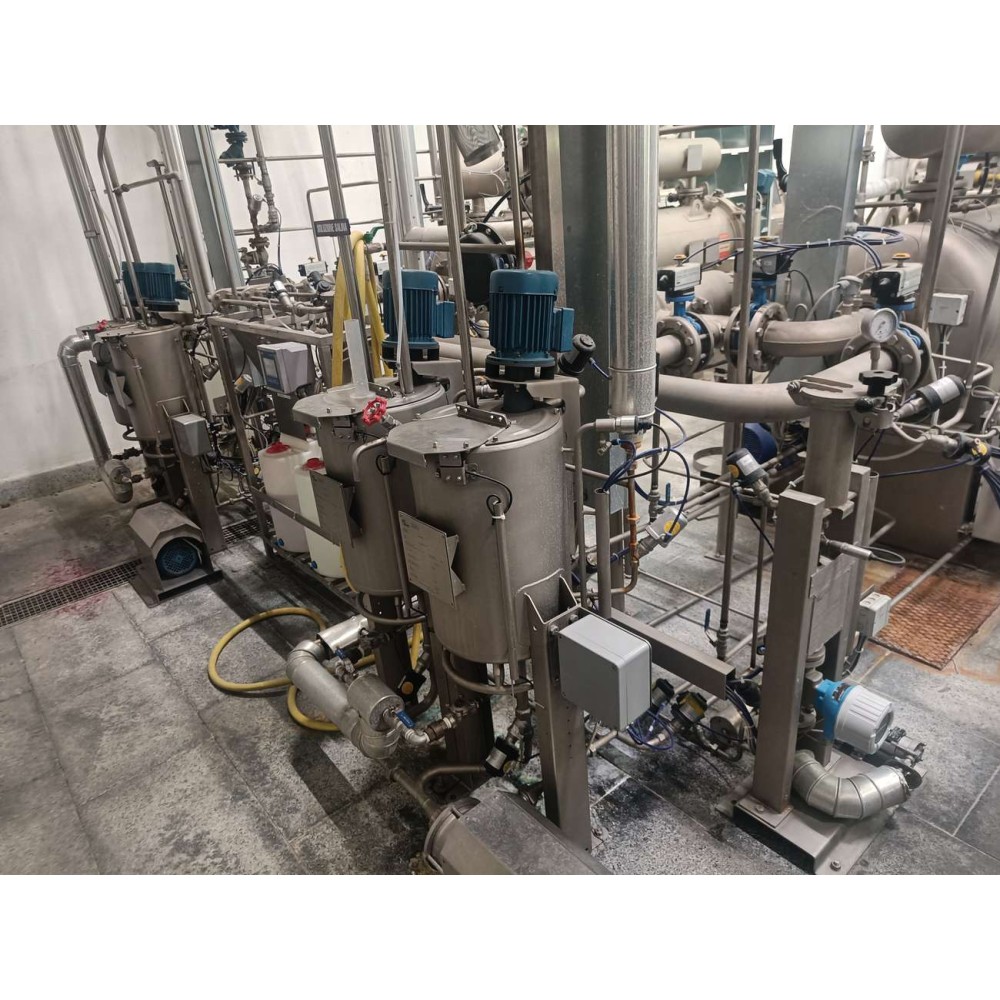

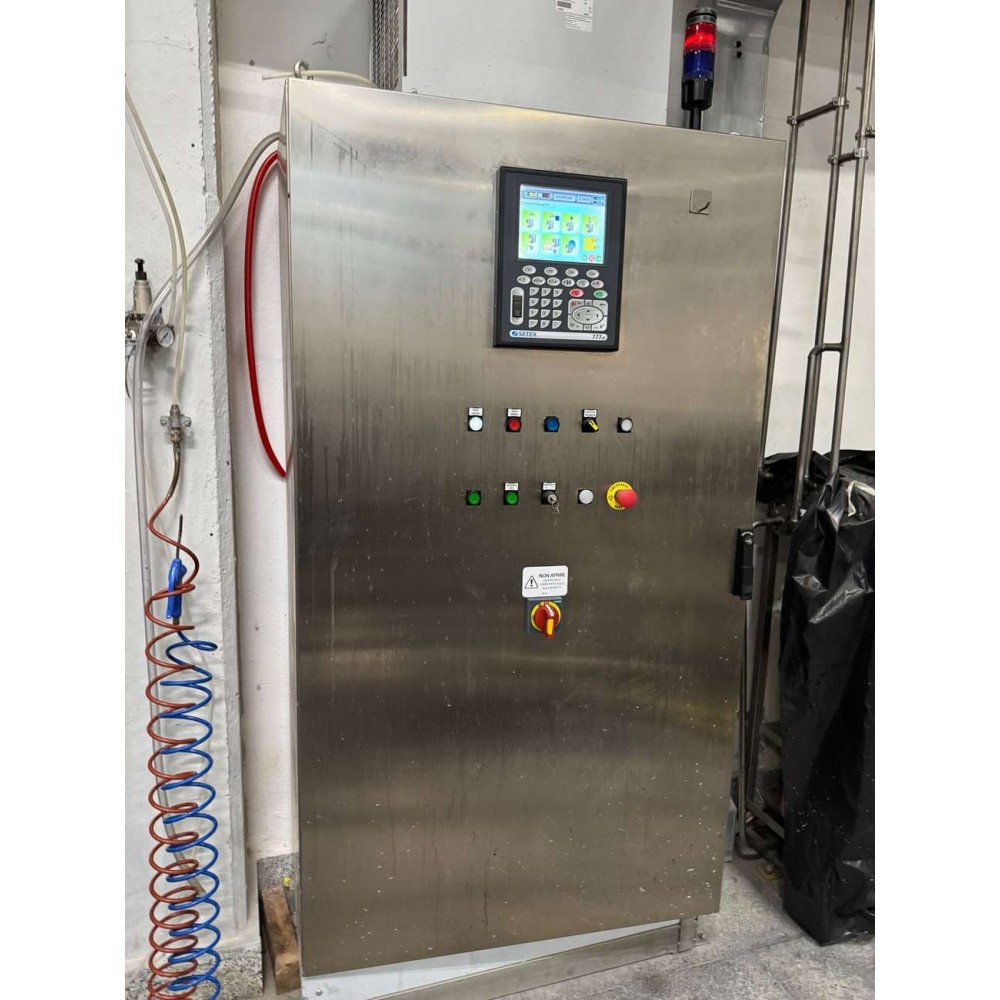

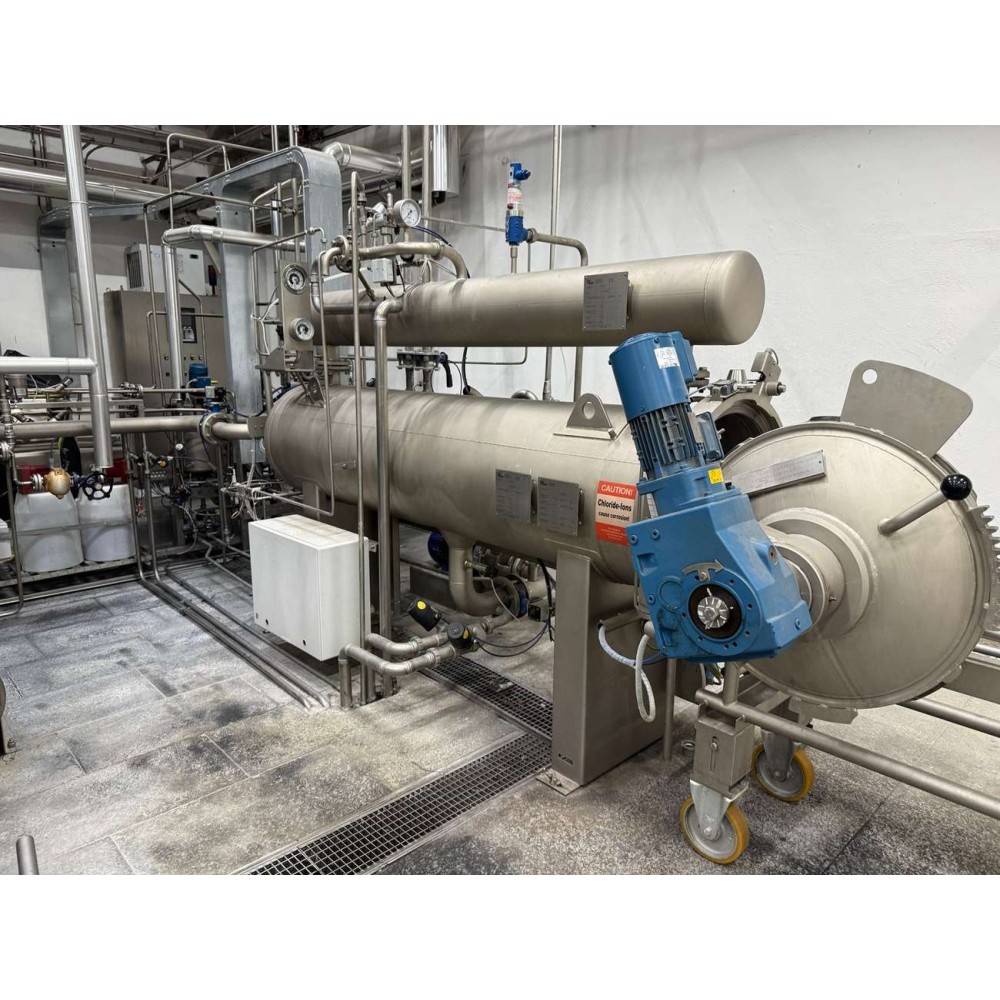

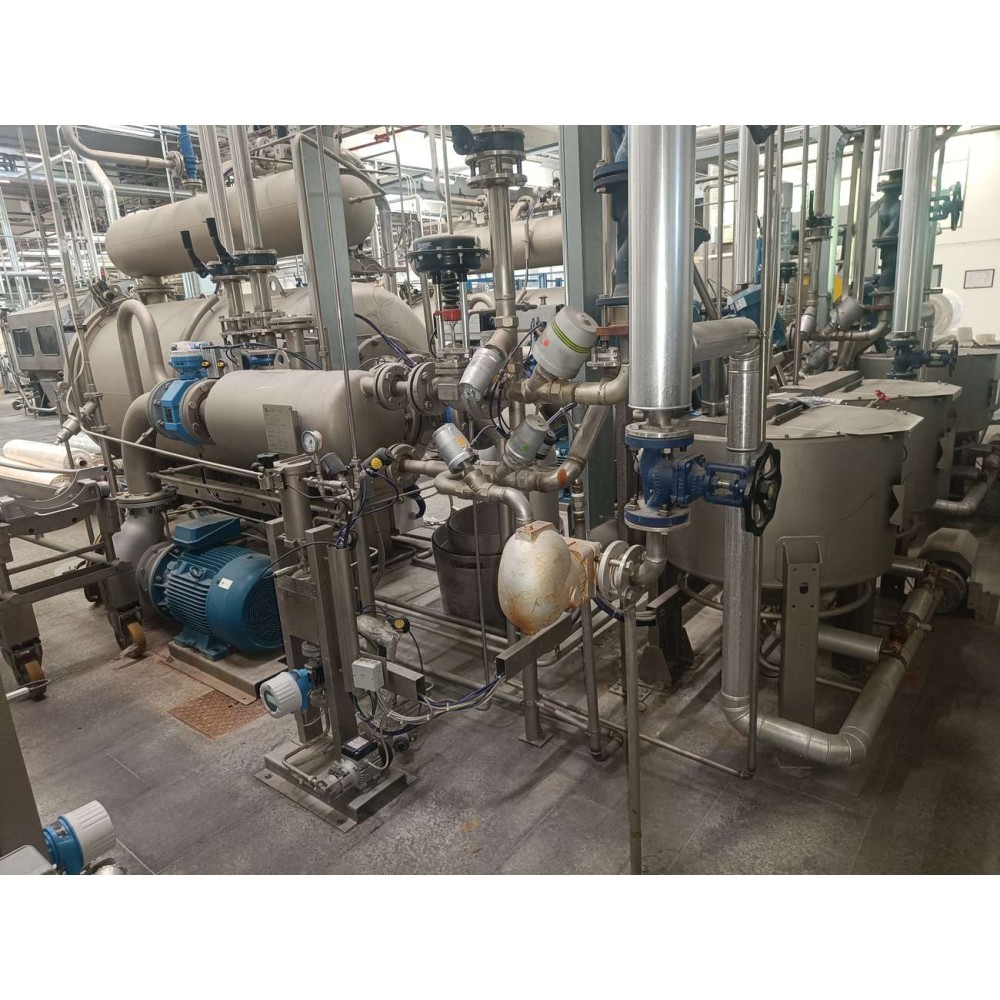

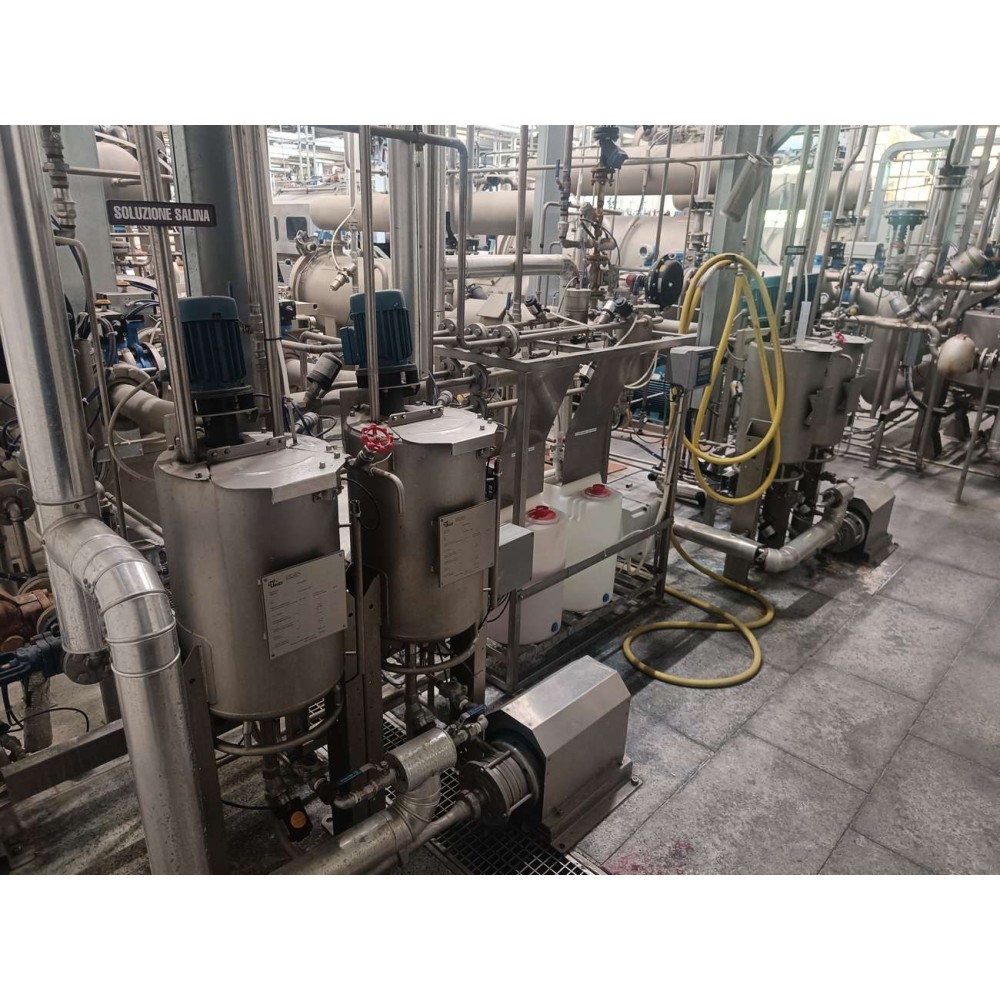

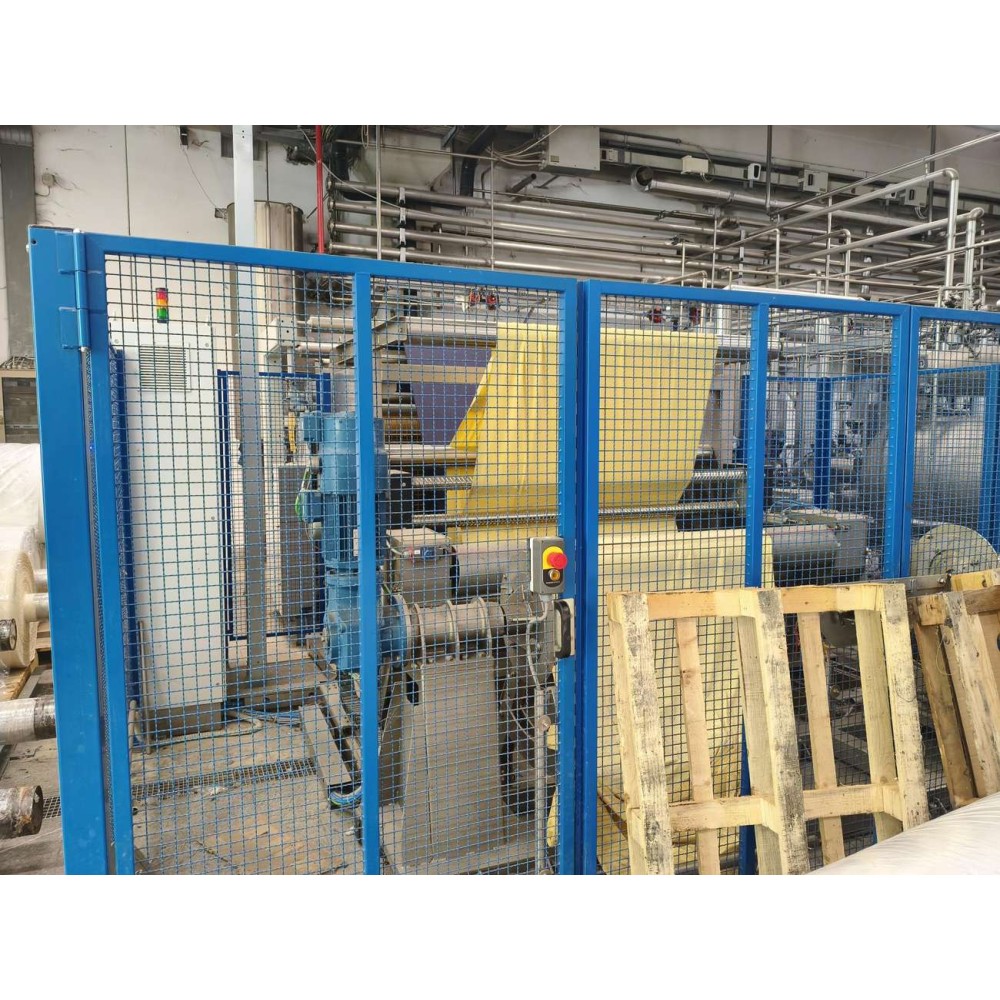

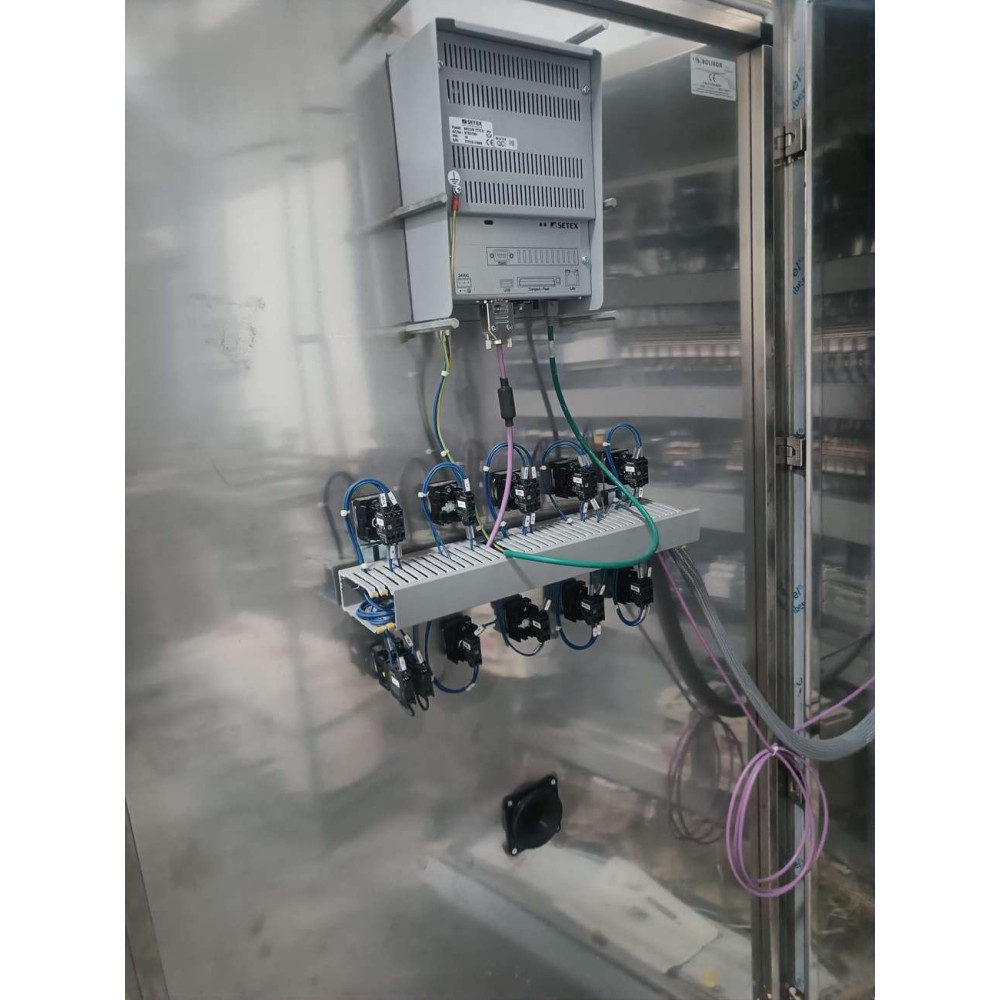

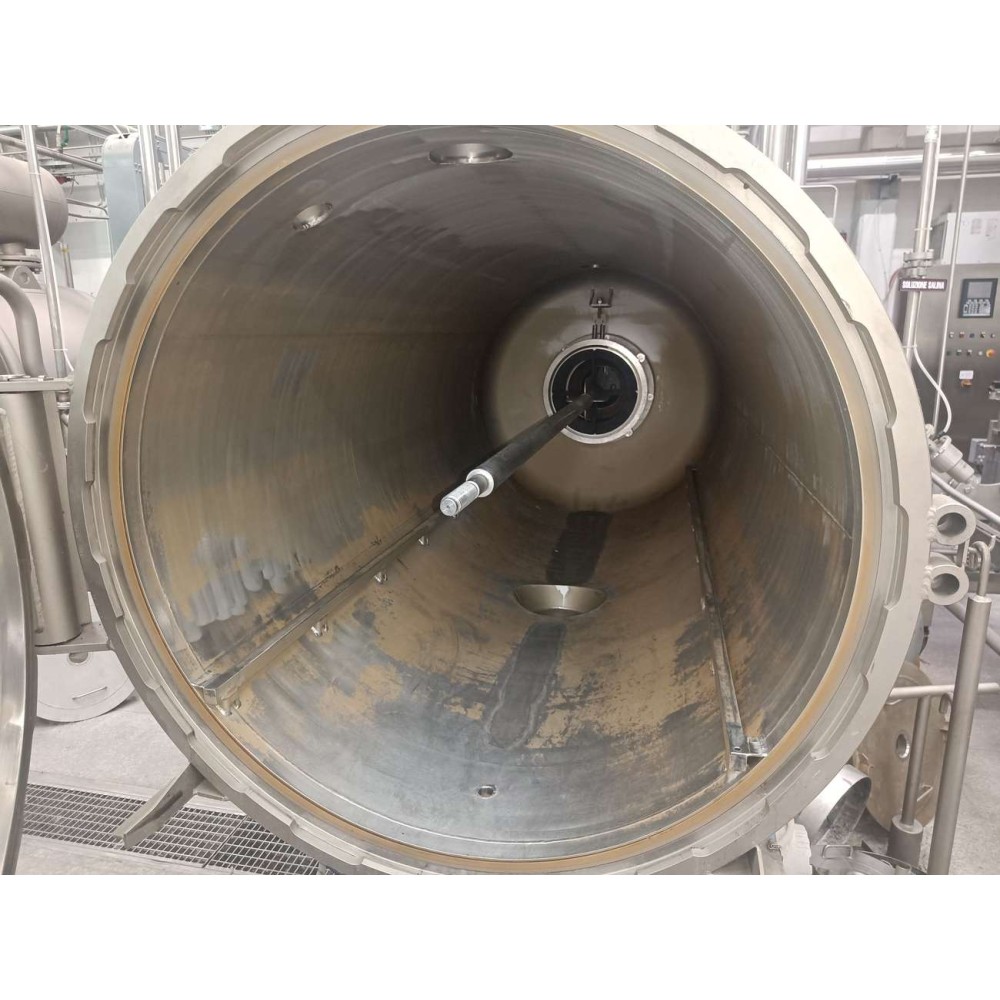

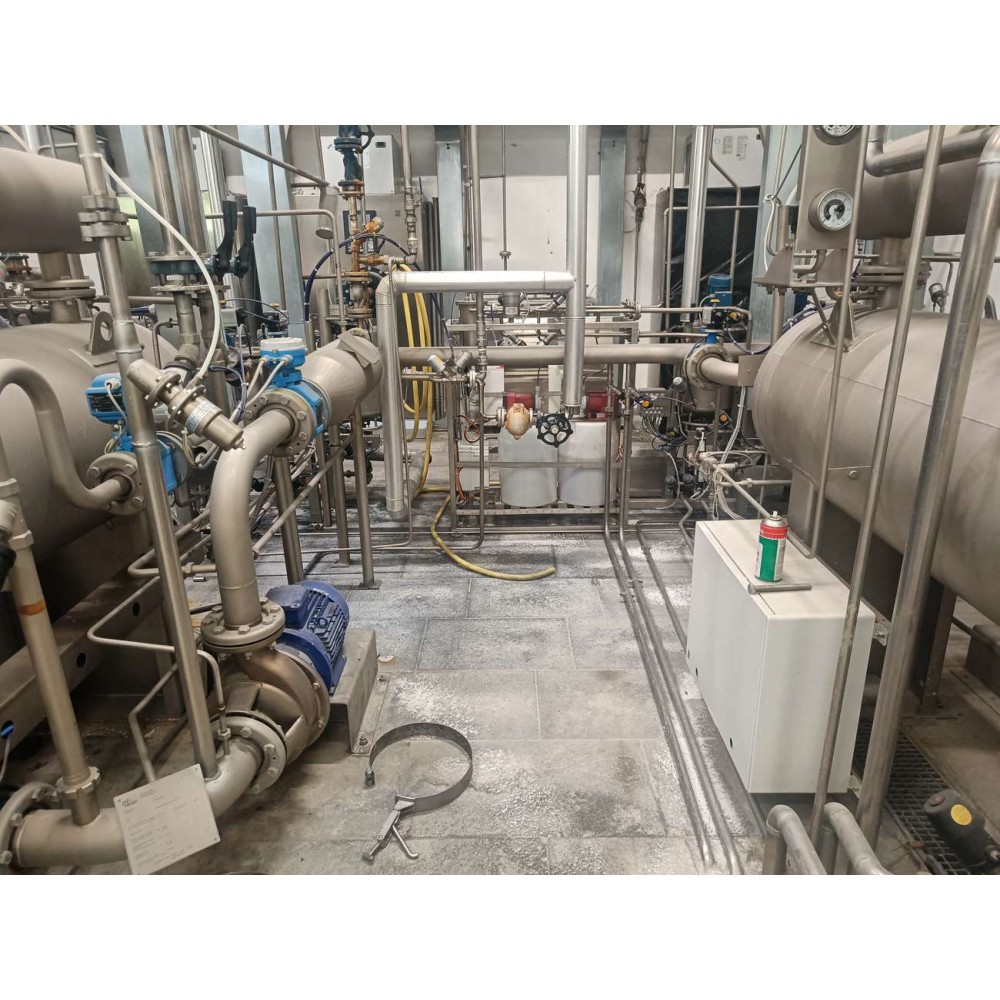

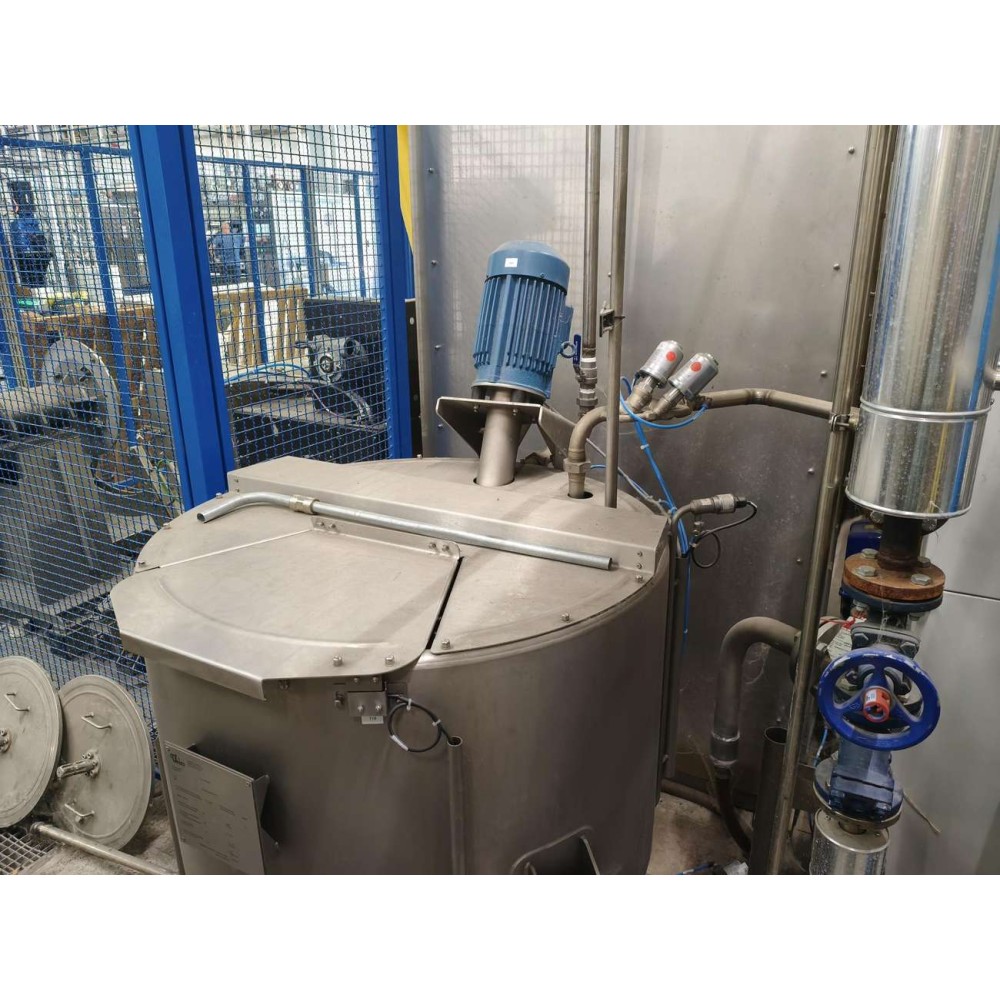

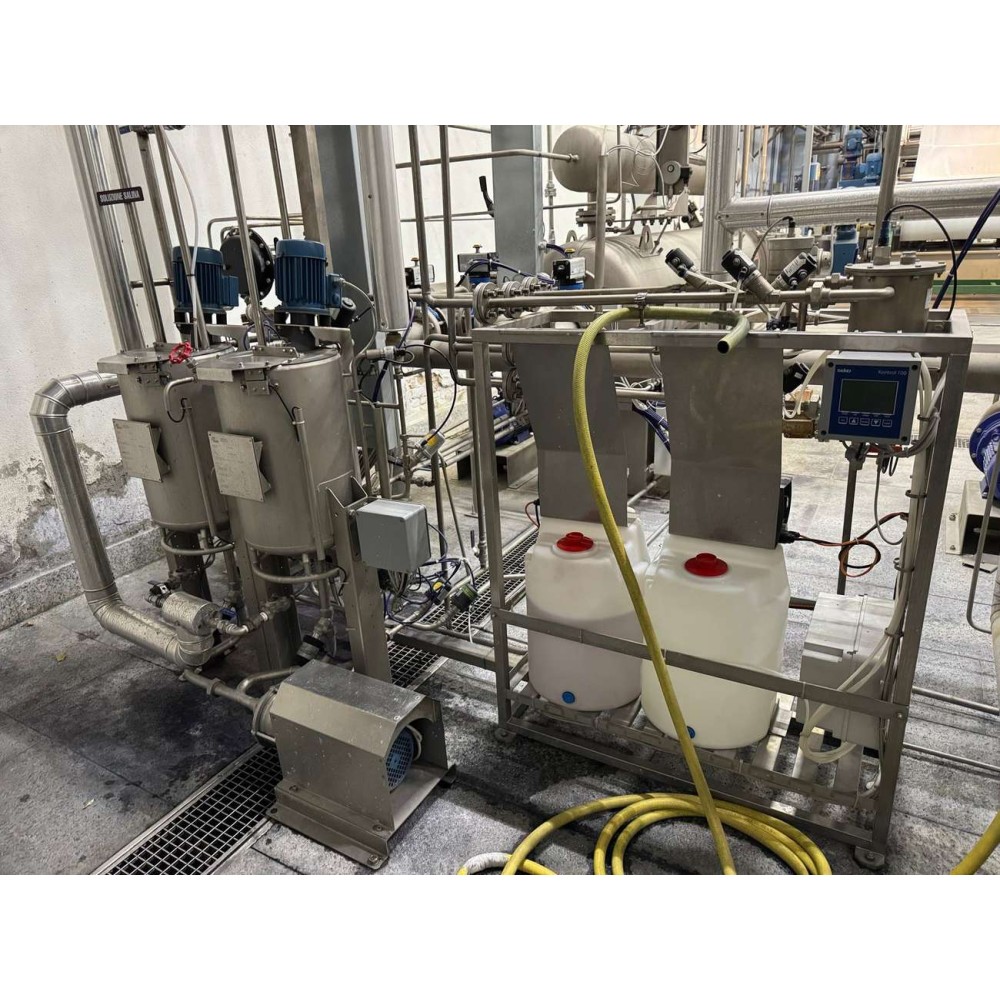

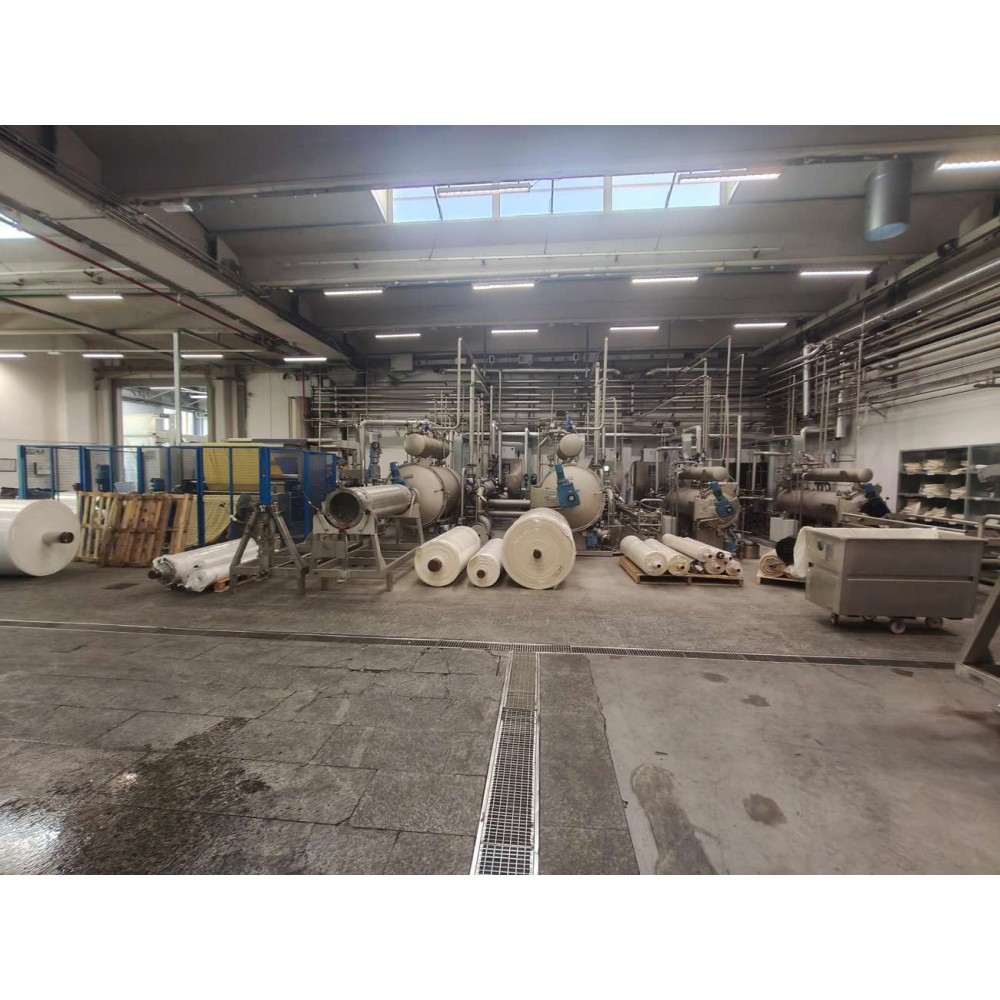

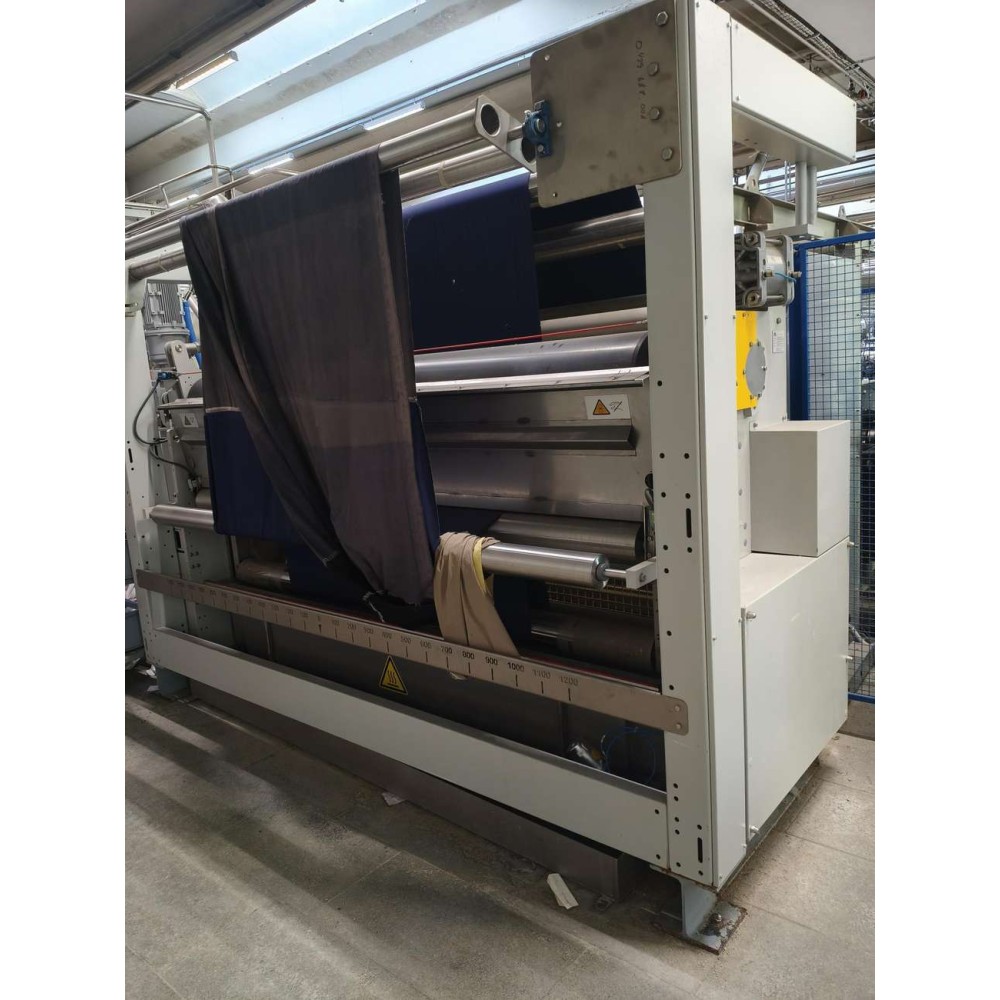

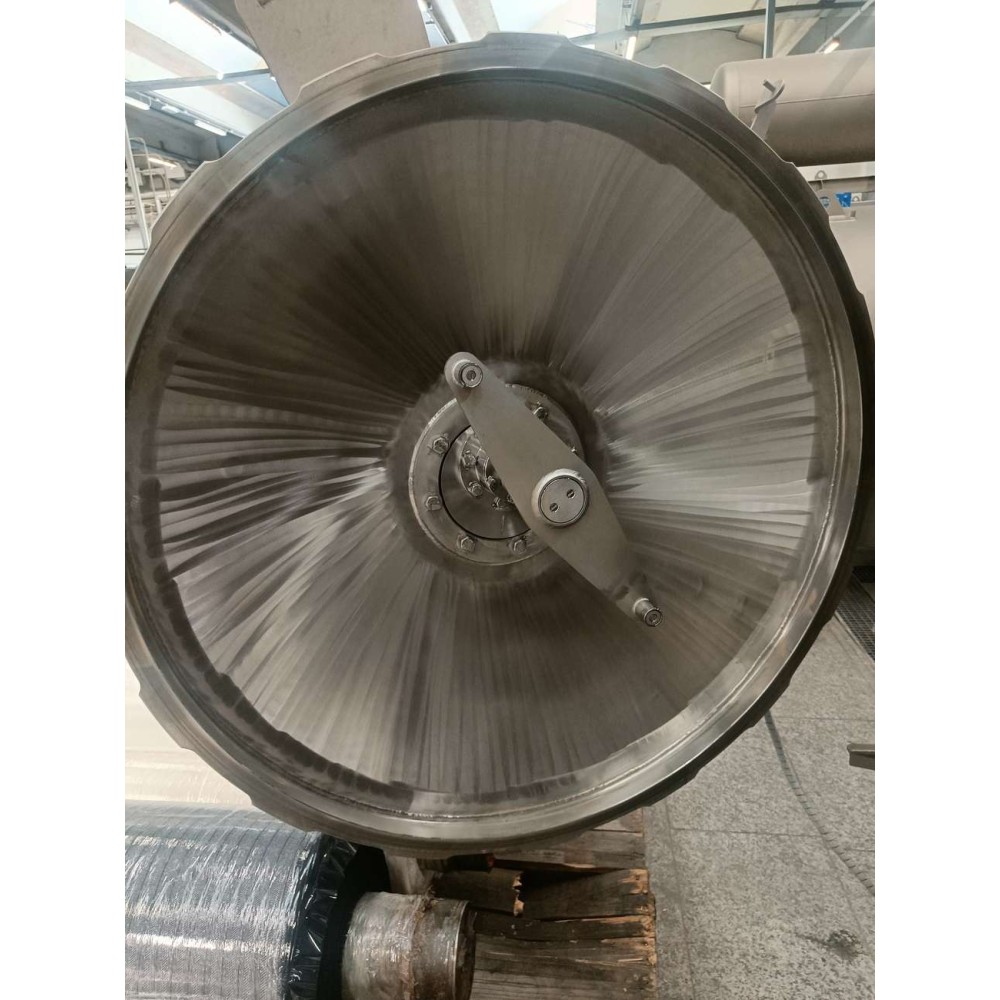

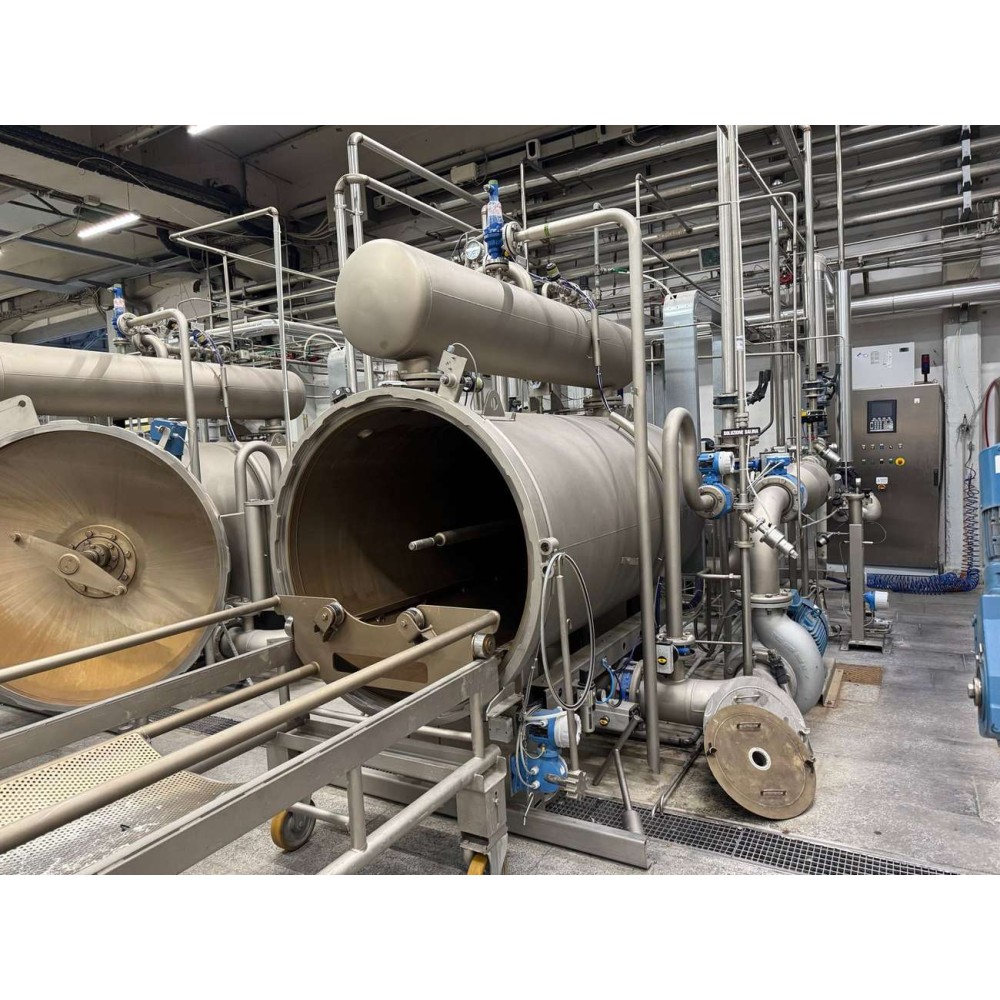

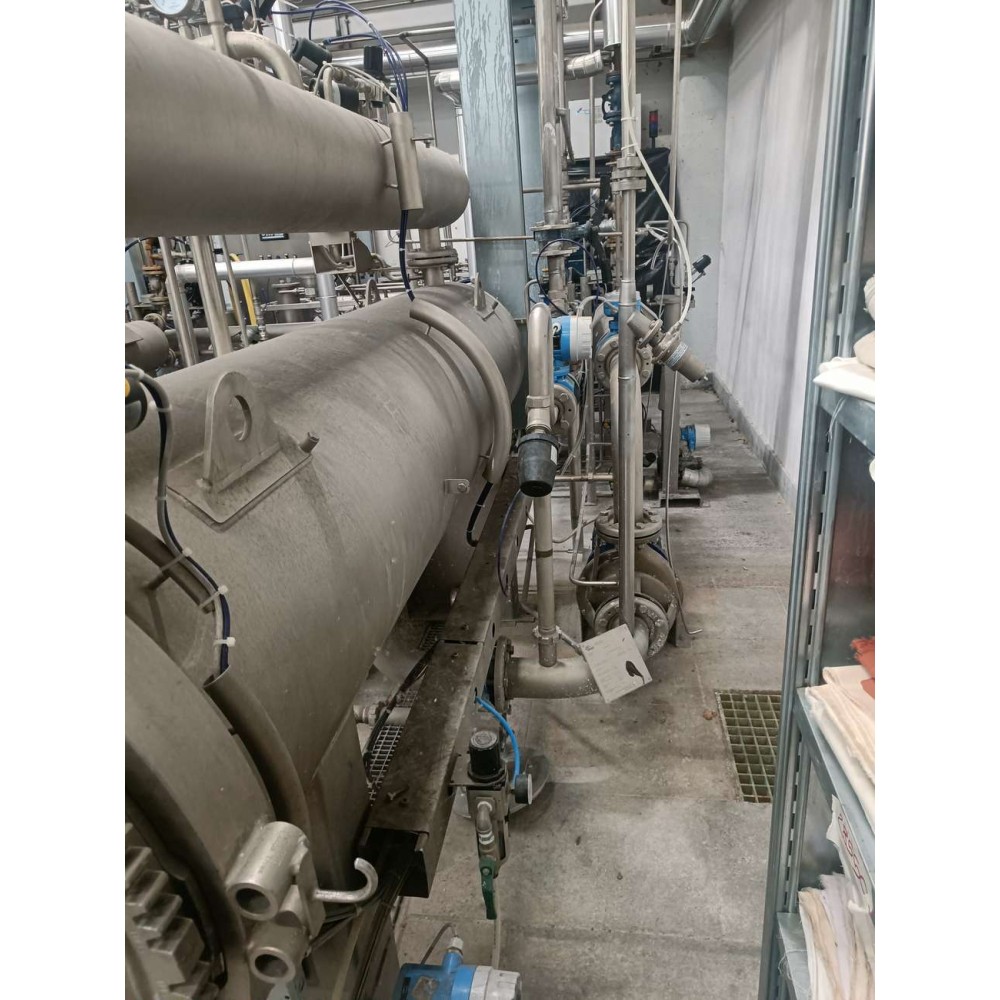

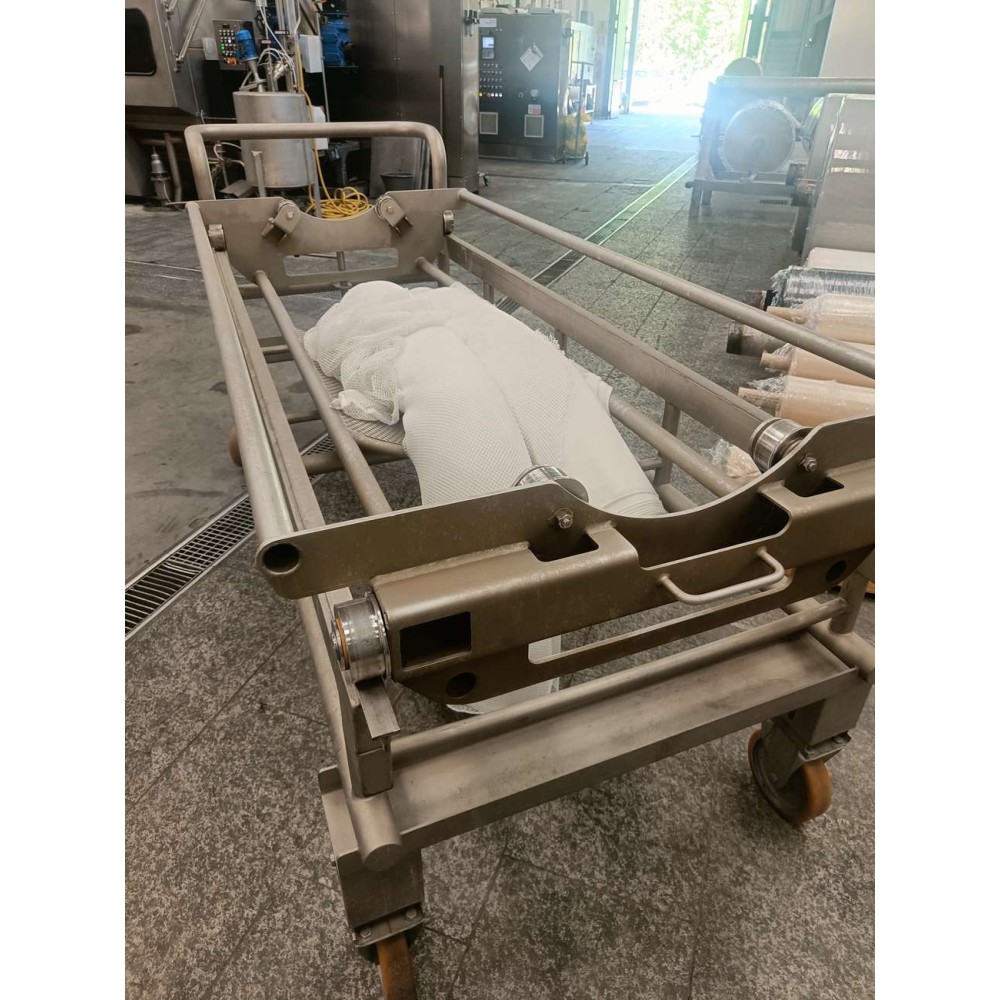

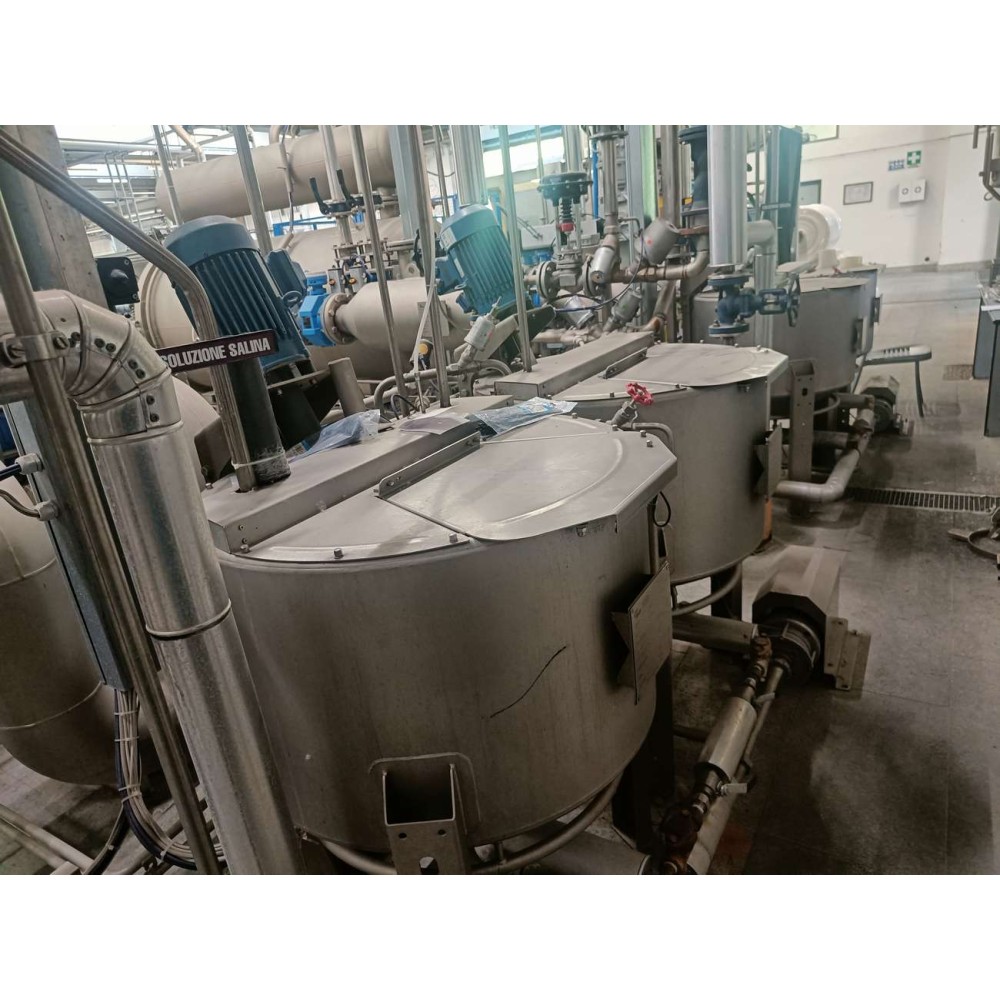

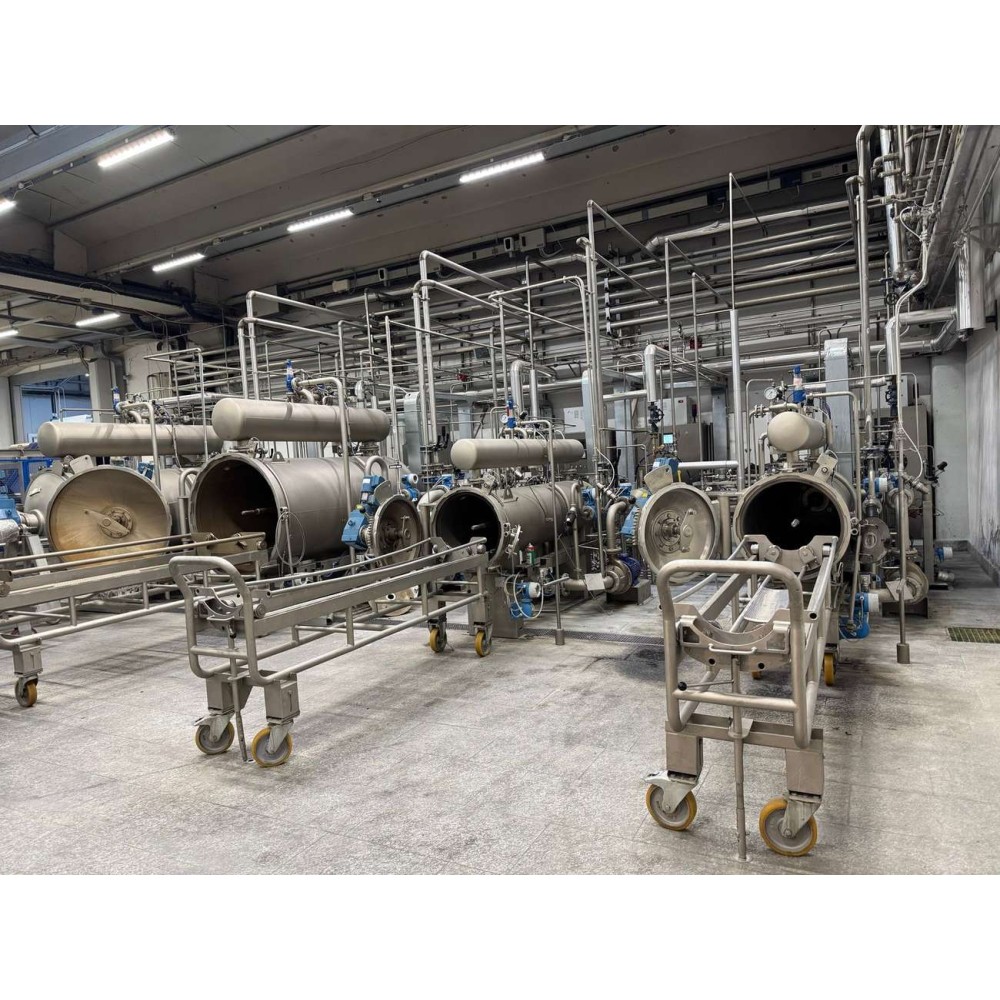

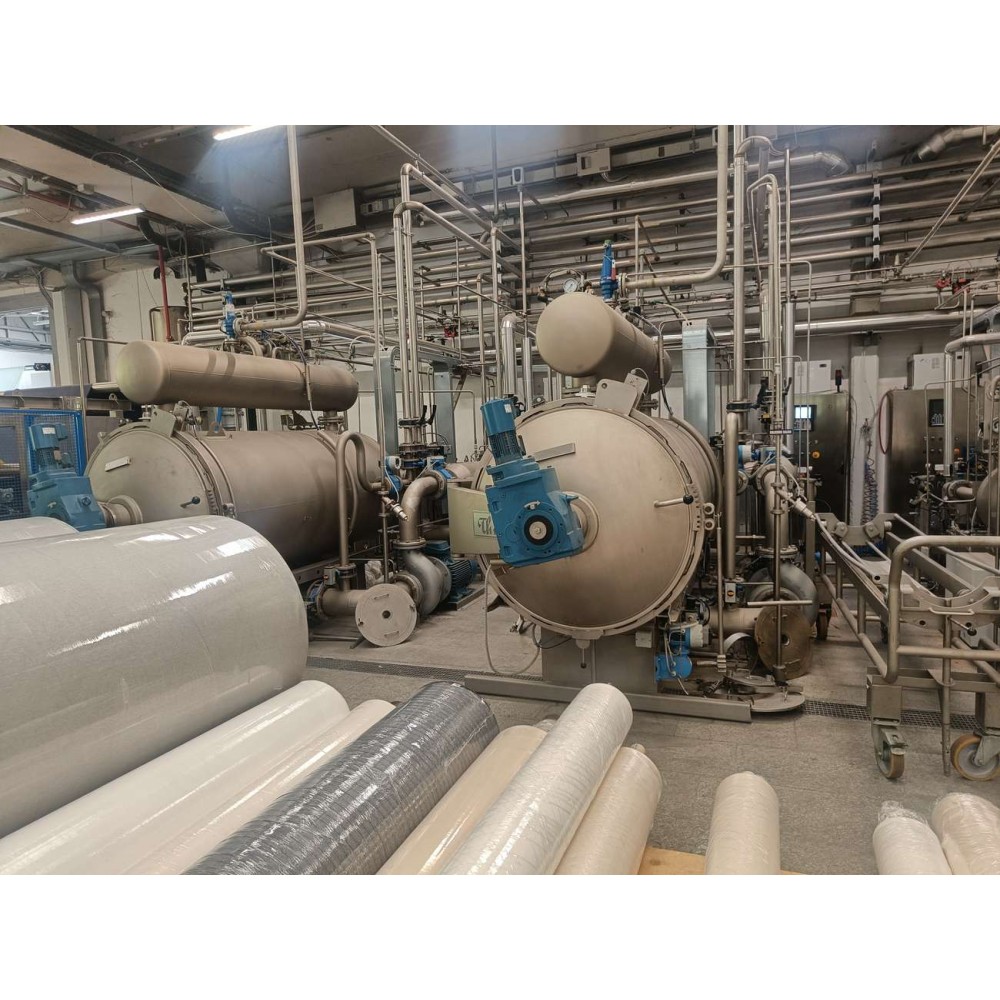

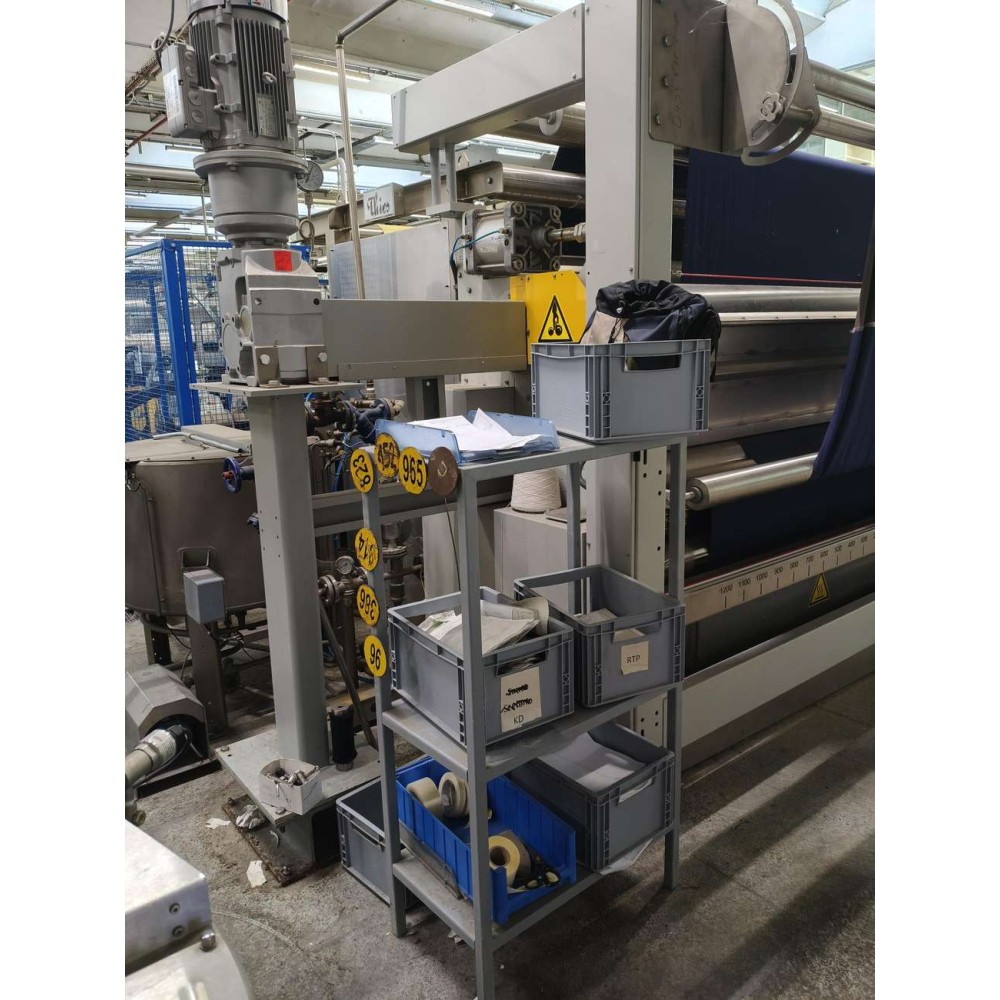

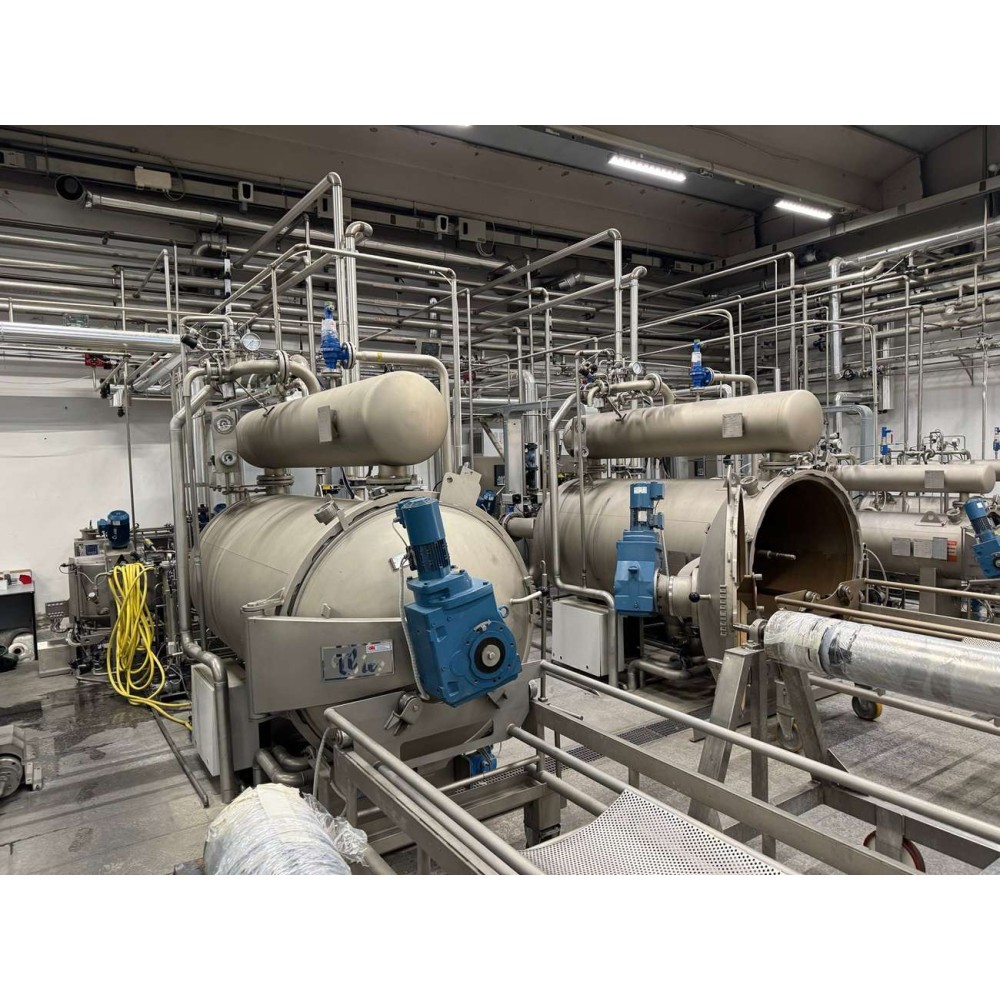

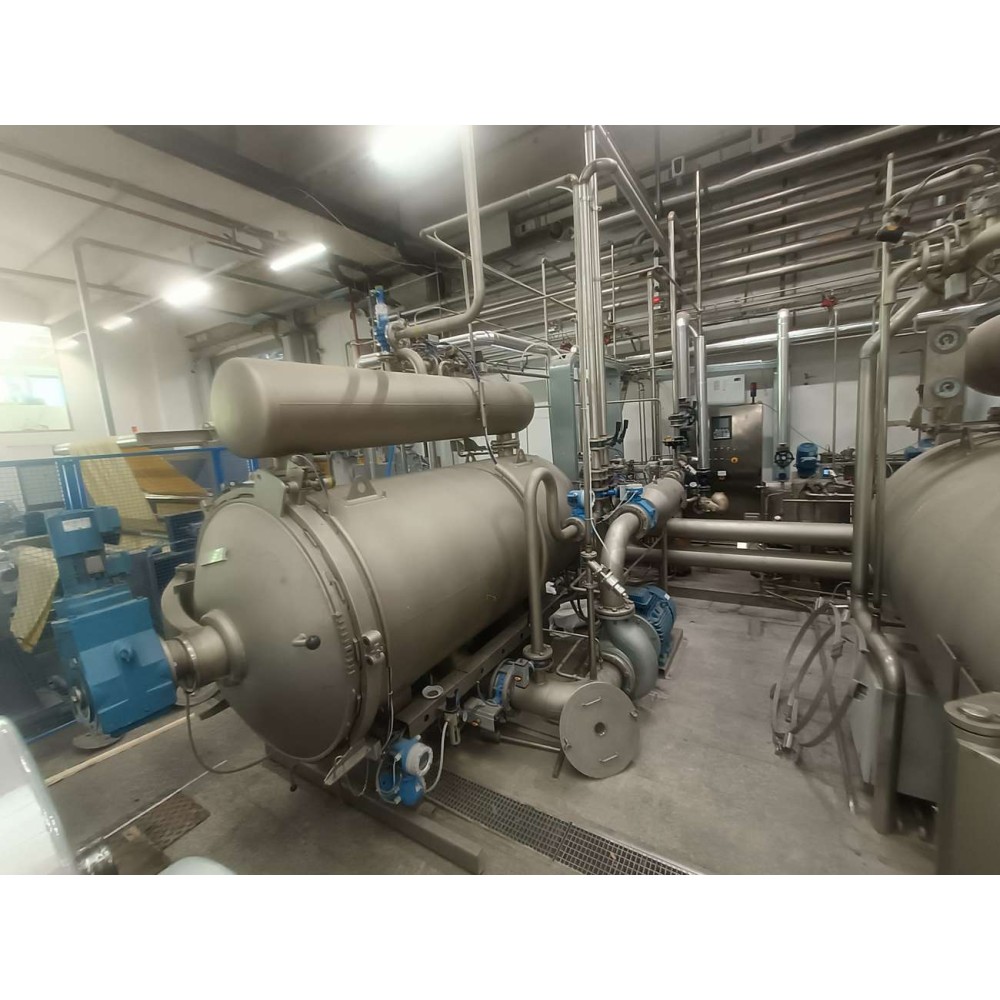

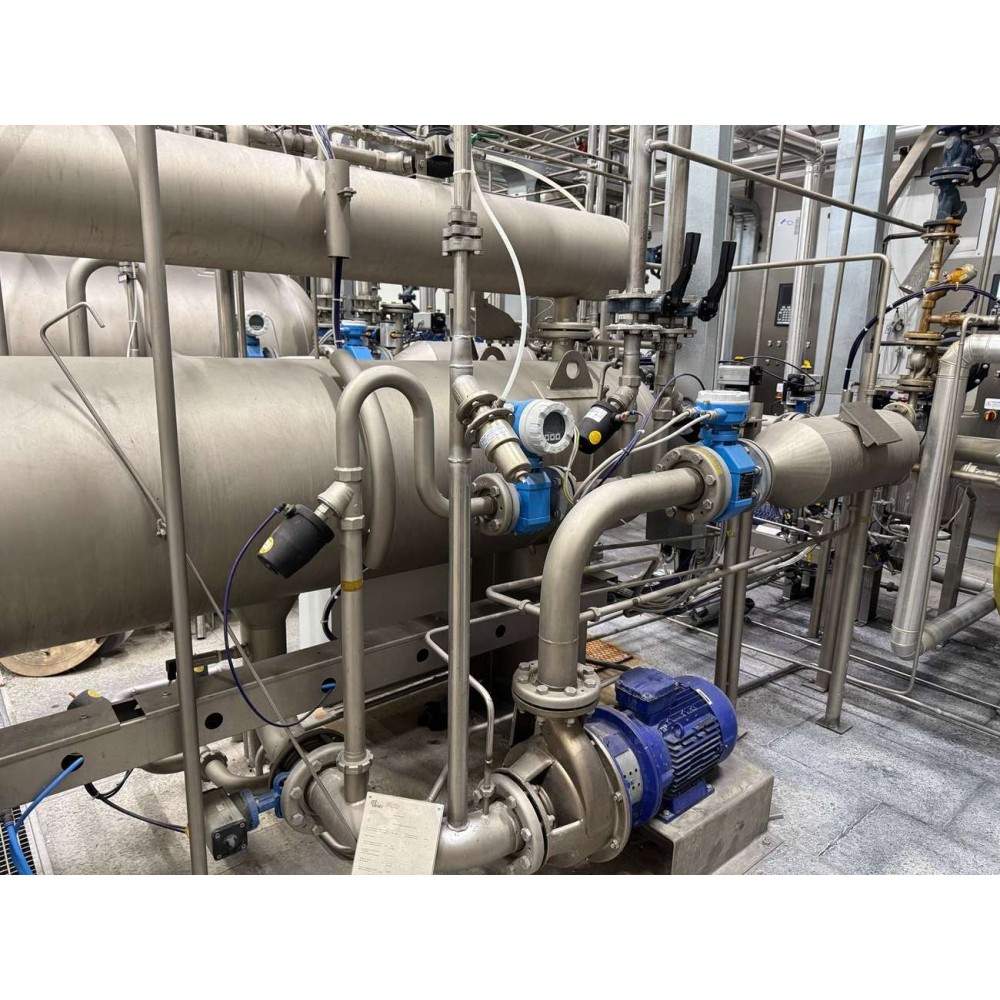

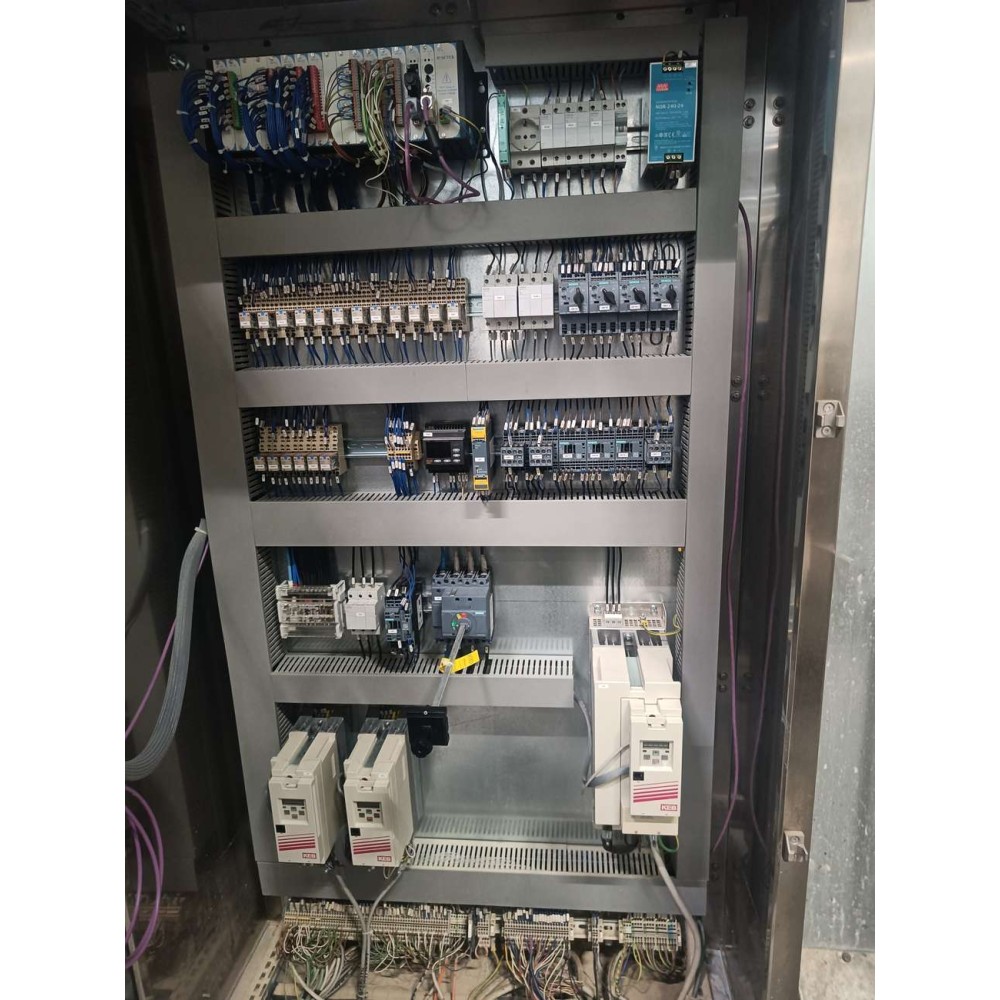

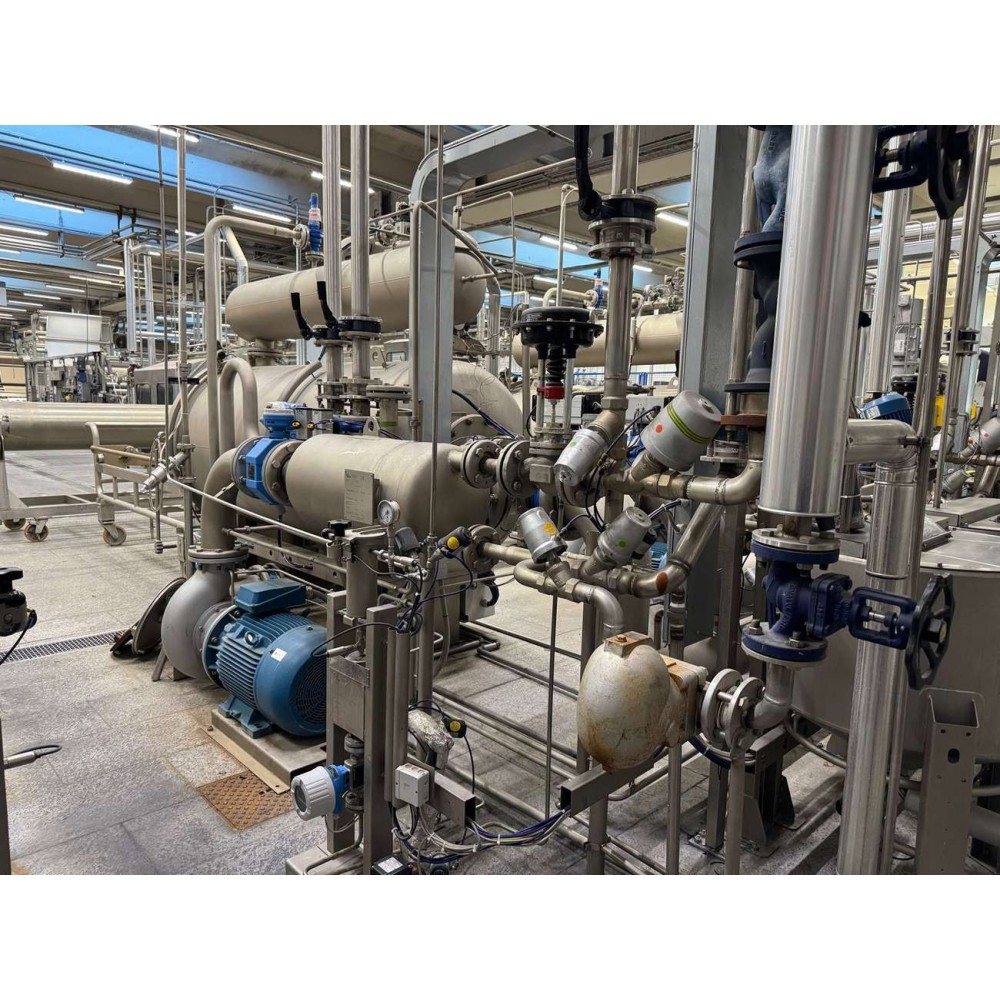

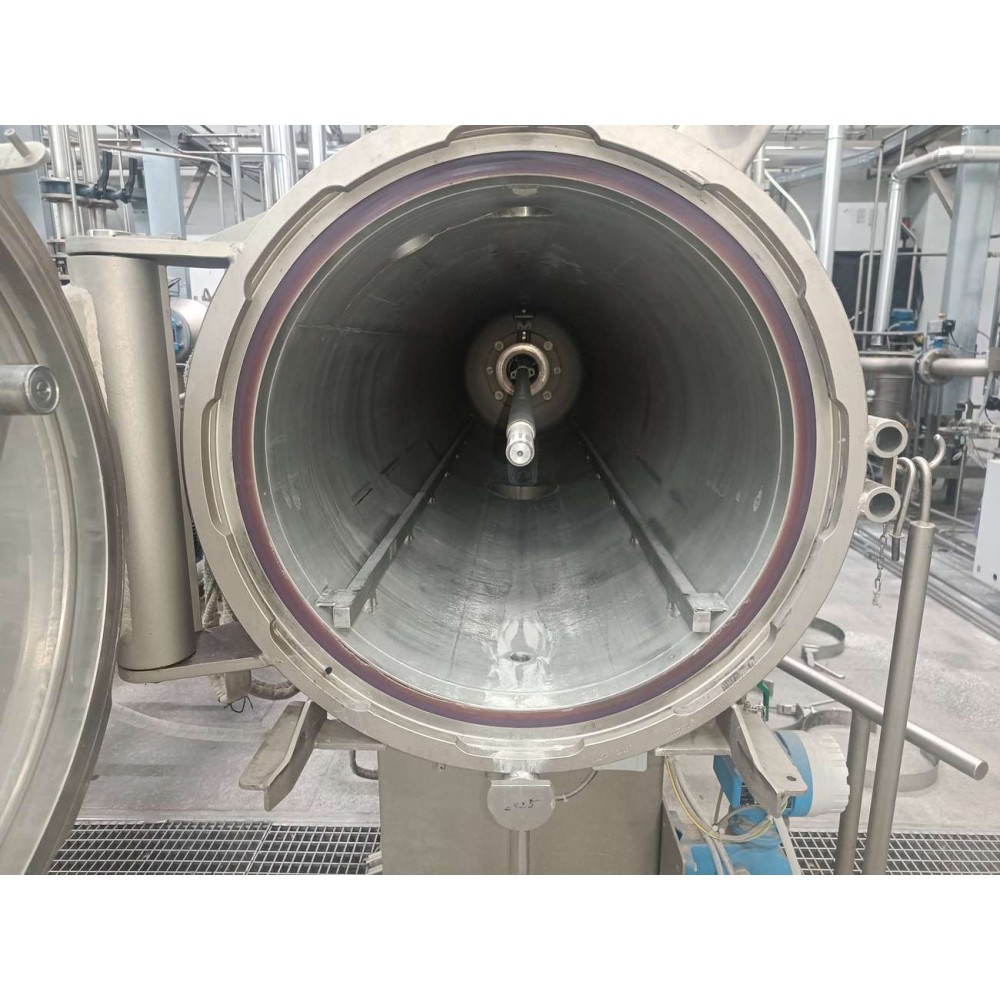

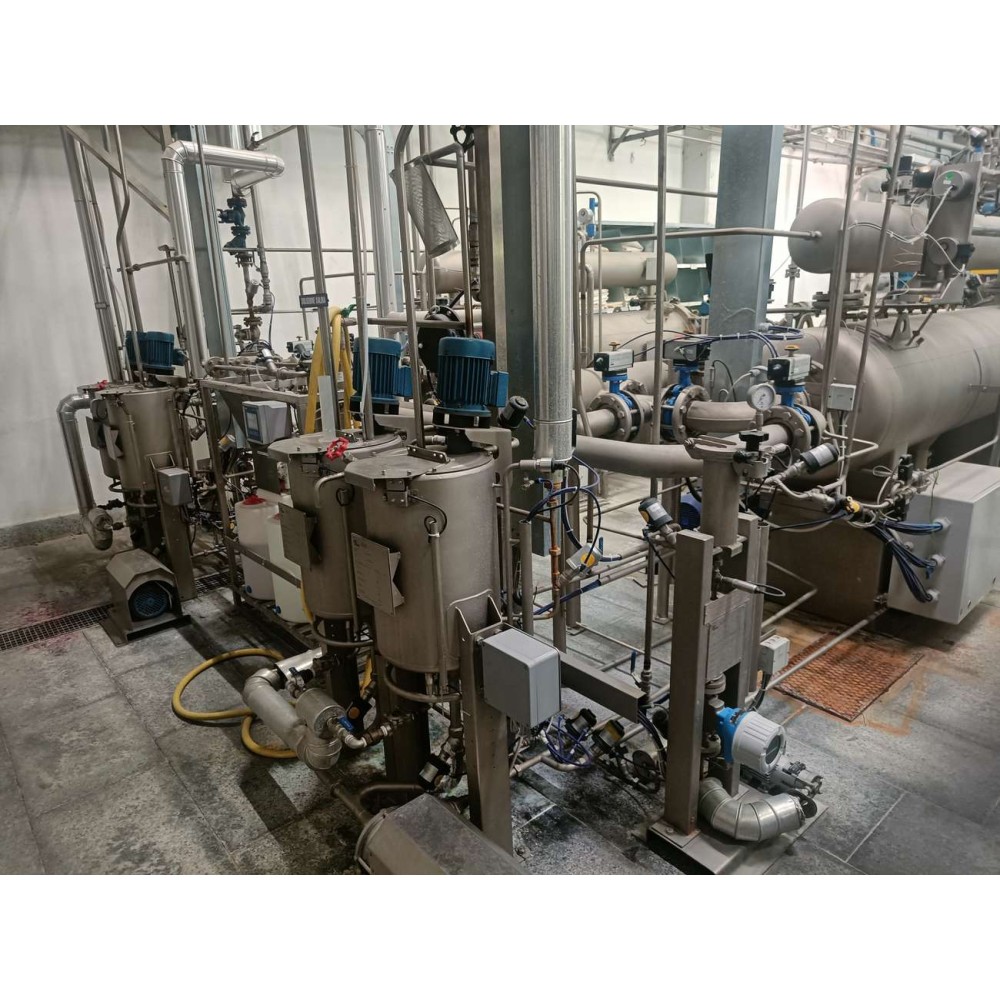

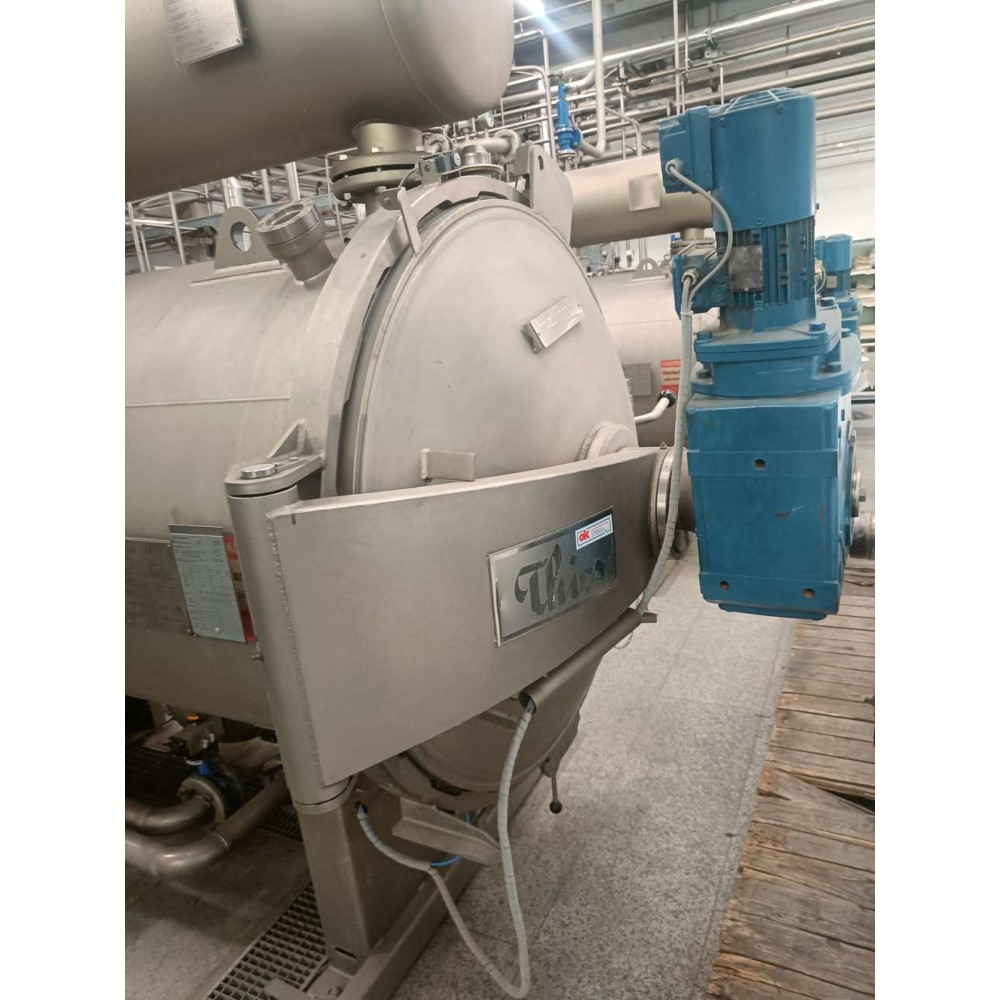

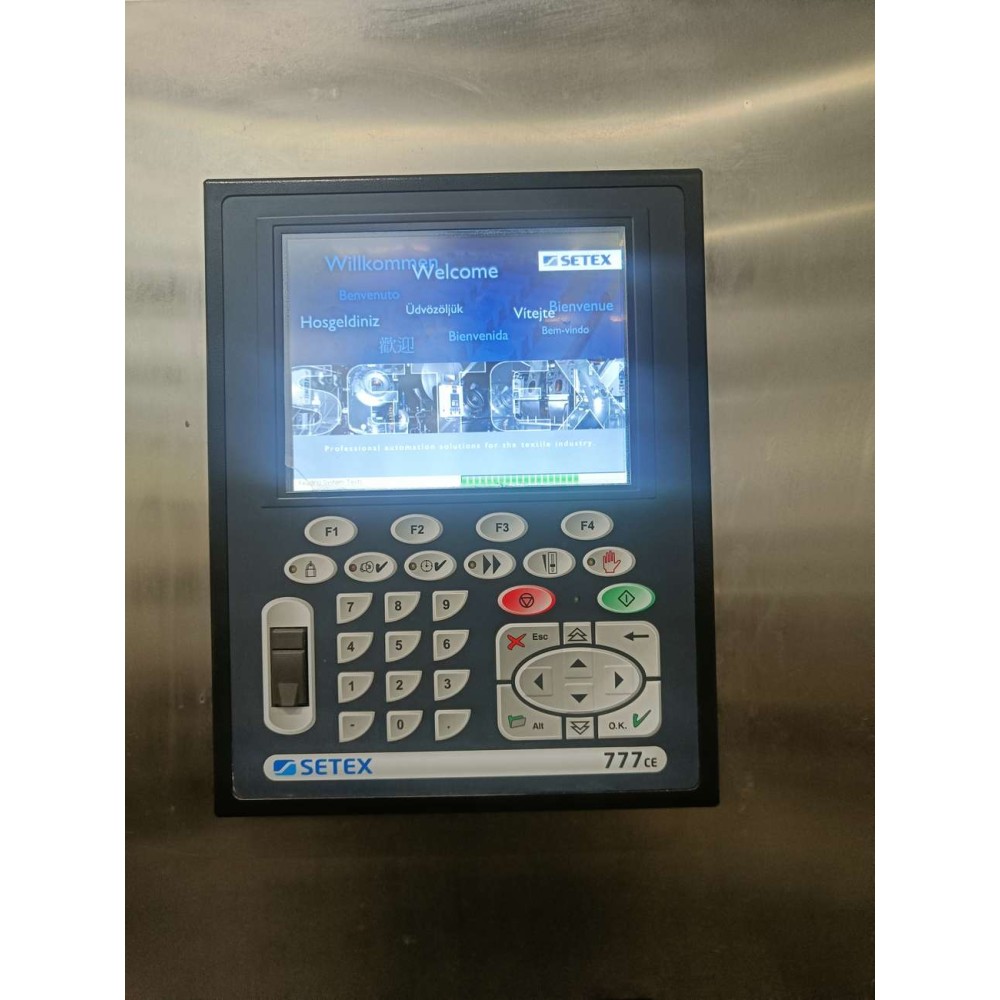

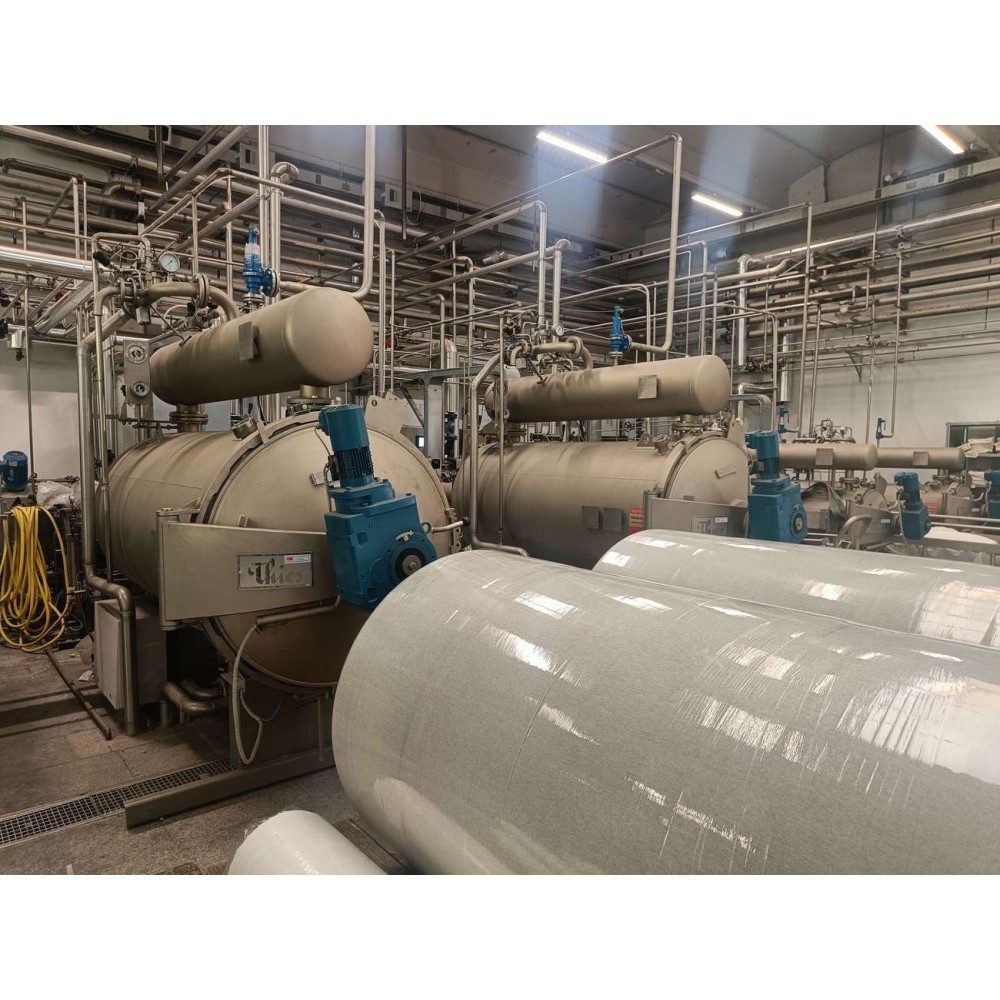

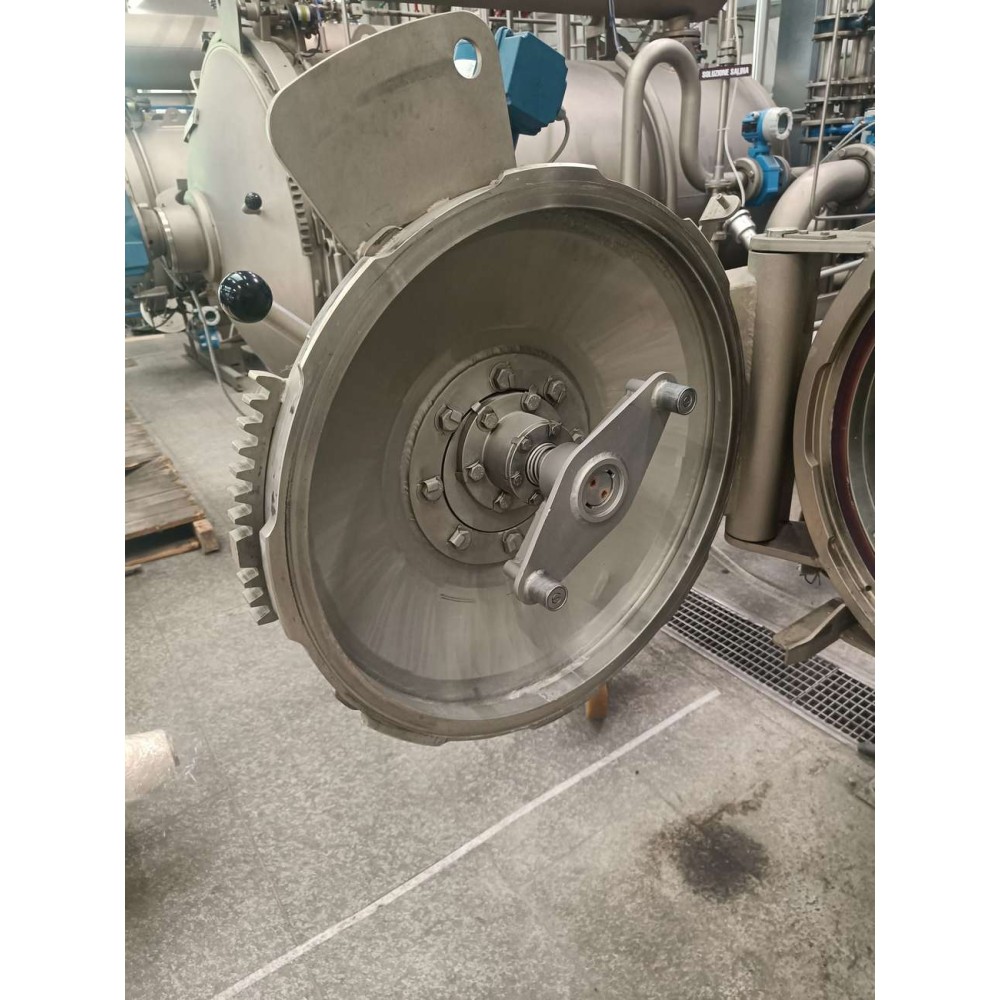

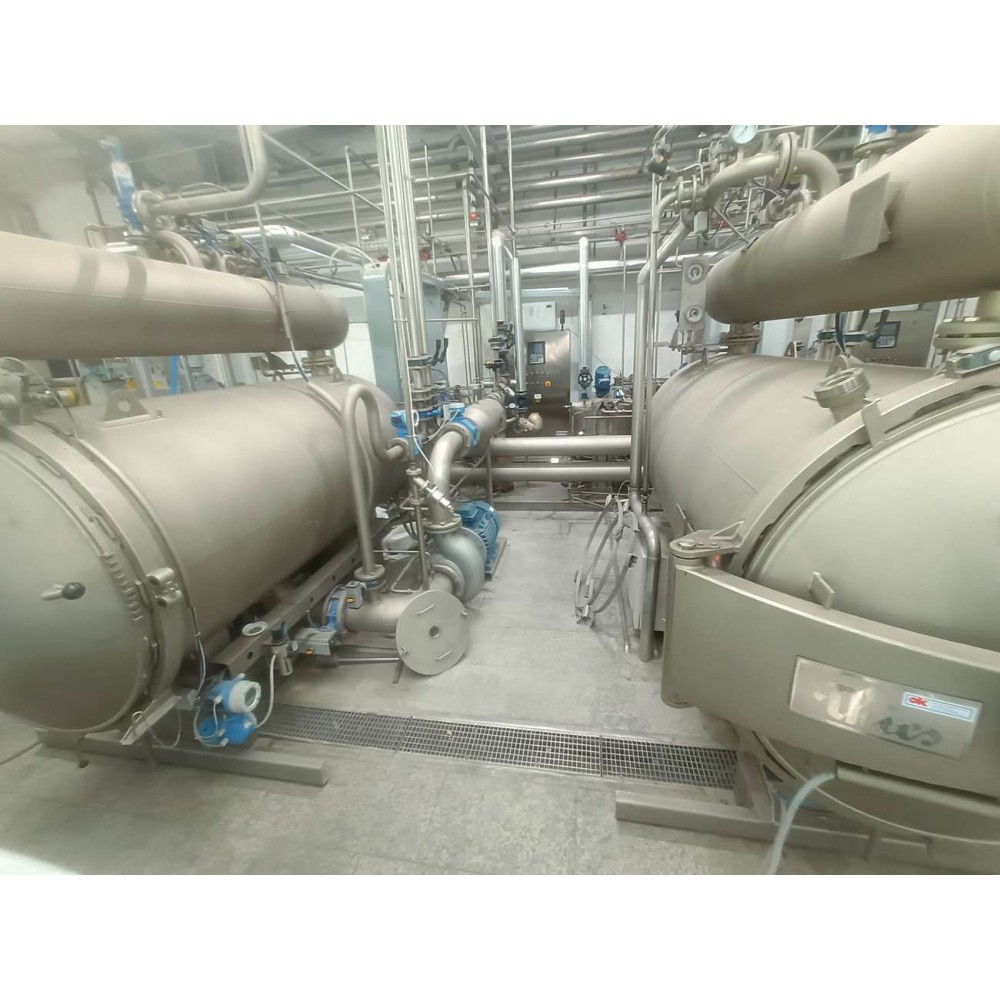

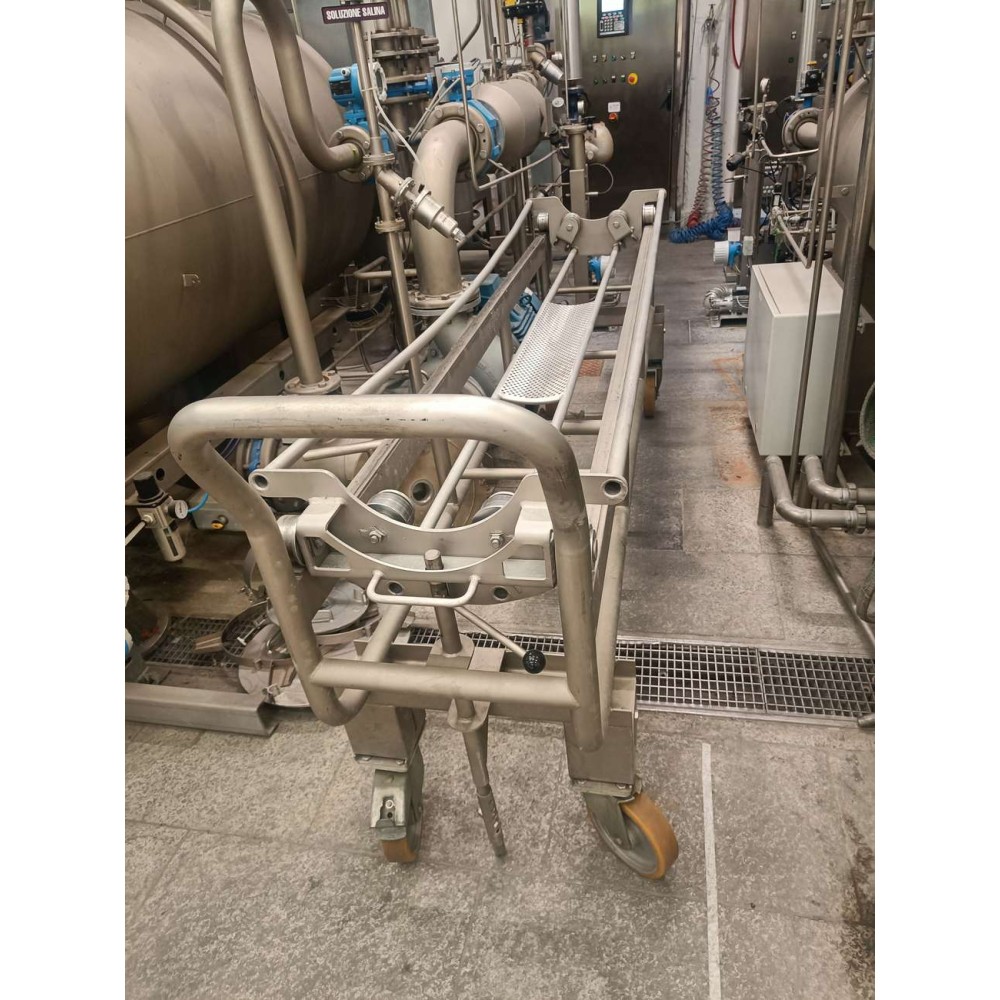

THIES beam dyeing plant 2021 - Plant composed of N. 2 beam dyeing machines with a capacity of 50 kg each, N. 2 beam dyeing machines with a capacity of 300 kg each, N. 1 THIES HP-BATCHER, dye beams, dye beam carts and accessories - Manufacturer: THIES - Year of construction: 2021 - Complete plant for HT open-width beam dyeing of woven fabrics - Number of beam dyeing machines: 4 - N. 2 THIES HT BEAM TYPE 600/1X2000 machines, capacity approx. 50 kg each - N. 2 THIES HT BEAM TYPE 1150/1X2000 machines, capacity approx. 300 kg each - Beam length: 2200 mm - Useful fabric width: 2000 mm - Maximum operating temperature: 140 °C - SETEX 777 color controllers - Each machine equipped with N. 2 tanks with electric agitator for chemicals and dyes - N. 2 stainless steel electrical panels for each pair of machines - Dye beams with diameters of 300 mm, 500 mm and 800 mm, with inside sleeves - Binding stars, external sleeves, dye beam carts and transport carts - N. 1 THIES HP-BATCHER for winding dry woven fabrics onto dye beams - THIES HP-BATCHER maximum dry capacity: 500 kg - THIES HP-BATCHER maximum fabric width: 2000 mm - Maximum entry batch diameter: 1350 mm - Speed up to 80 m/min - THIES HP-BATCHER controlled by PLC with touchscreen terminal and SETEX T646 controller - Padder THIES HP-BATCHER with hot-water tank for fabric wetting - THIES safety package with safety fence and light barriers - The complete plant is sold as one lot - Machine condition: excellent, like new
