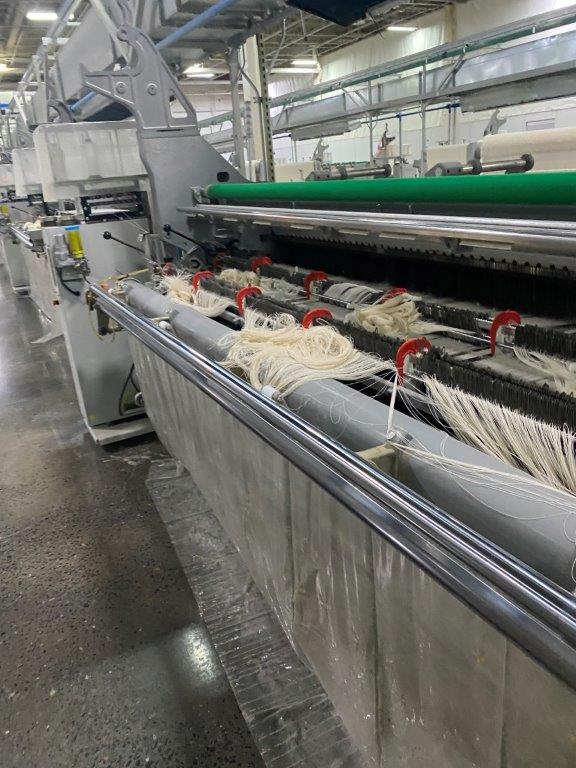

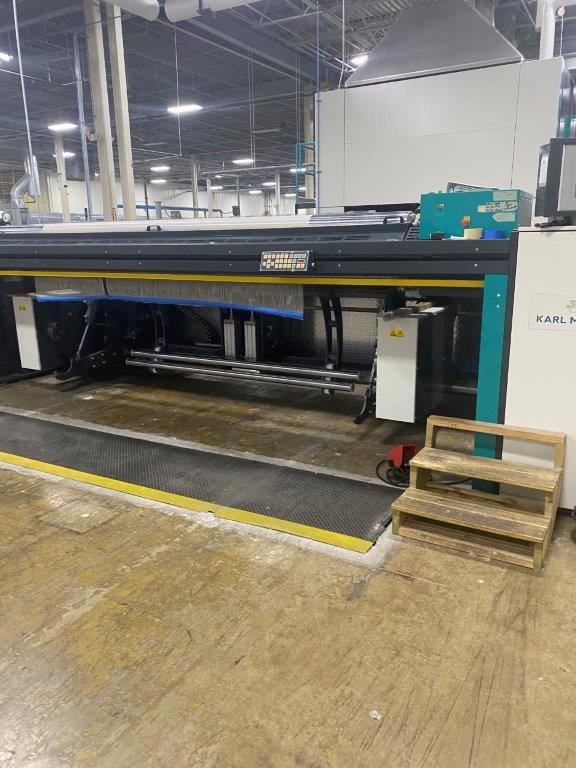

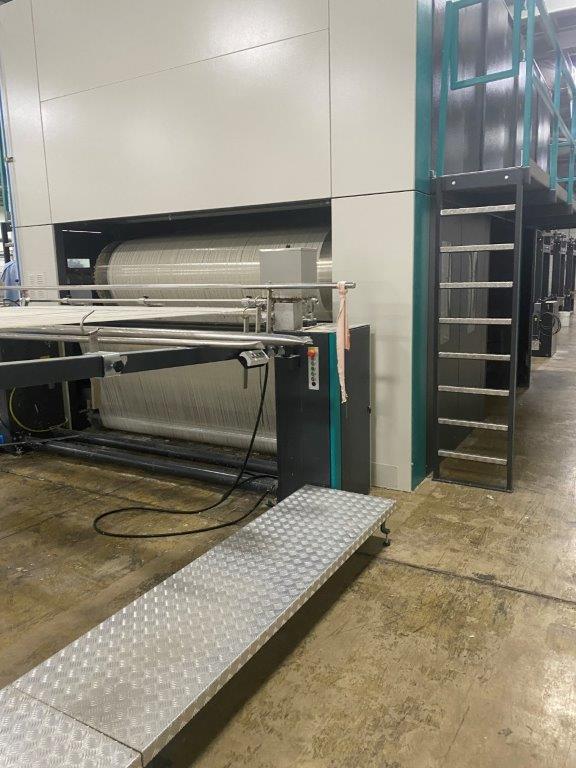

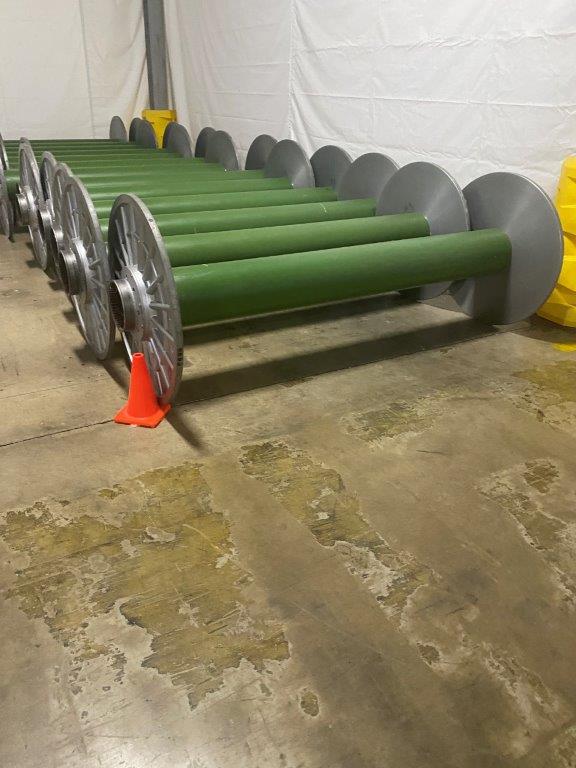

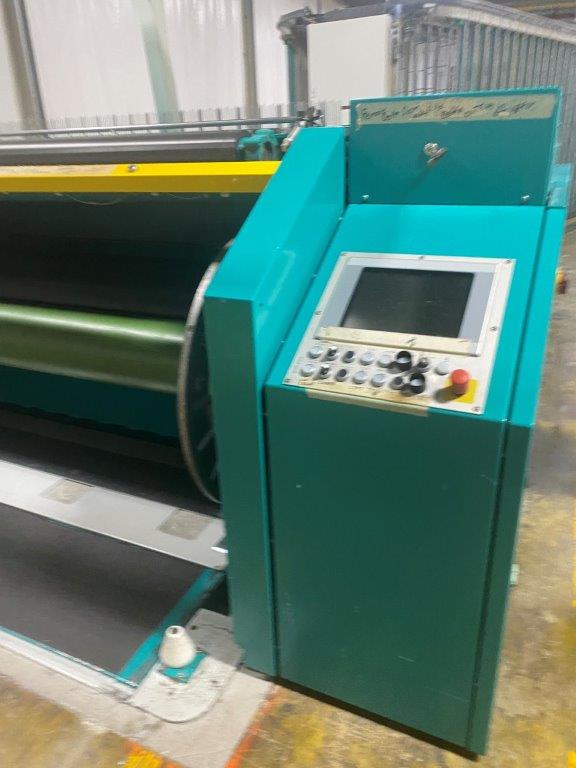

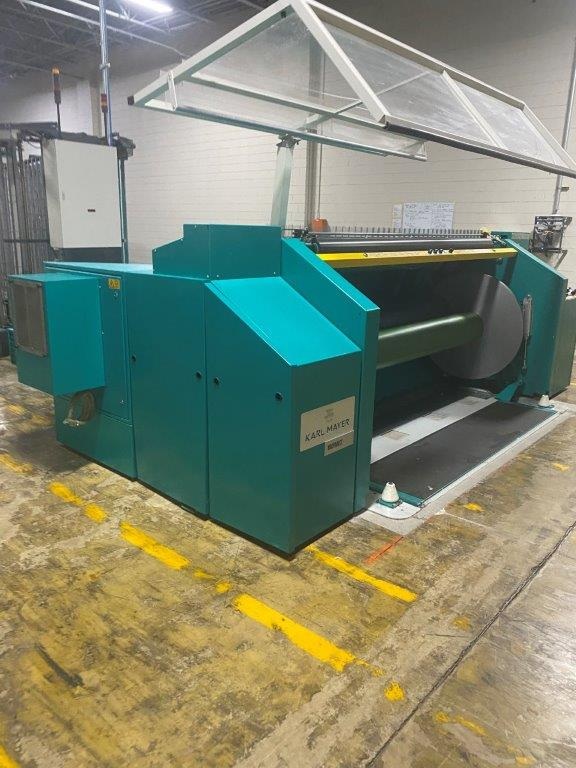

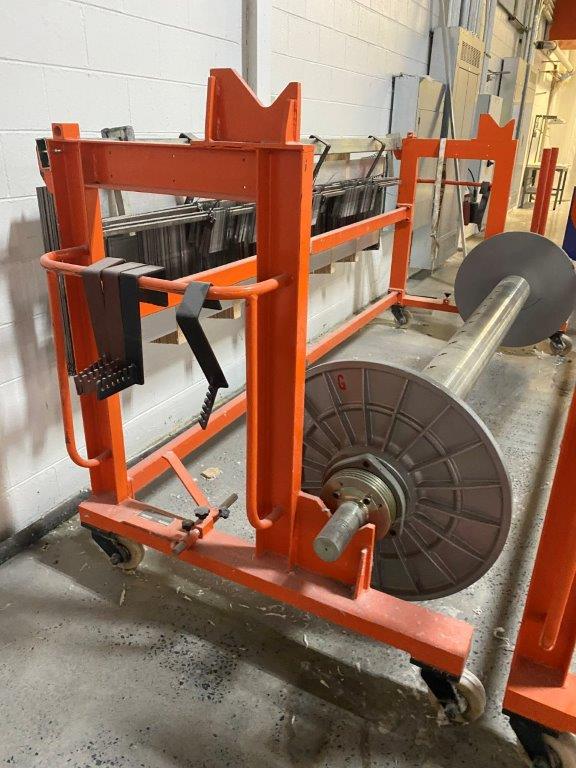

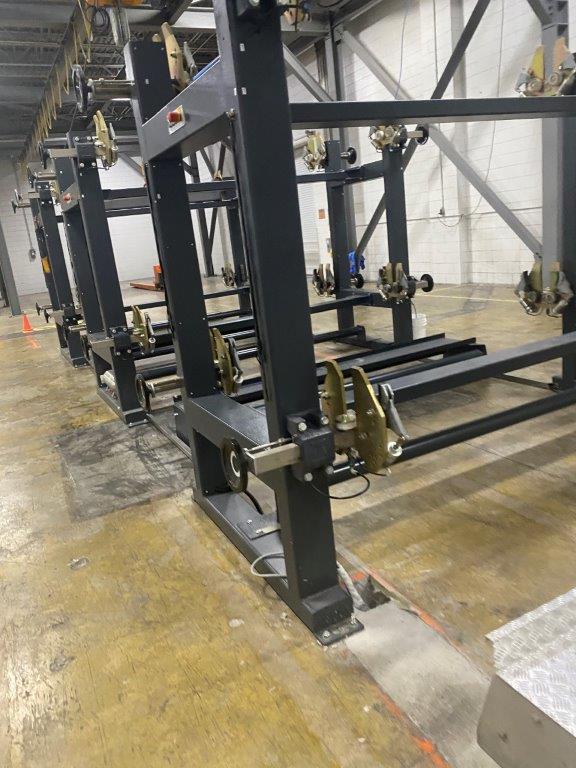

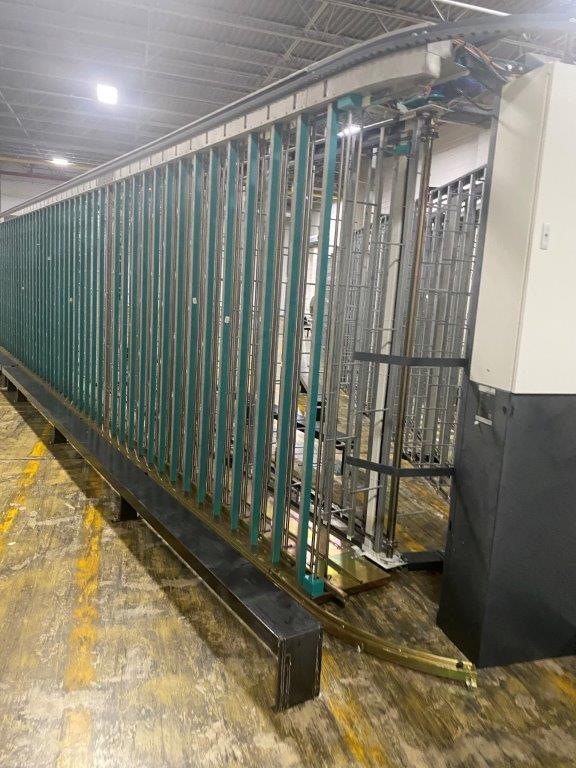

TERRY TOWEL WEAVING - DYEING & AUTOMATIC STITCHING PLANT (Complete) available for immediate sale, subject to prior sale: WARPING 1 KARL MAYER DIRECT WARPER Model Warp Direct 2400/1250 Year of Manufacture 2018 2400mm Warping Width 1250mm Maximum Flange Diameter Zig Zag Reed Perspex fly screen Tag# 62892 With 1 KARL MAYER VEE CREEL Model Creel Year of Manufacture 2018 650 Running ends Automatic Cutter With Mayer GV Tensionners Inside loading Outside Discharge 5 Packages high Packages at 17inch vertical and 10 inch horizontal off set centers Tag# 32893 36 SECTION BEAMS 2400MM X 1000MM DIAMETER With cone splined drive ends Tag# 62894 1 TANGSHI CONE TO CONE RE-WINDER Model Year of Manufacture 2018 60 positions Double sided 30 positions each side 6 position per section x 5 sections 6 inch traverse with grooved drums 4 deg 20- cone angle Individual motor drive to each spindle 3 position Tension discs End Breakage Overhead travelling blower Tag# 62895 SLASHER SIZING 1 KARL MAYER SIZING MACHINE Model Pro-Size Year of Manufacture 2018 12 Beam Creel with Pneumatic braking 2400mm warp width, 1250mm flange diameter With Beam to Beam repair stand Karl Mayer Pro-Size Vertical Sizing Unit Model VSB With 8 Drying Cylinder Cans 240cm working width Final drying on 8 Cylinder cans 16 Drying cans total Warp splitting section for 6 splits Karl Mayer Beaming Headway 3.8 meter maximum Warp width 1250mm Maximum Beam diameter Tag# 62896 1 KARL MAYER SIZE KITCHEN 1 Stainless Steel Size Cooking Vessel - 500 Gallon- Tag# 62897 1 Stainless Steel Size Storage Vessel - 750 Gallon 1 3 TON MECHANICAL CHAIN HOIST Tag# 62898 WEAVING 24 TOYOTA AIR JET TERRY LOOMS Model JAT810 Year of Manufacture 2018 Type JA4T-280DE-EH-T810 280cm weaving width 4 color Staubli dobby Model S3222 e3 DRC 20 Shaft Capacity 20 levers installed Neuenhauser off loom take up with inspection Leno selvedges 2 row Ground and 2 row pile warp stop motion Each loom installed with 1.5 Ground beam 800mm diameter 1.5 Pile Beam 1250mm diameter 16 Harness frames 4 weft feeders 1 Weft creel stand 2 Row Pile Warp stop motion 2 Row Ground warp stop motion 1 Neuenhauser Batcher 1 COMPLETE LUWA OVERHEAD TRAVELLING BLOWERS 4 Blower Heads Each With Tracking covering 6 Looms 280cm Year of Manufacture 2018 Tag# 62907 1 GROZ-BECKEART WARP TYING HEAD Model Knot Master Year of Manufacture 2018 Type AS/3 Sheet to sheet With spare knotting cartridge in transport trolley Tag#62597 1 WARP TYING FRAME Year of Manufacture 2018 3000mm brush length Tag# 62598 BEAM HANDLING 2 WUXI XJANDA BEAM STORAGE RACKS Year of Manufacture 2018 2 tier - Motorized beam retrieval 25 Beams each rack Beam Hangers - Max weight 1500KG Max beam length 300cm Max flange diameter 1250mm Overall height 24 feet Tag# 62899 3 WUXI XJANDA BEAM PALLET TRUCKS Model XD-1200T Year of Manufacture 2018 Hydraulic Beam forks 280cm Max 1200mm beam diameter Tag# 62901, 62904, 62906 1 WUXI XJANDA BEAM PALLET TRUCKS Model XD-1250T Year of Manufacture 2018 Hydraulic Beam forks 280cm Max 1250mm beam diameter Tag# 62900 5 WUXI XJANDA BEAM PALLET TRUCKS Model XYJC-1500 Year of Manufacture 2018 Hydraulic Beam forks 280cm Max 1250mm beam diameter Tag# 62908, 62970, 62971, 62972, 62973 2 WUXI XJANDA BEAM PALLET TRUCKS Model XD-2500 ET Year of Manufacture 2018 Hydraulic Beam forks 280cm Max 2500mm beam diameter Tag# 62913, 62914 1 WUXI XJANDA BEAM PALLET TRUCK w/CHARGER Model XD-1000 B Year of Manufacture 2018 Manual Tag#62963 DYEING 1 THIES I-MASTER JET DYE MACHINE Model i-Master F. Type 140/4 Year of Manufacture 2019 4 Port - 1600 kg Capacity 200mm diameter nozzle for Terry With expansion tank With 2 Dye preparation Tanks With Heat exchanger Winch and operator stand Setex controller Tag#62919 3 THIES I-MASTER JET DYE MACHINES Model i-Master F. Type 140/2 Year of Manufacture 2018 (2) Year of Manufacture 2019 (1) 2 Port - 800 kg Capacity 200mm diameter nozzle for Terry With expansion tank With 2 Dye preparation Tanks With Heat exchanger Winch and operator stand Setex controller Tag# 62920, 62921, 62922 1 THIES I-MASTER JET DYE MACHINE Model i-Master F. Type 140/1 Year of Manufacture 2018 1 Port - 400 kg Capacity 200mm diameter nozzle for Terry With expansion tank With 2 Dye preparation Tanks With Heat exchanger Winch and operator stand Setex controller Tag# 62923 1 THIES I-MASTER JET DYE MACHINE Model i-Master mini F. Type 140/1 Year of Manufacture 2018 1 Port - Sample Machine - 80kg capacity 200mm diameter nozzle for Terry With expansion tank With 2 Dye preparation Tanks With Heat exchanger Winch and operator stand Setex controller Tag# 62924 1 THIES CHEMICAL DISPENSING SYSTEM Year of Manufacture 2018 With 20 Tanks Tag# 63003 1 THIES DYE DISSOLVER Type MPS-D600L Year of Manufacture 2018 With Hot water tank Control scales Tag# 63002 STITCHING 1 TEXPA LENGTH CUTTER/SLITTER Type 109 Year of Manufacture 2018 Volts: 277/480 60Hz Tag# 63004 2 TEXPA LENGTH HEMMERS Type Terry Length 120 Year of Manufacture 2018 With (2) Pegasus Double lock stitch hemmers Tag# 62931, 63933 2 TEXPA AUTOMATIC CROSS CUTTER & LABELLING Model Type 132 Year of Manufacture 2018 With (2) Pfaff double lock stitch hemmers With Tag# 62932, 62934 1 TEXPA FOLDING MACHINE Model APD3/2 Folder Year of Manufacture 2018 56 inch table entry 27 inch conveyor exit Tag# 62935 into 1 DM PACK PACKING MACHINE Model Star EVO 1100/T Year of Manufacture 2019 Electric heat bag sealer With Label Printer Tag# 62936 2 JUKI SEWING MACHINES Model DDL 8500 Lock stitch With Table Tag# 62937, 62938 1 METRO SPEZIALE SEWING MACHINE Model MS-8172BFT Lock stitch With table Tag#62939 1 METRO SPEZIALE SEWING MACHINE Model MSU-4150BFT Lock stitch With table Tag# 62949 LABORATORY - Year of Manufacture 2018 1 DARONG EIGHT BASKET THERMOSTAT DRIER Type Y (B) 802G Tag# 62940 1 DARONG ELECTRONIC SINGLE END STRENGTH TESTER Type YG (B) 021DL Tag# 62941 1 G&G ELECTRONIC SCALE Type TC30K-H Tag# 62942 1 DARONG YARN TESTER Type YG (B) 086 Tag# 62944 1 DARONG TESTER Type YB 331C 1 DARONG LAB OVEN Color Fastness to Perspiration Type Y (B) 902 G Tag# 62946 1 BALANCE SCALE Type FA1004 100 Gram 1 DARONG TESTER RUBBING Type YB571-III 1 GRETAG MACBETH LIGHT BOOTH Type Spectralight III 1 DARONG WATER ABSORBTION TESTER 1 DARONG DIGITAL TEARING TESTER Type YG (B) 033B Tag# 62966 1 DARONG DIGITAL FABRIC STRENGTH TESTER Type YG (B) 26SJ Tag# 62952 1 DIGITAL ELECTRONIC BALANCE Model FA B Series Tag# 62947 1 G&G DIGITAL SCALE Tag# 63017 1 DIGITAL TWIST TESTER Model YB 331C Year 2018 Tag# 62945 1 WET & DRY CROCK TESTER RUBBING Model Y (B) 571-11 Tag# 62950 1 ROTARY CROCK TESTER Model Y (B) 571-X Tag# 62951 1 ABSORBANCY TESTER Model Y (B) 813X Year 2018 Tag# 63018 1 WENZHOU LAUNDROMETER Year 2018 Tag# 63019 1 JINGKE HIGH TEMP SAMPLE DYEING MACHINE Year 2018 Tag# 63020 1 BLUE M LAB OVEN Tag#62948 1 JINGHE DYE CONTROLLER Type HG-TC100 If you have any questions regarding this complete factory please contact with us. david@interglobalsa.com, Cel. +17863016060 (Whatsapp) More Pictures upon request.
