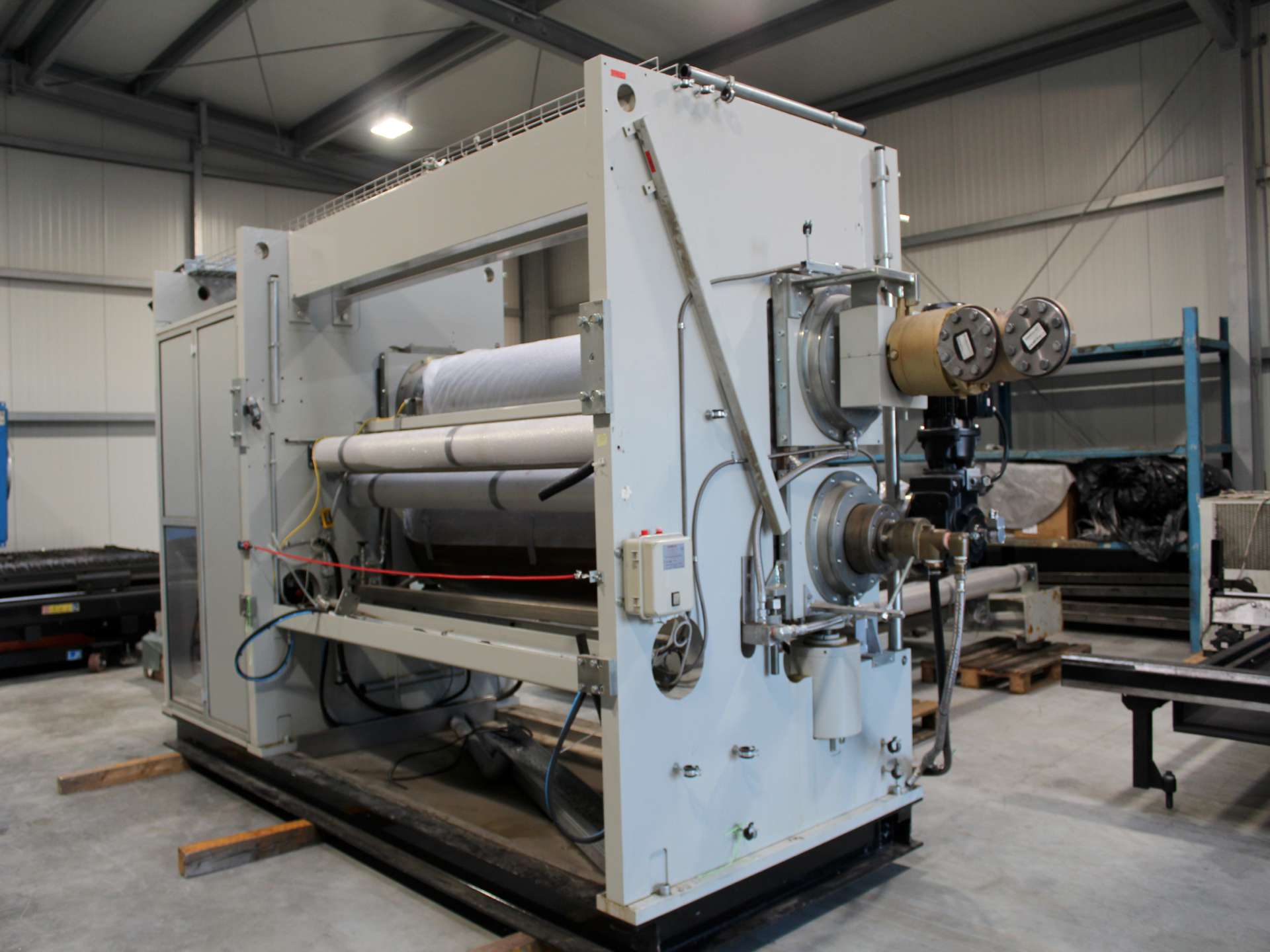

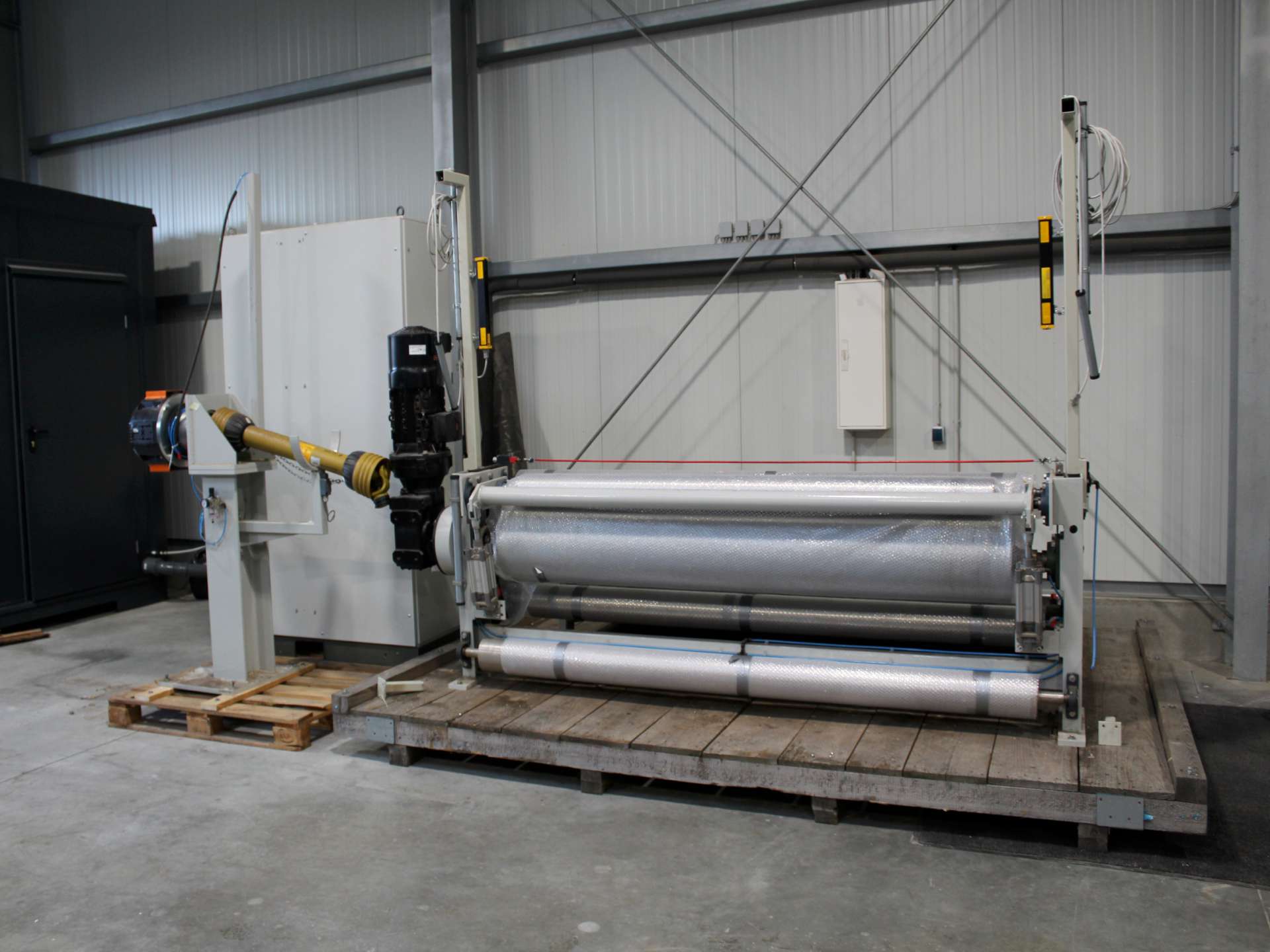

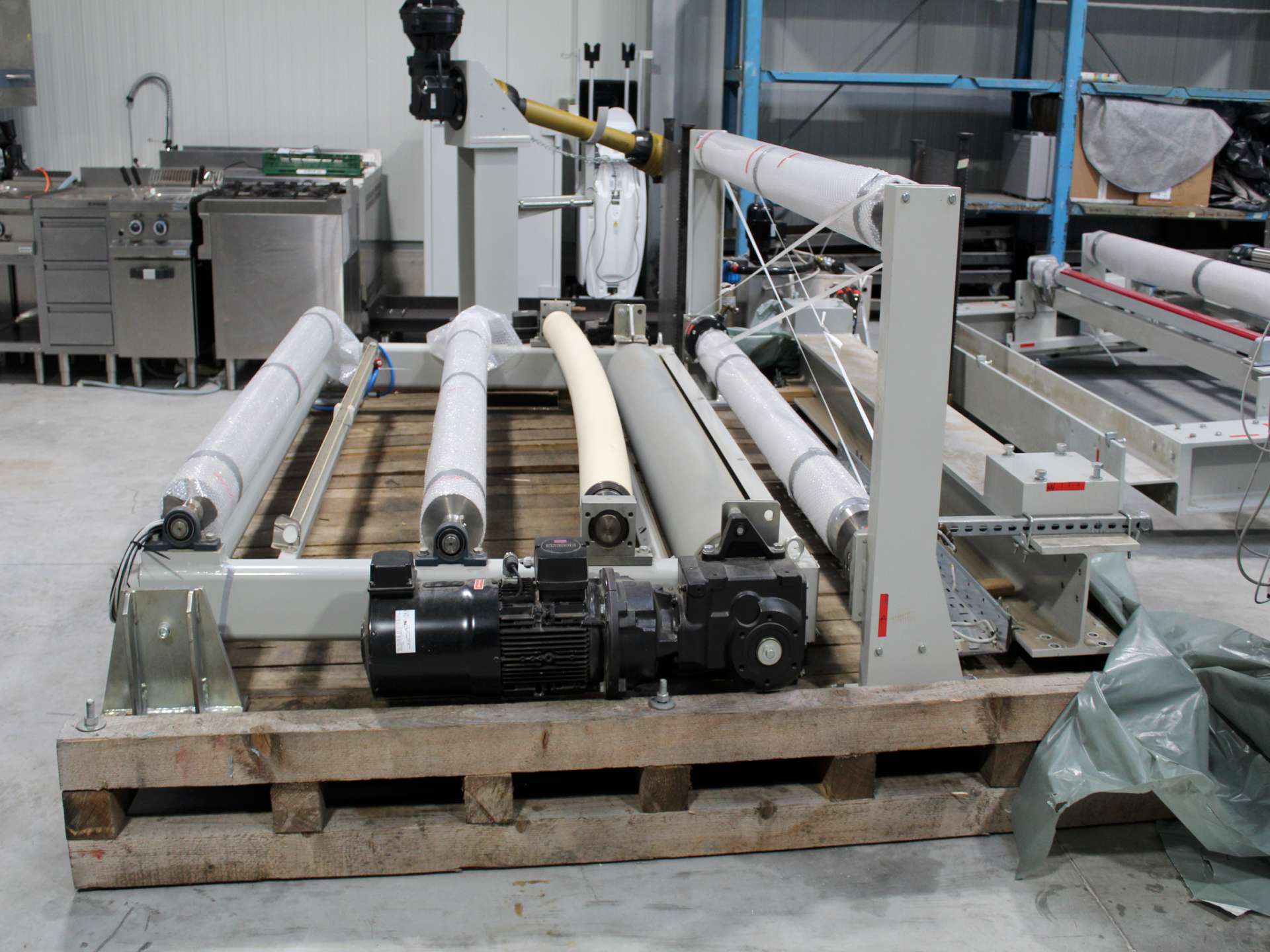

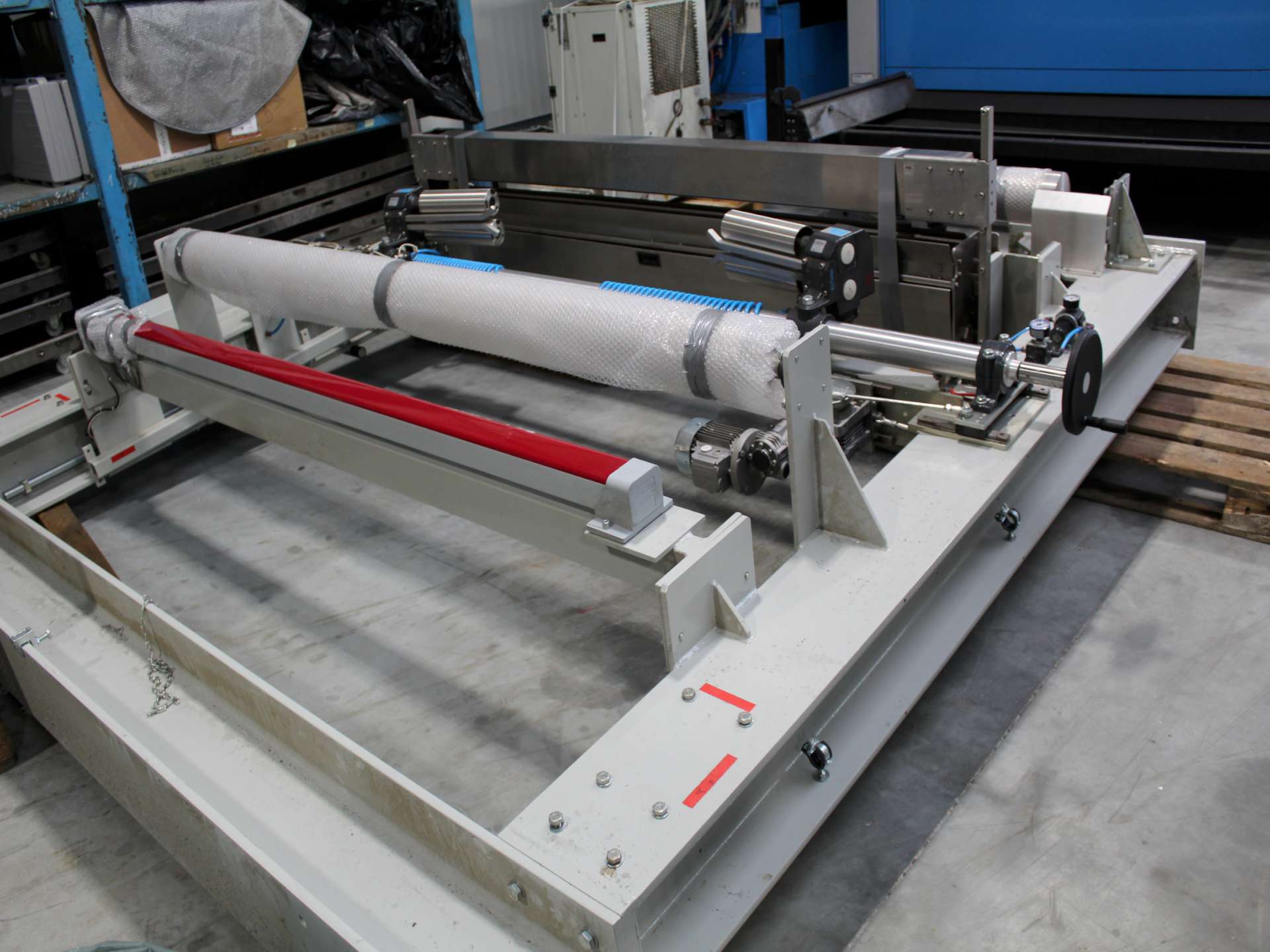

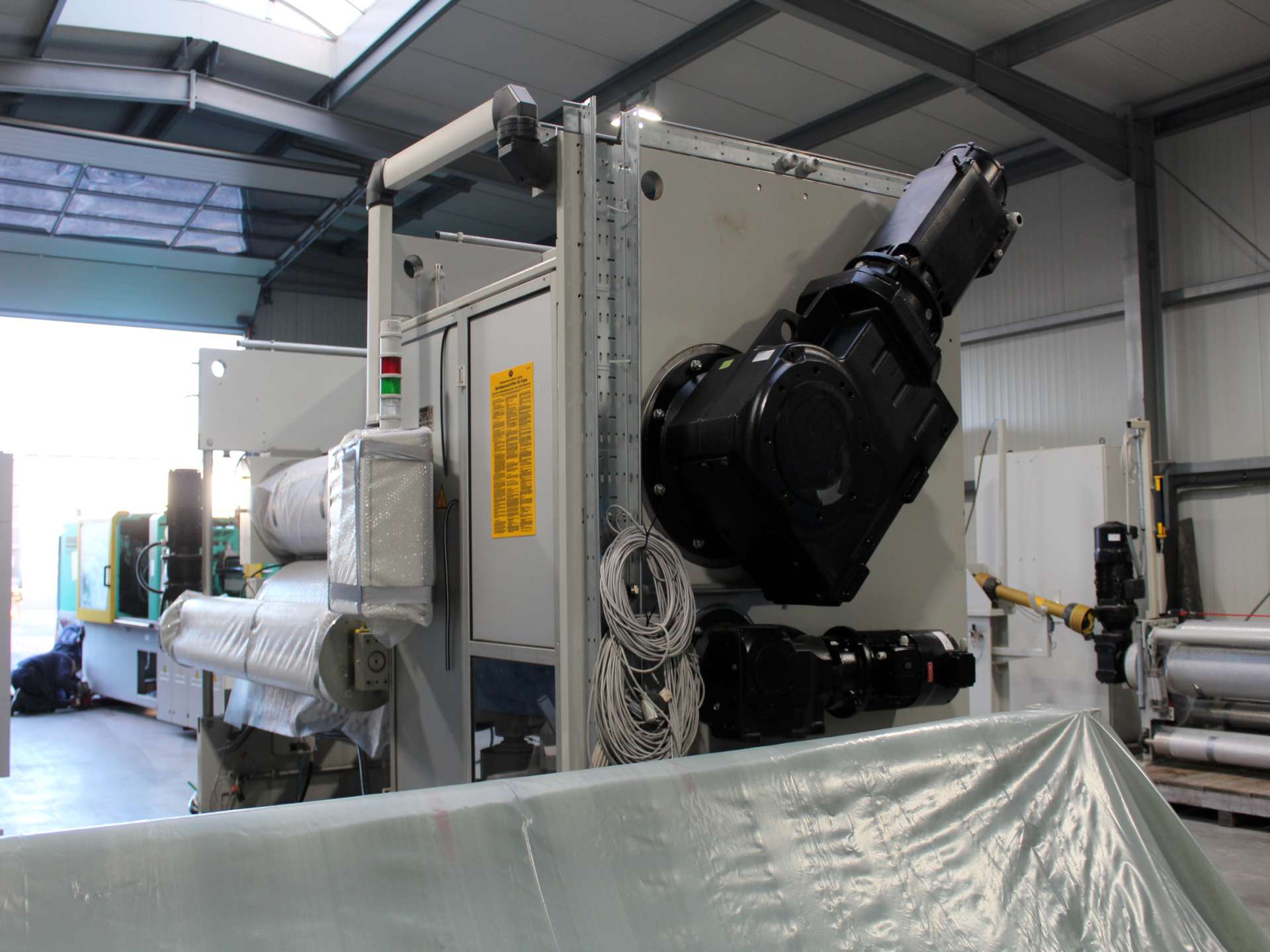

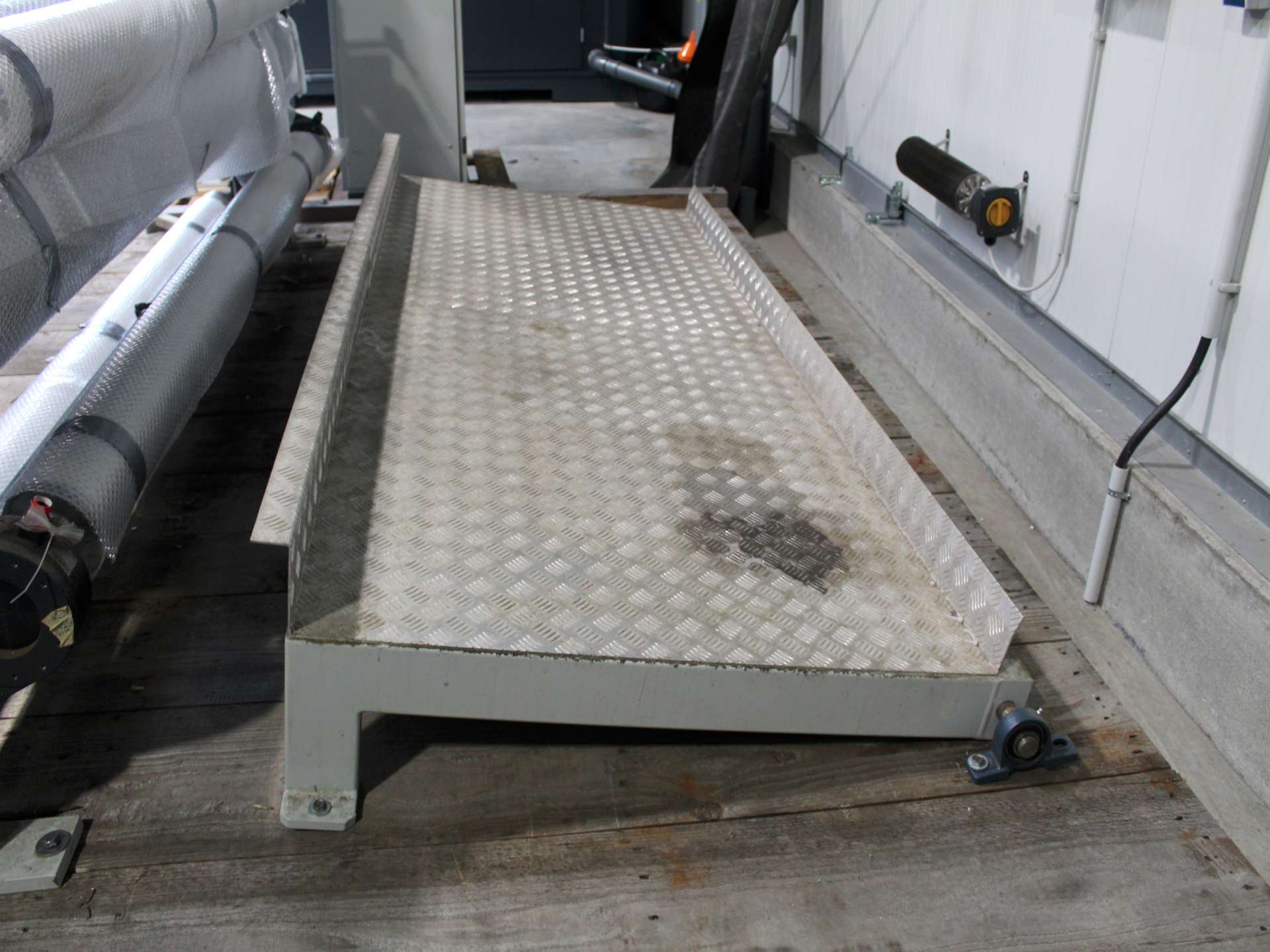

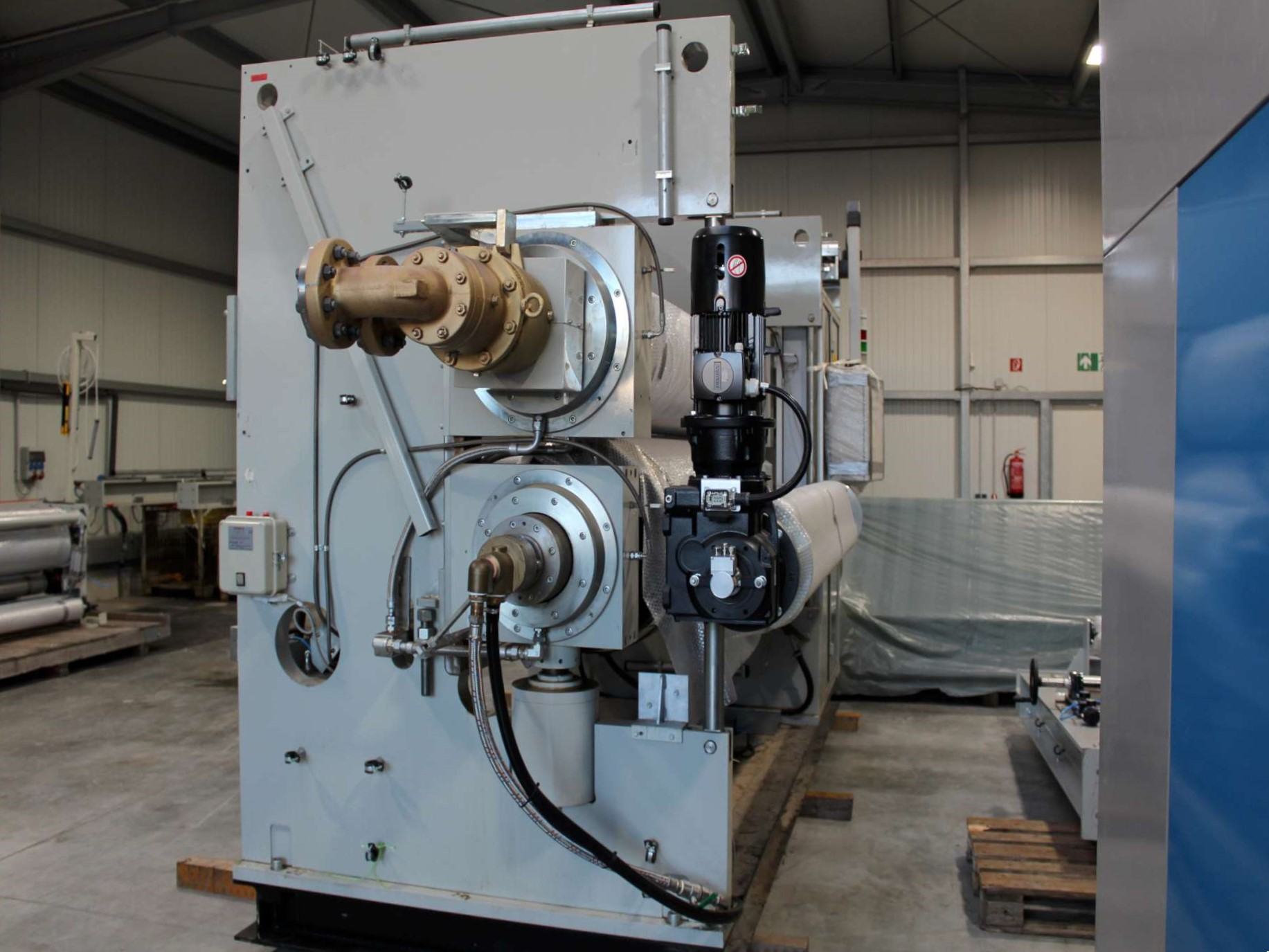

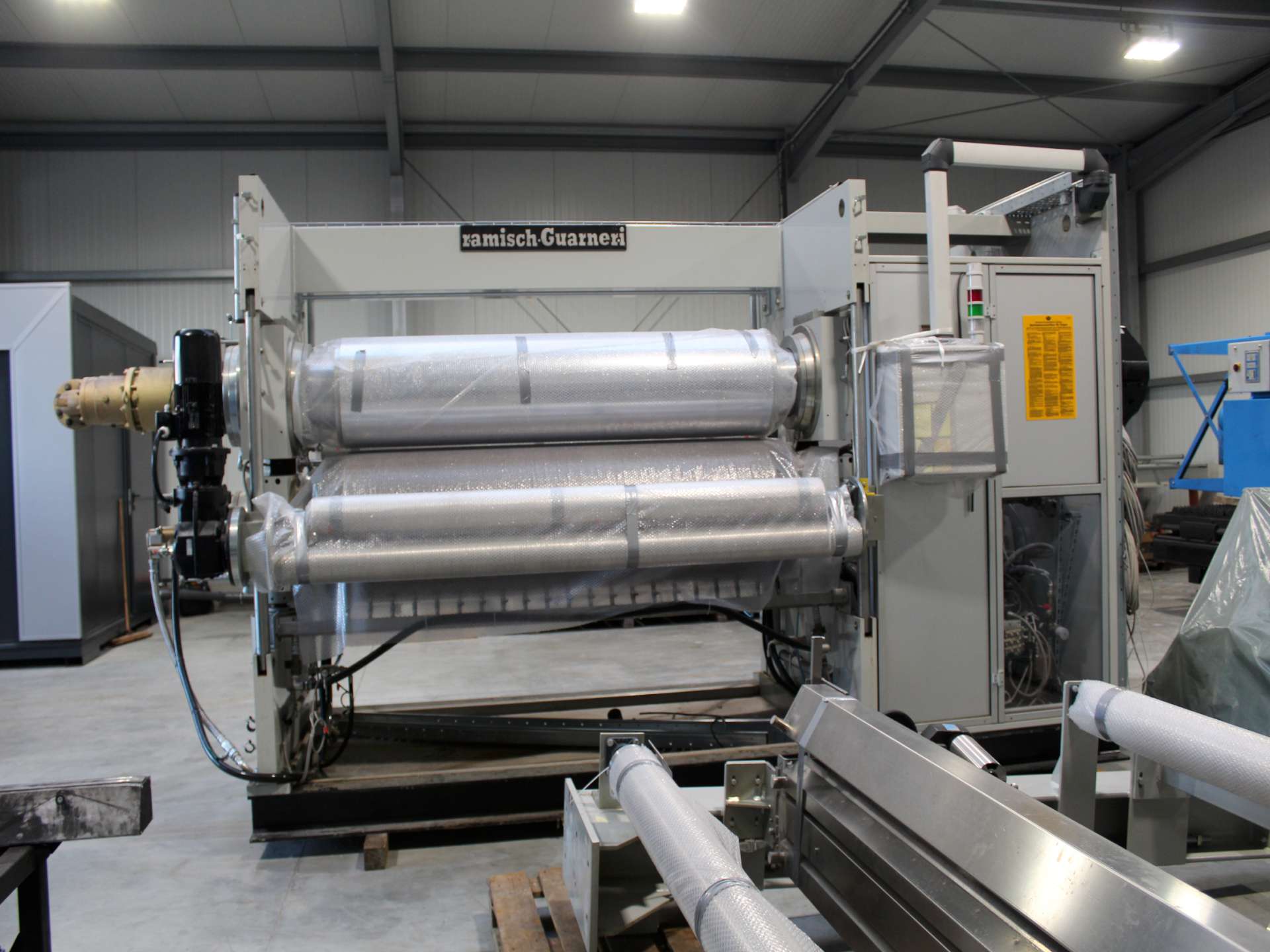

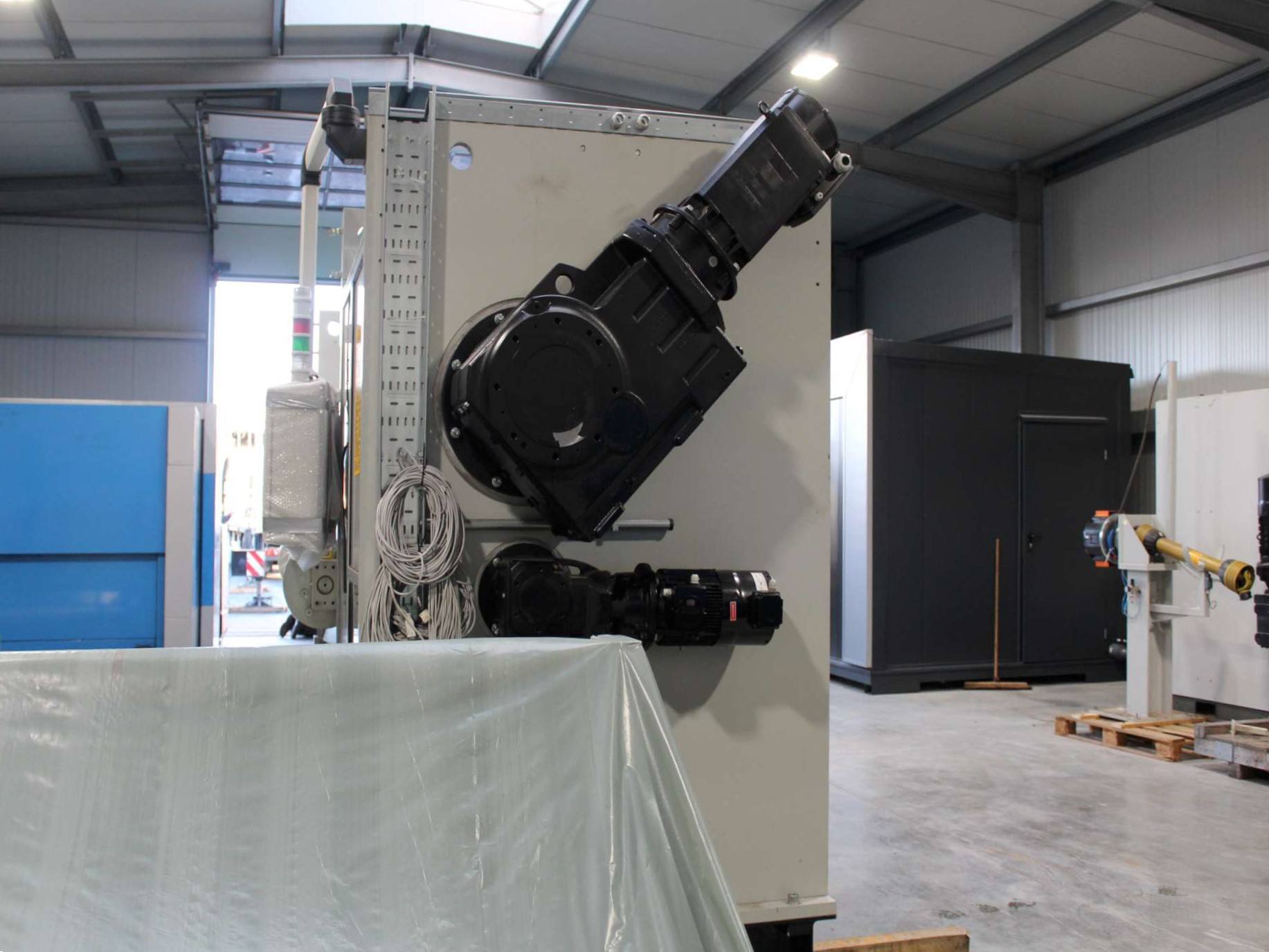

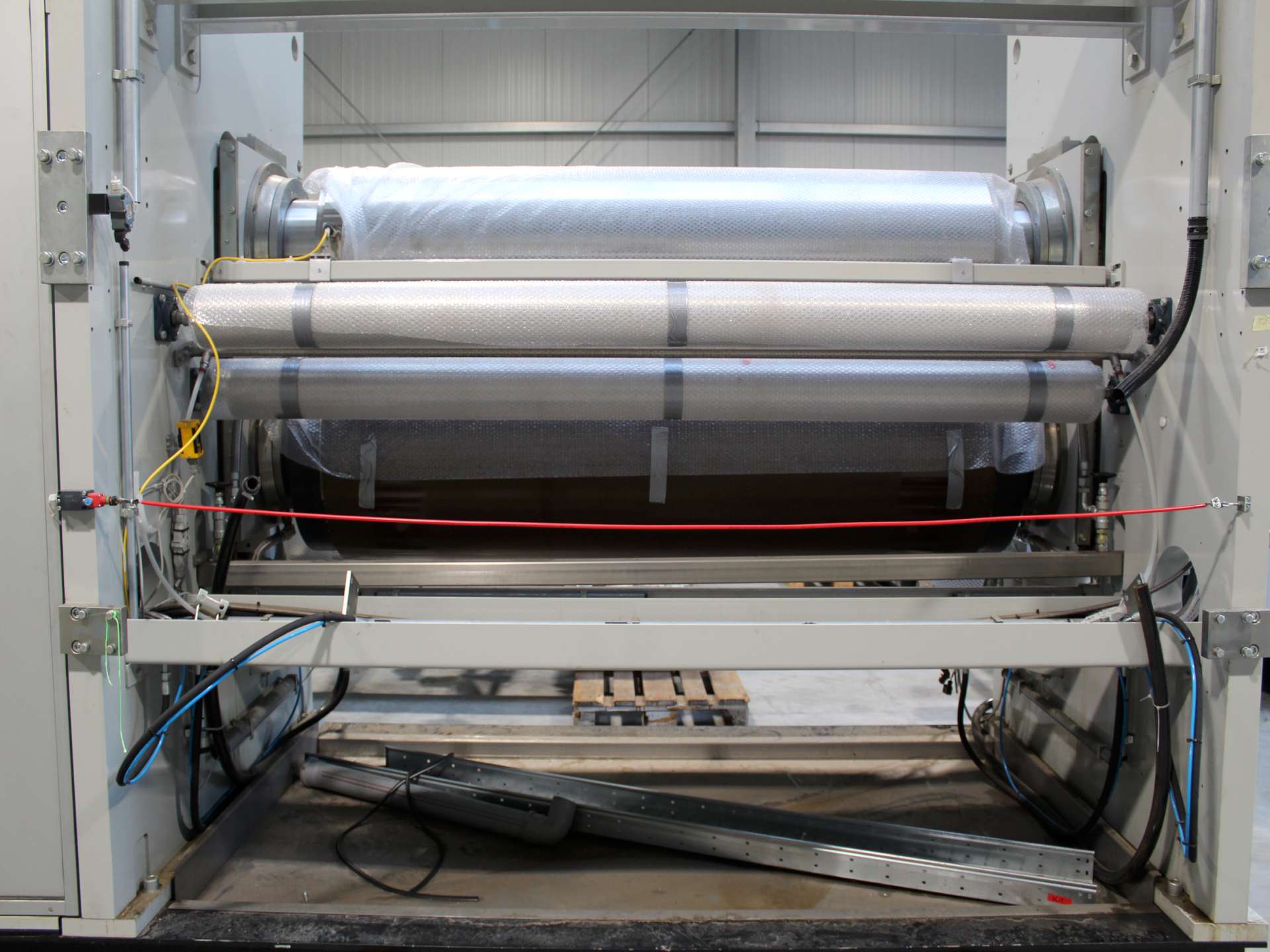

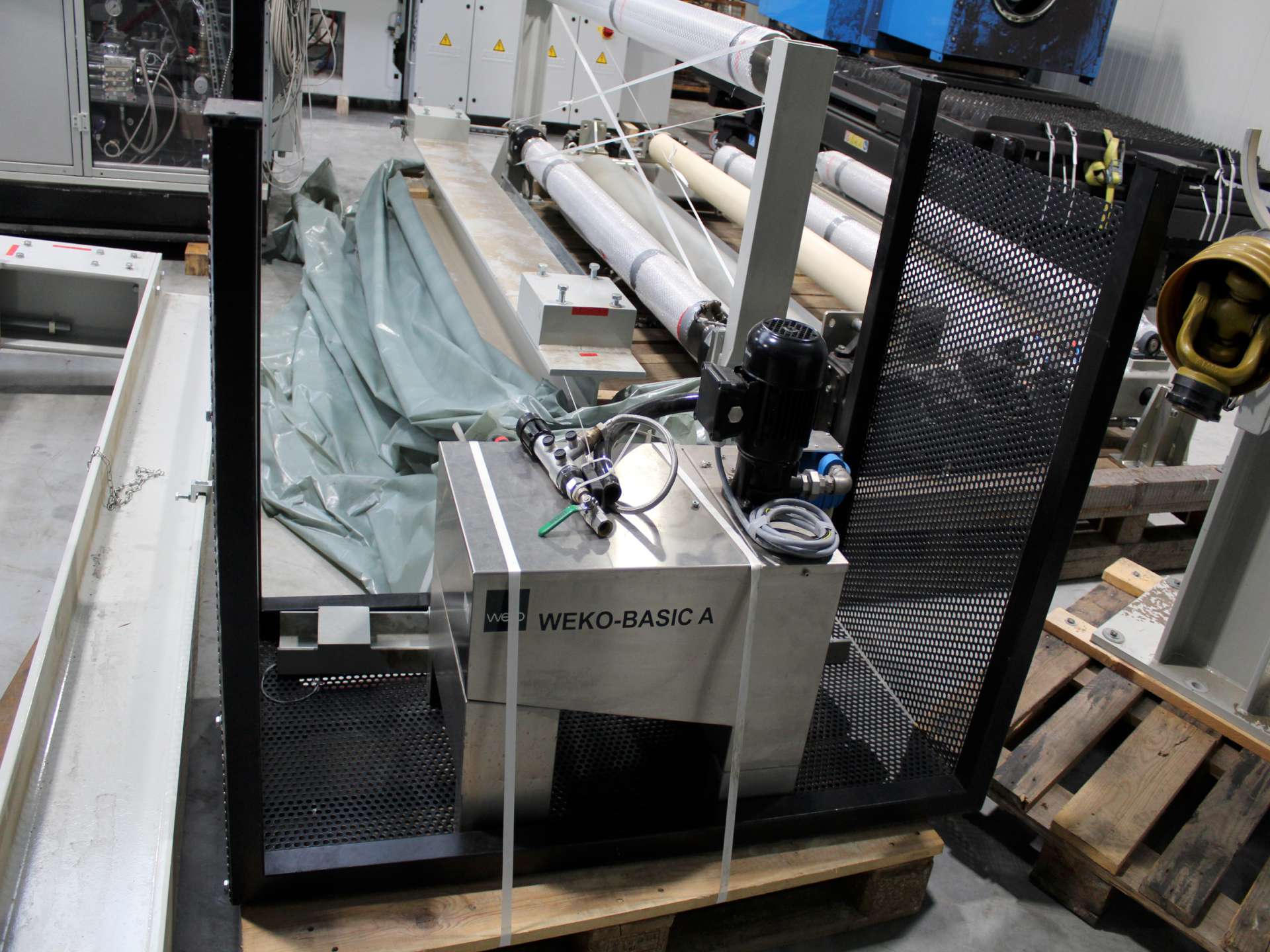

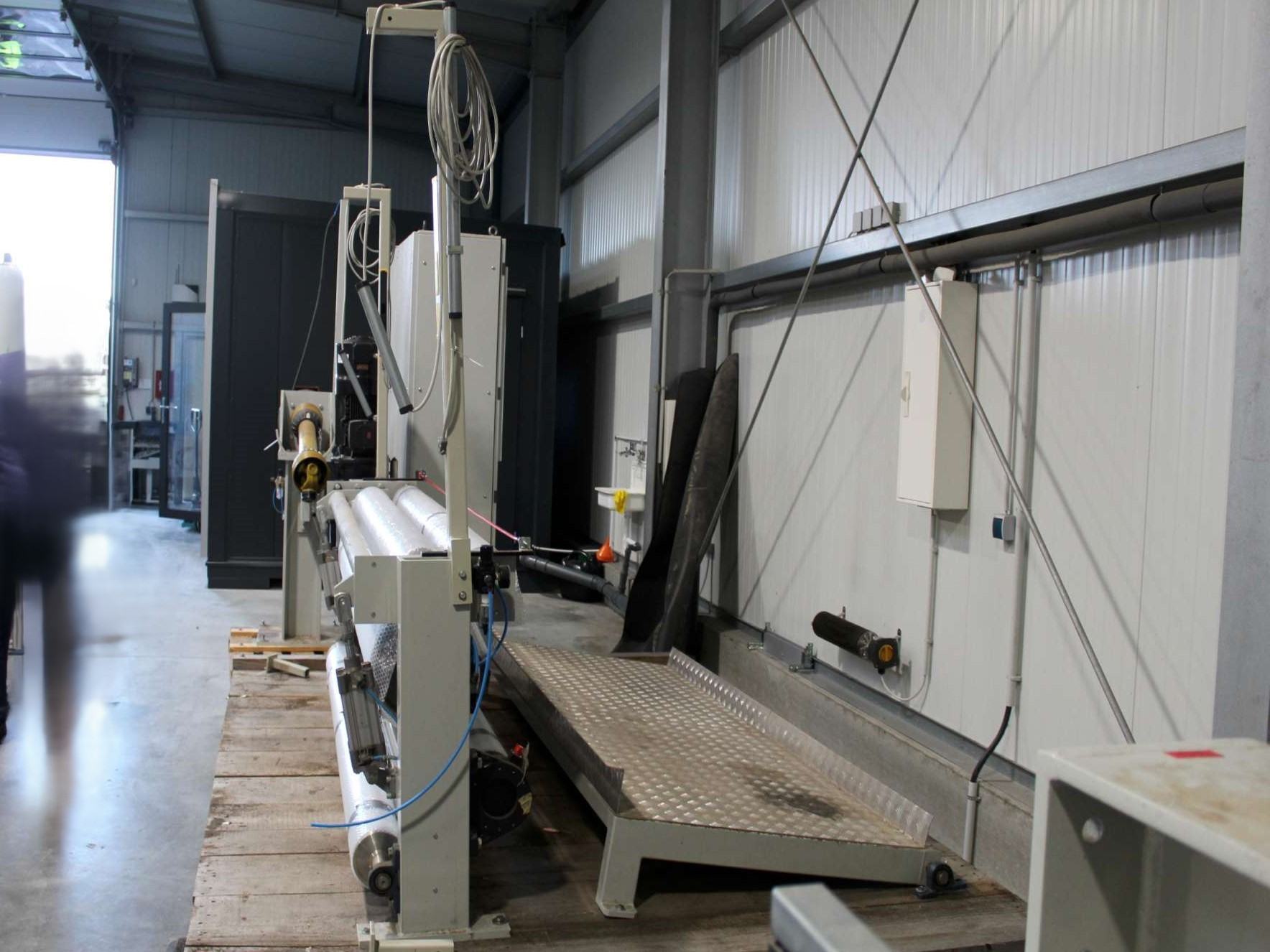

RAMISCH GUARNERI 2 BOWLS calendar / MAIN COMPONENTS / to see layout 1 - yoc 2015 - 1. Axial unwinding station with electric/pneumatic brake - 2. Padder SUCHY with dancer unit (to confirm). - 3. Guide roller 140mm diam. - 4. load cell E+L + guide roller - 5. Metal detector CEIA - 6. Seam detector RG - 7. Side system for centering device KF2020 with oscillation by electric motor - 8. Centering device E+L KF 2020 - 9. WEKO nozzles system - 10. Operators foot board with open system - 11. Load cell E+L + guide roller - 12. Tensioning device with rubber roller 300mm diam. + ac gear motor + pneumatic press roller - 13. 3 roller infeed + 2 smooth + 1 spiratled roller + ac gear motor for rotation - 14. Steel roller covered with mirror max. 640mm x 2000mm (to confirm) + synchronized motor - 15. Steel roller 460mm x 2000 mm peripherally drilled + ac gear motor + MAIER rotary joint with cooling unit - 16. Temperature sensor for steel roller - 17. Crane for roller disassembling with electric movement up/down and manual movement back and forth - 18. Pneumatic dancer unit for DUPLO line (to confirm) - 19. Double air compressed device for fabric cooling - 20. Big batcher for A-frame up to 1600mm diam. - 21. Axial winding station with gear motor for A-frame up to 1600mm diam. - 22. Compressed air for Mirror max colling - 23. WEKO nozzles system in exit for DUPLO line (to confirm). - 24. Temperature sensor for YAMAUCHI roller - 25. Special bathtub for water collecting - 26. Hydraulic cylinders RG - 27. Calender basement - Actual status: stored in a warehouse - Good conditions / see the pictures attached - Available TÜV SUD technical report in german (condition ok). - No NIPCO type - Working damasc and satin fabrics / I think can work many other types too / to check with GUARNERI
