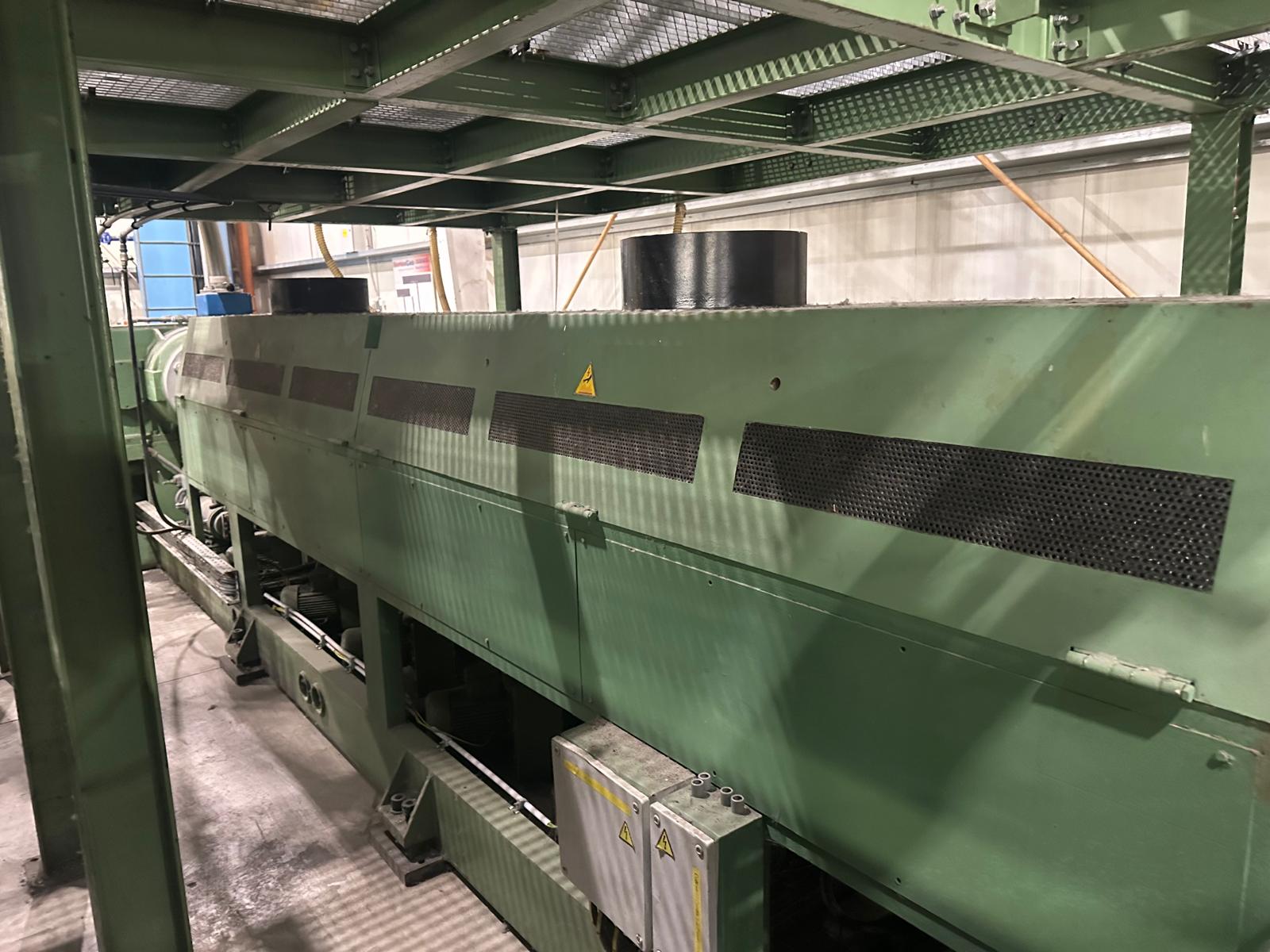

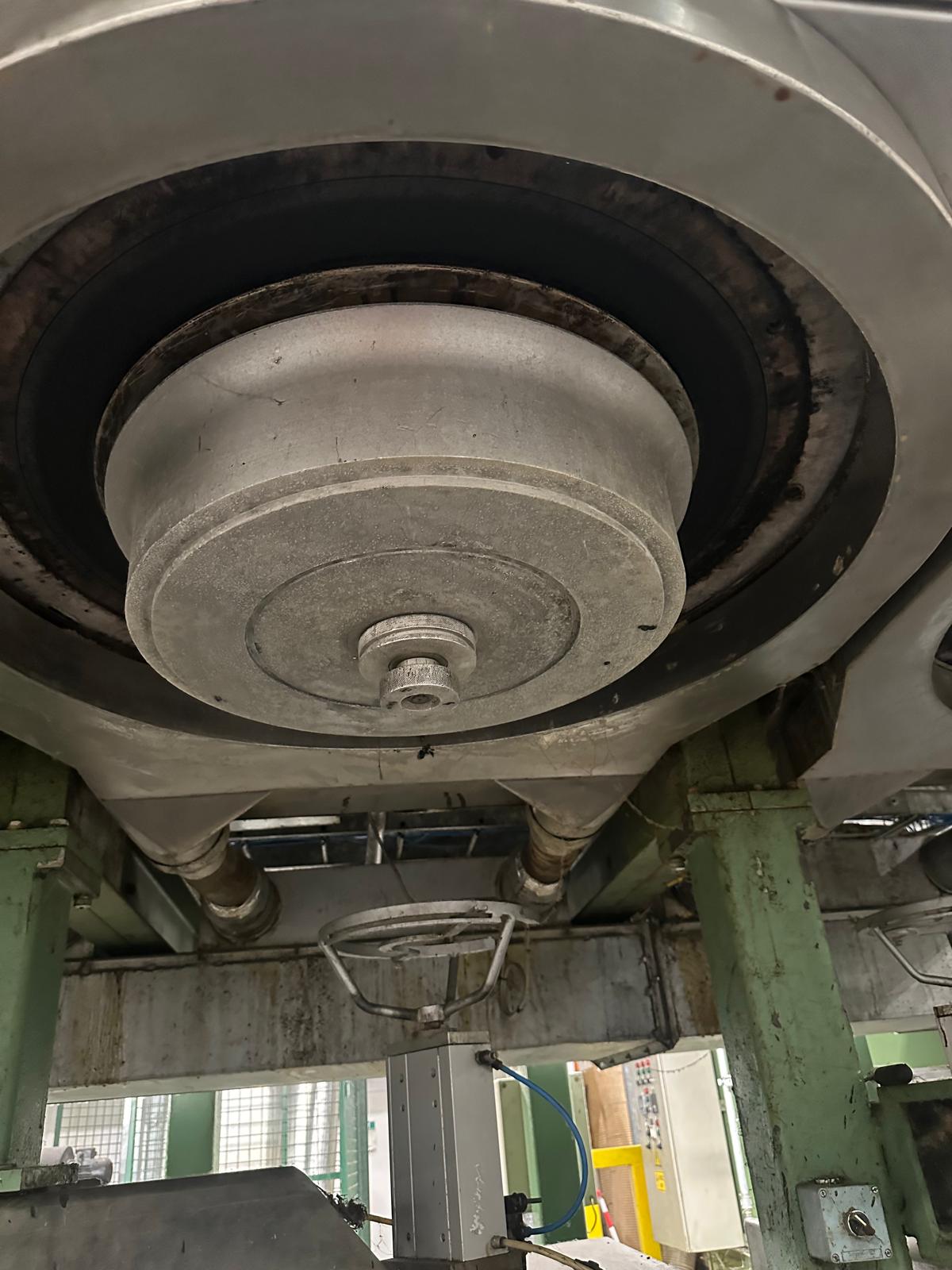

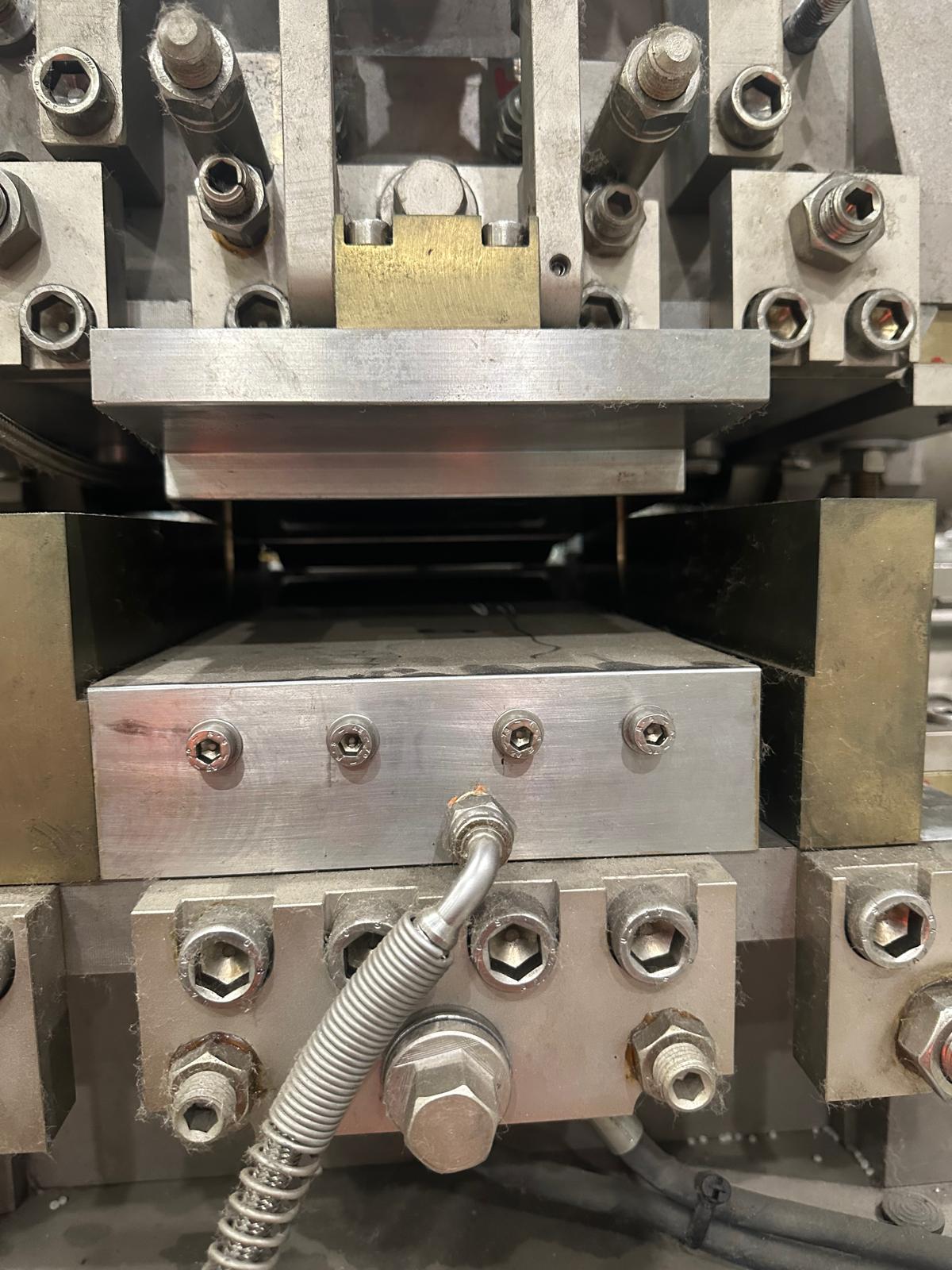

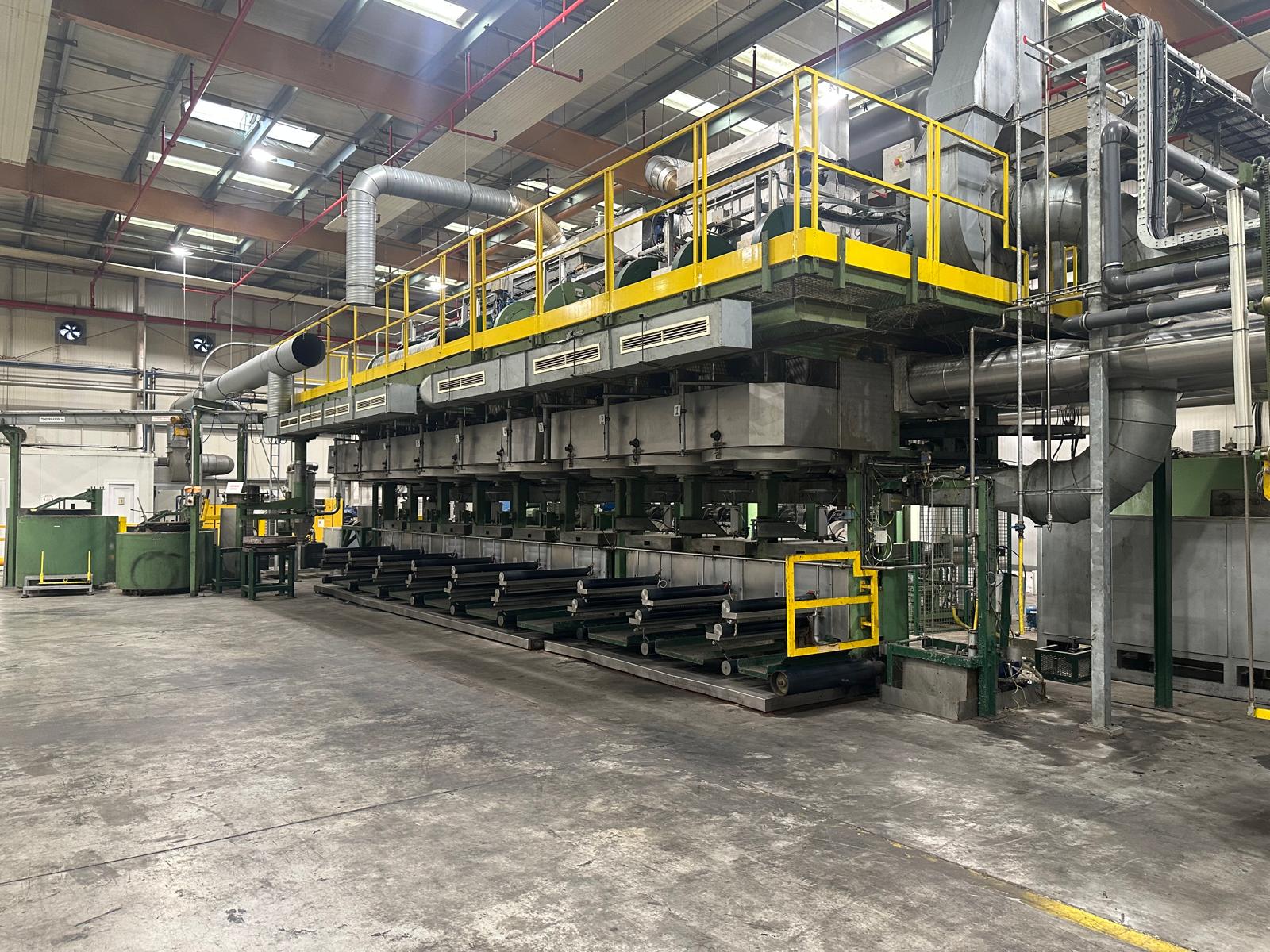

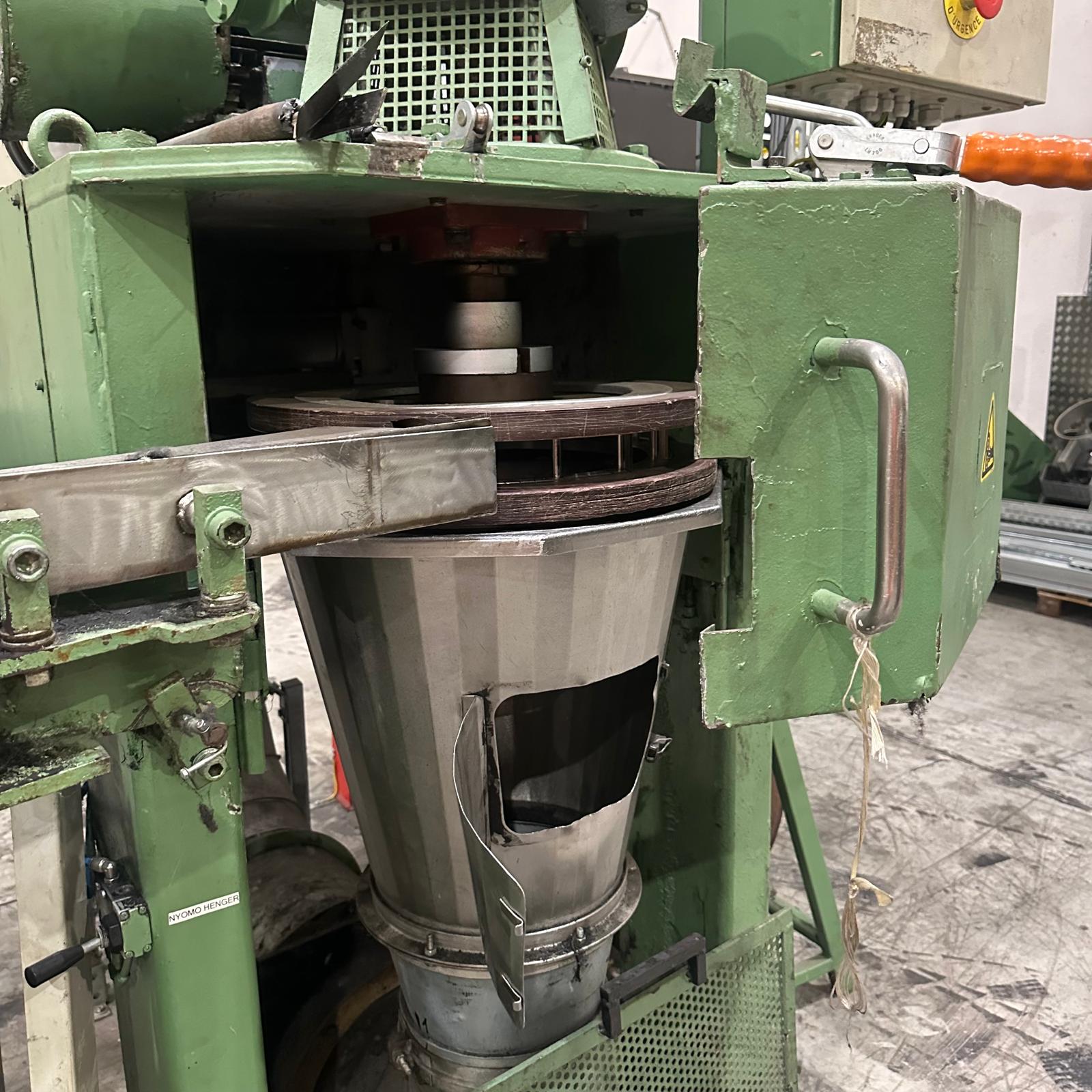

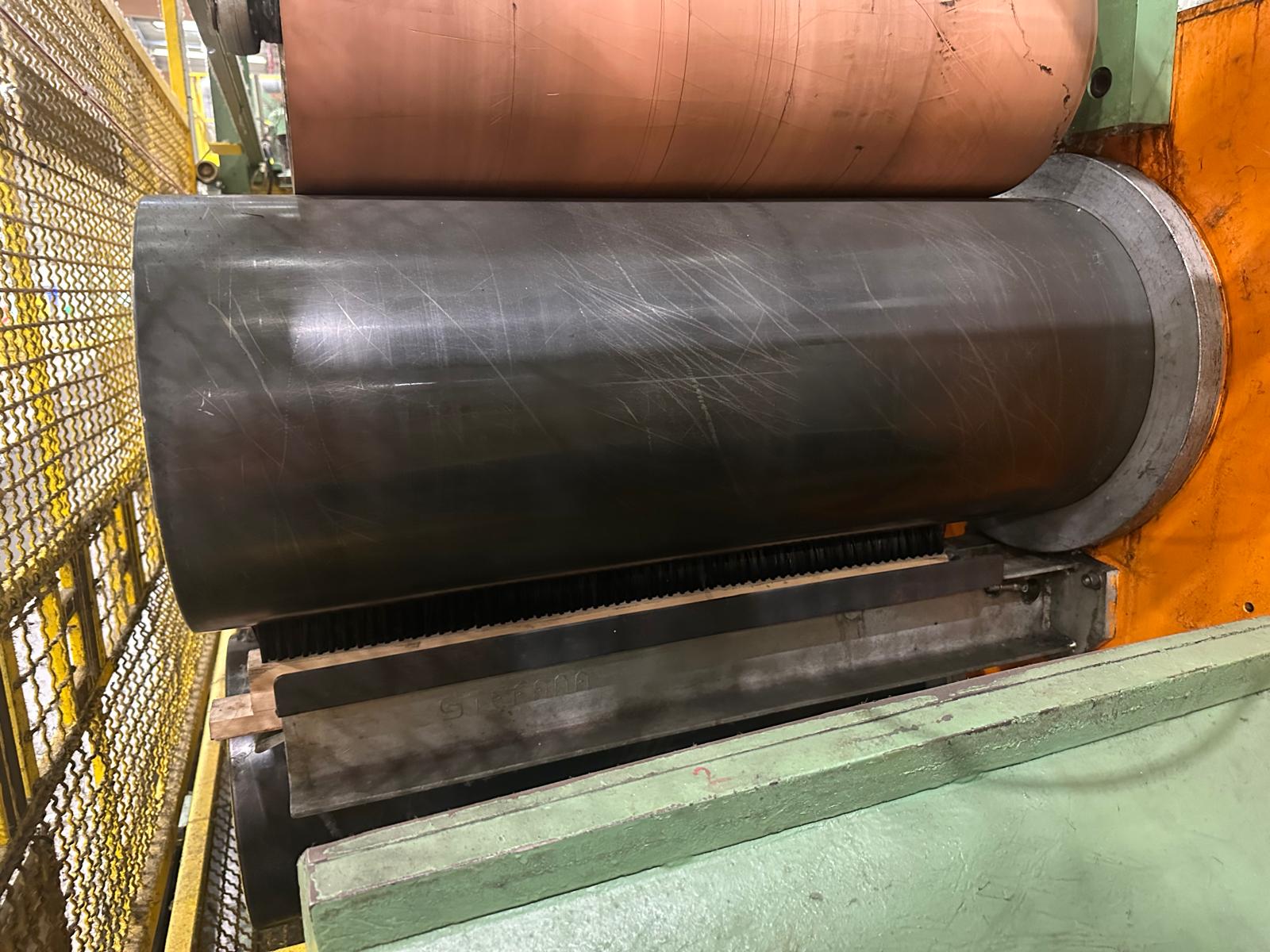

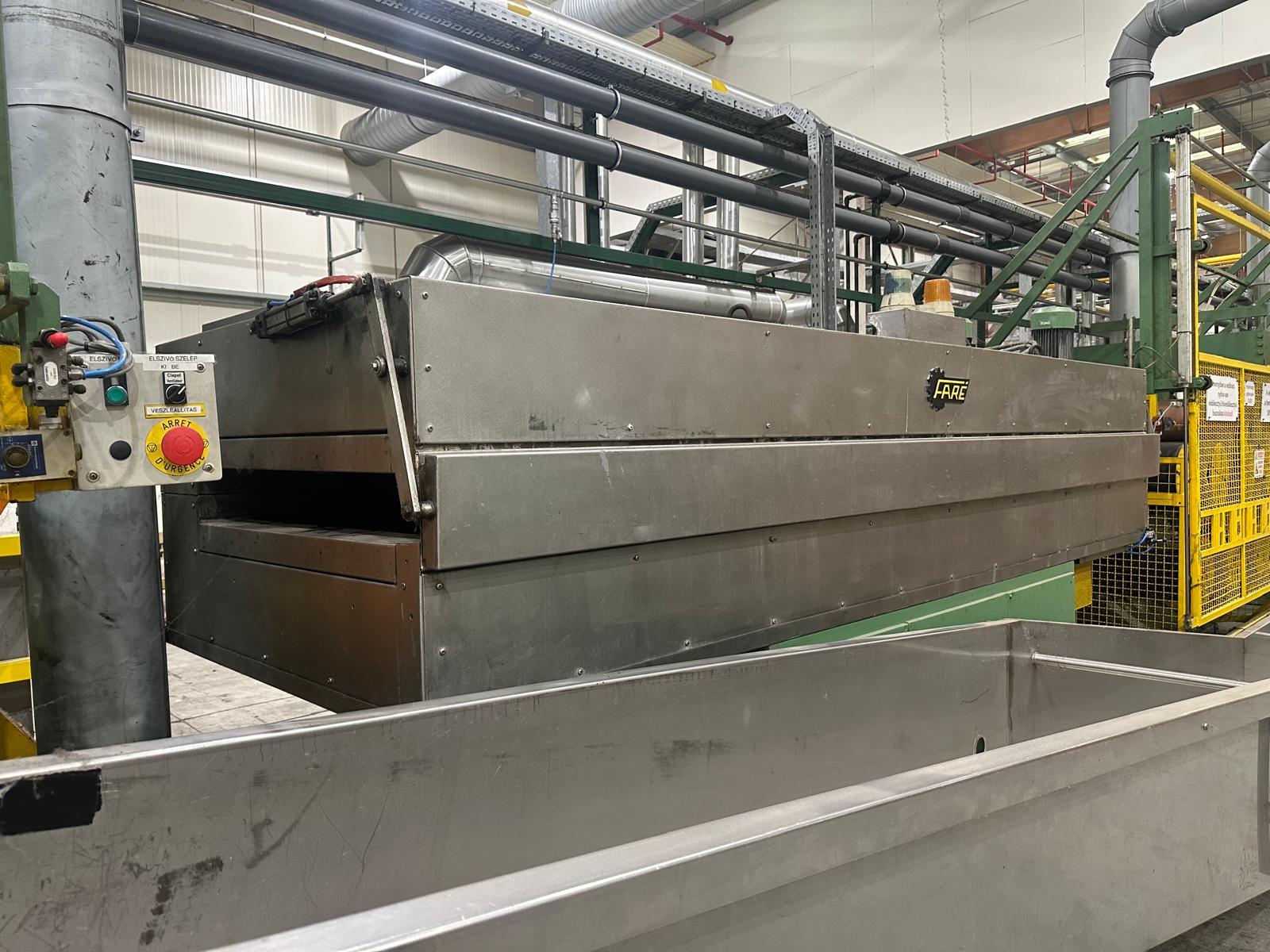

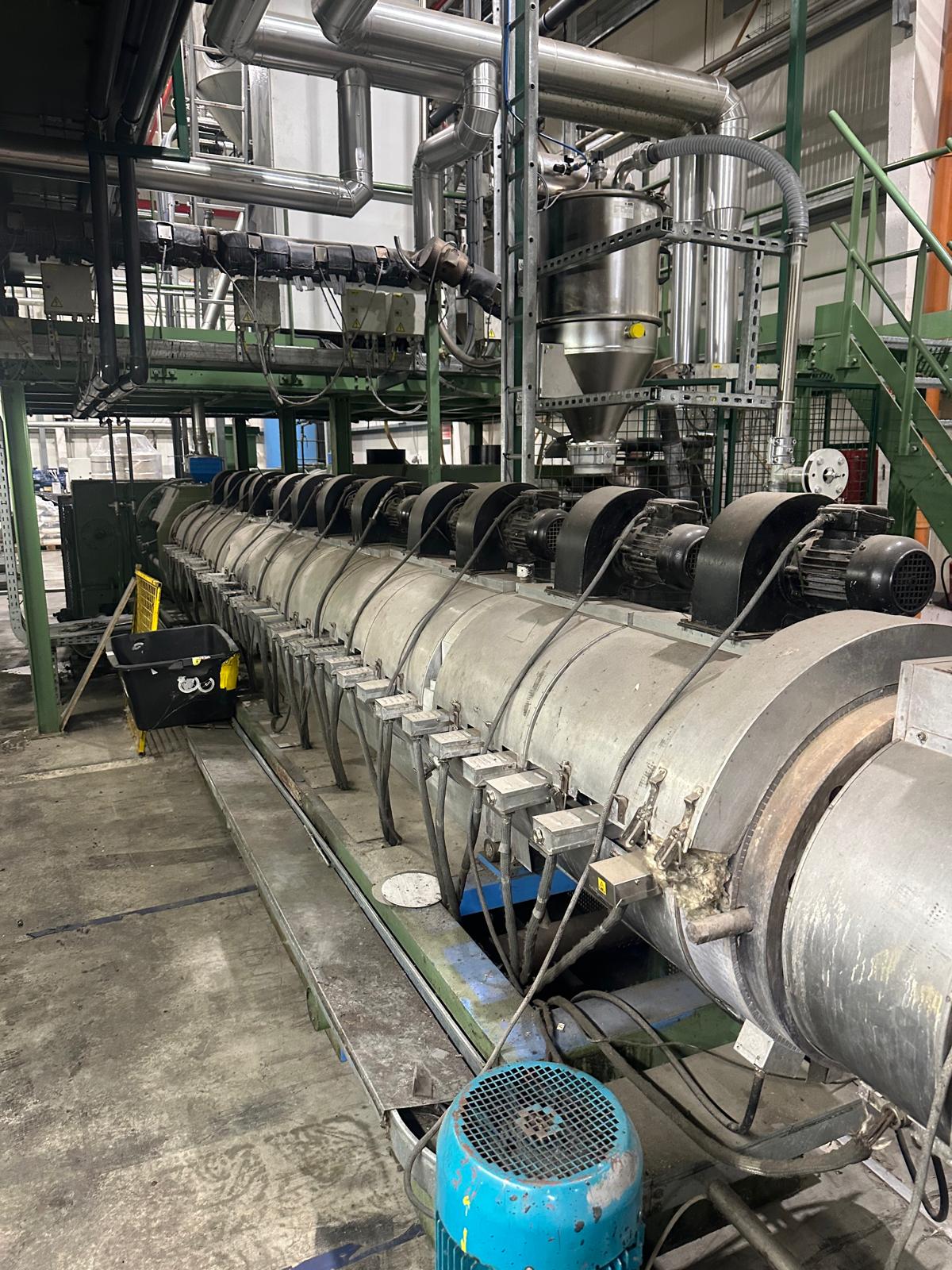

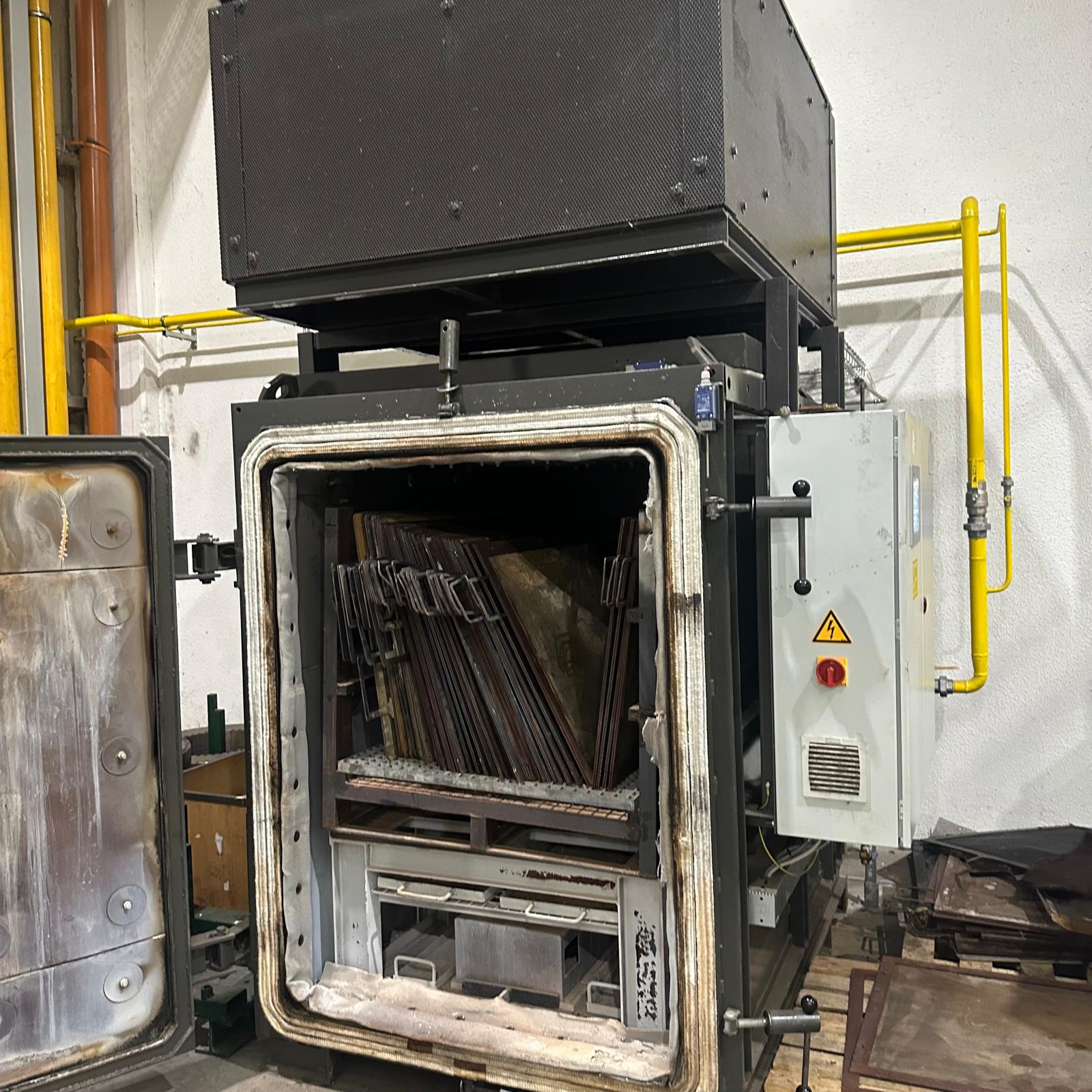

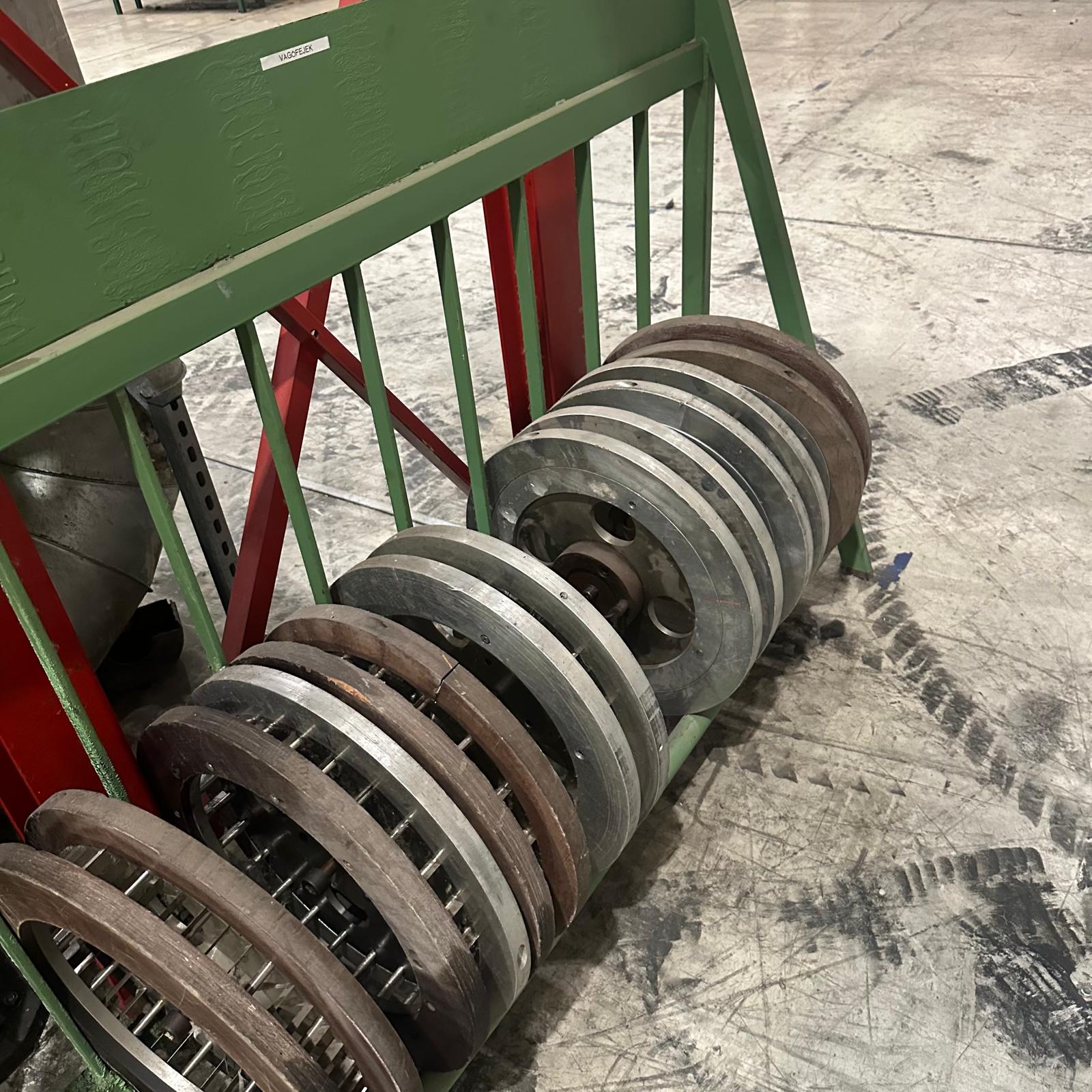

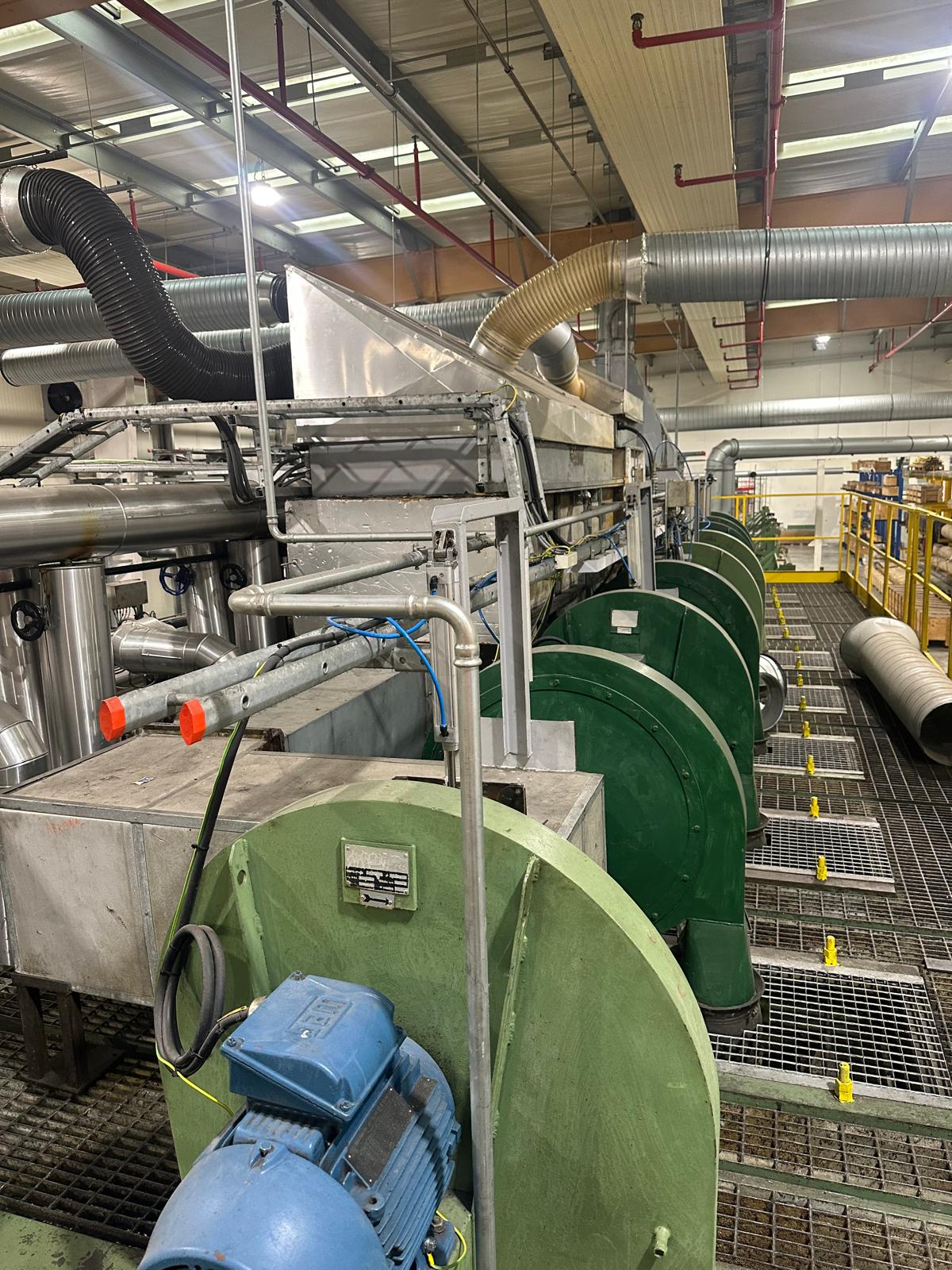

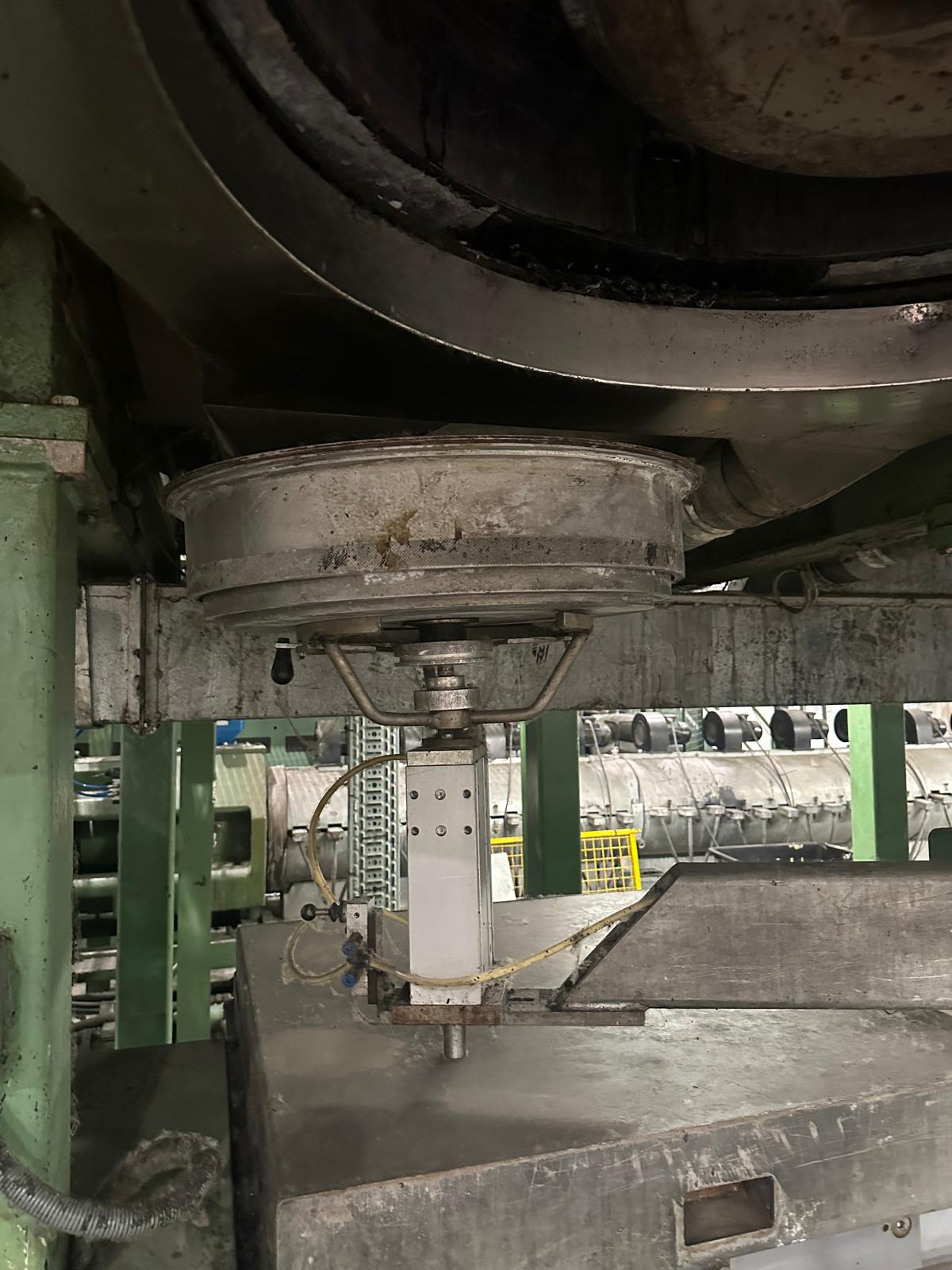

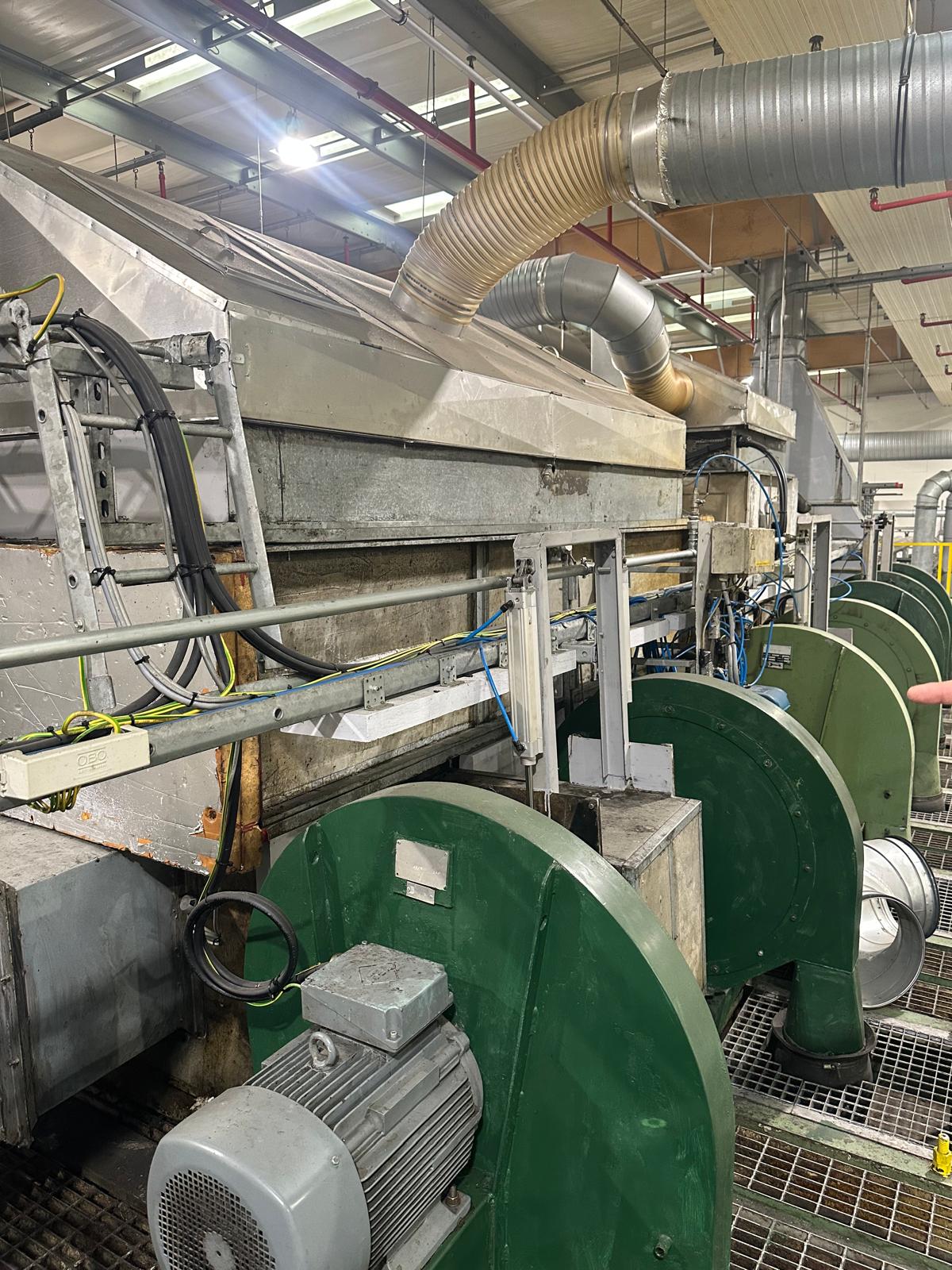

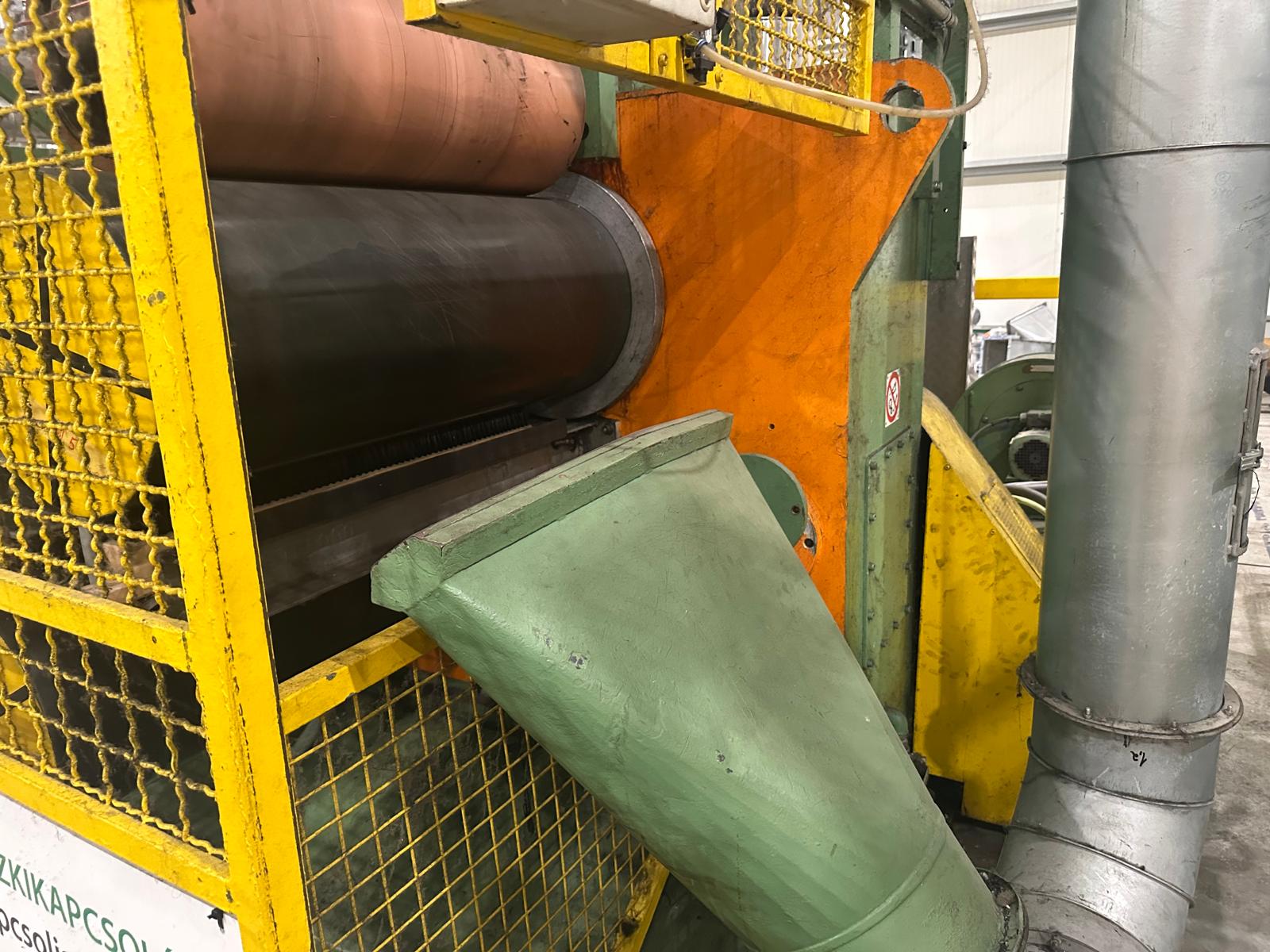

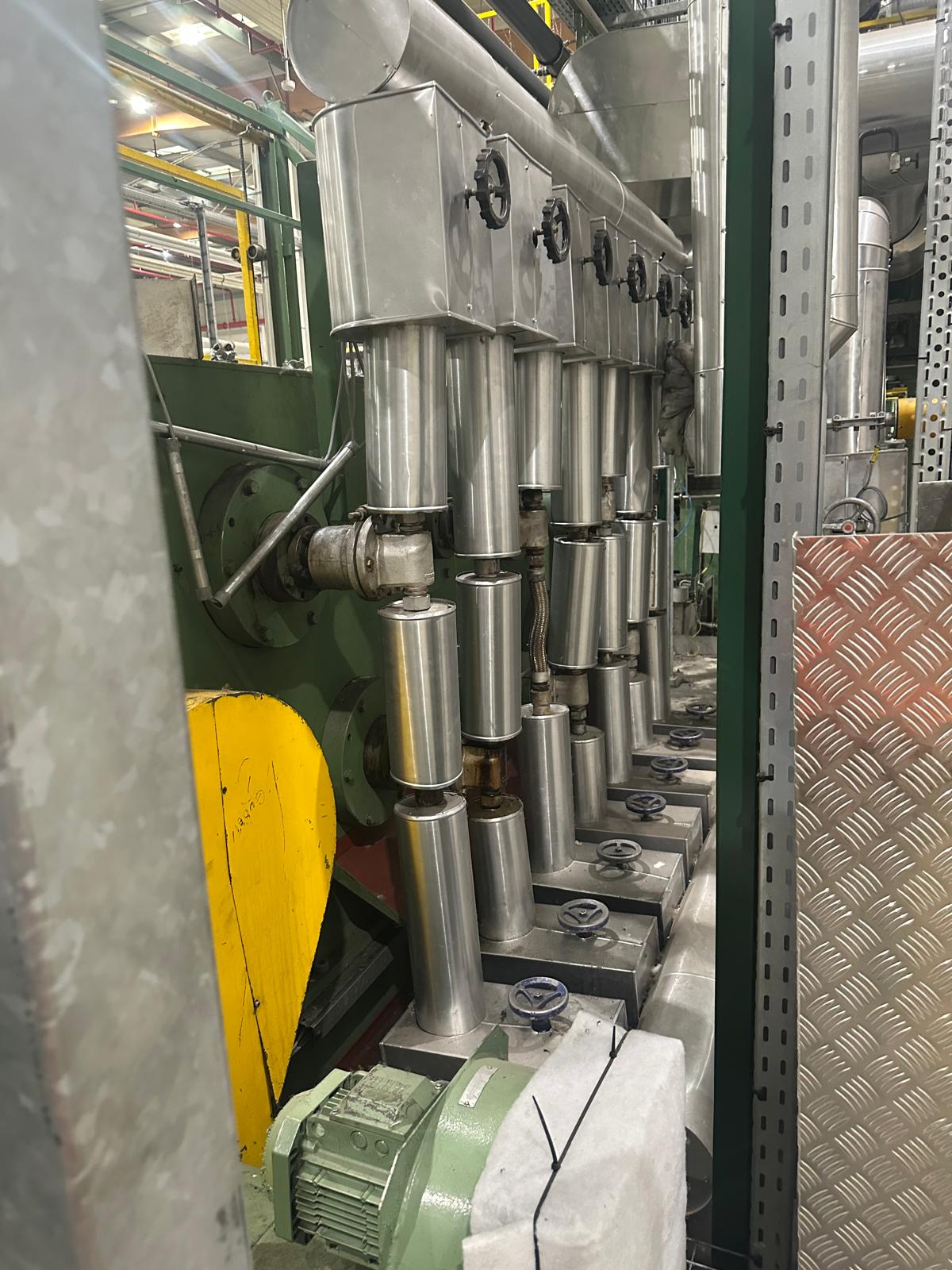

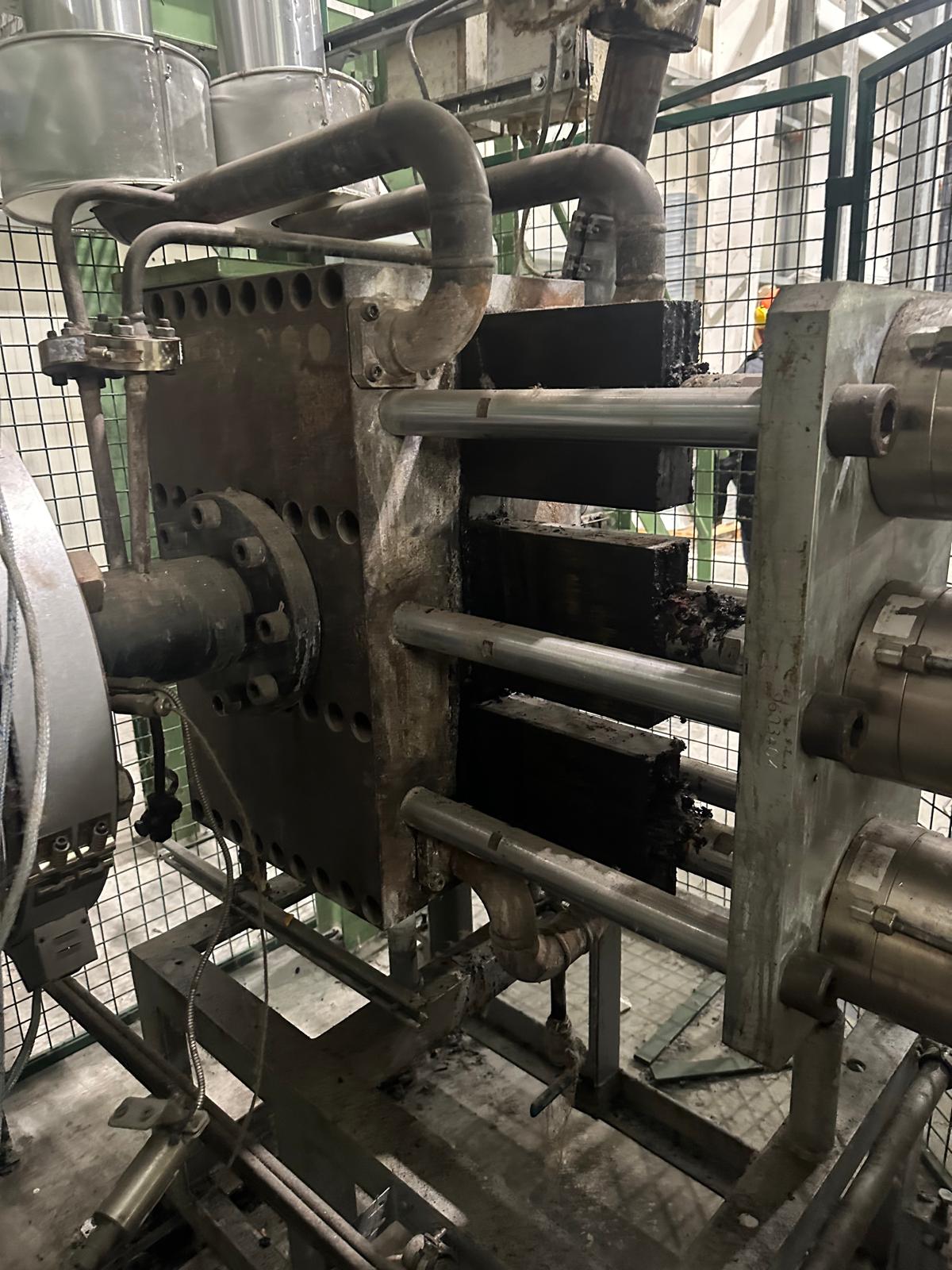

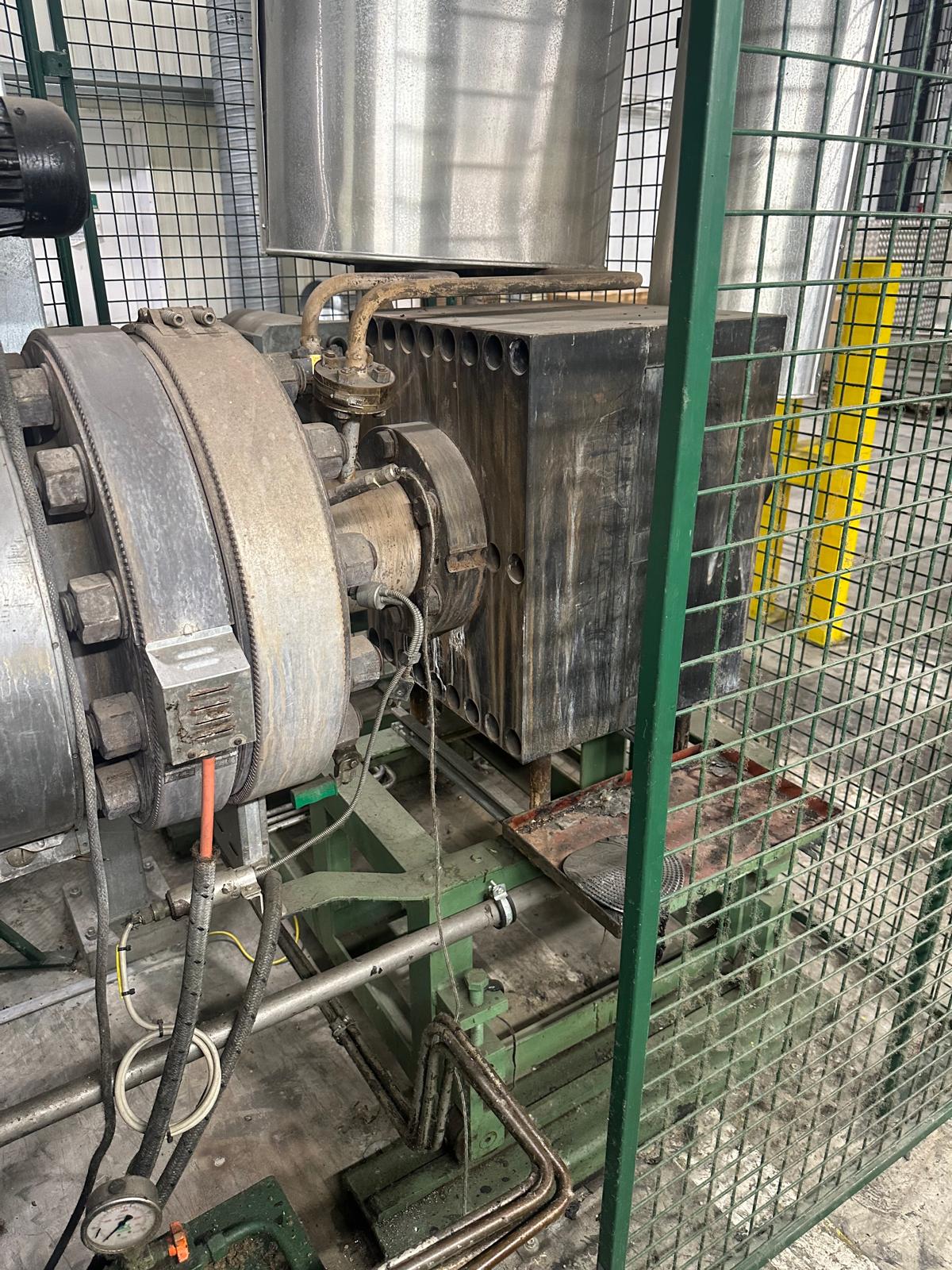

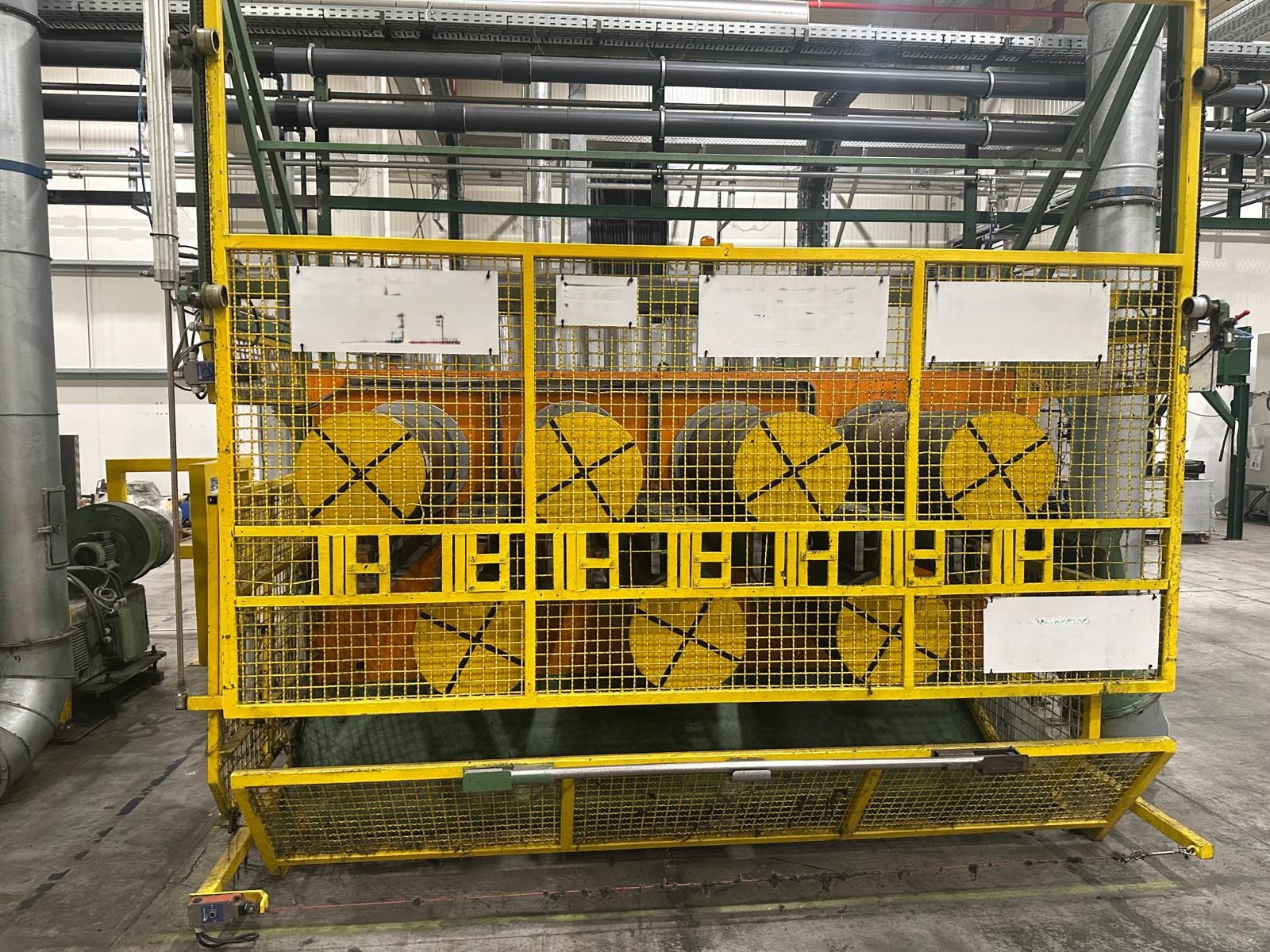

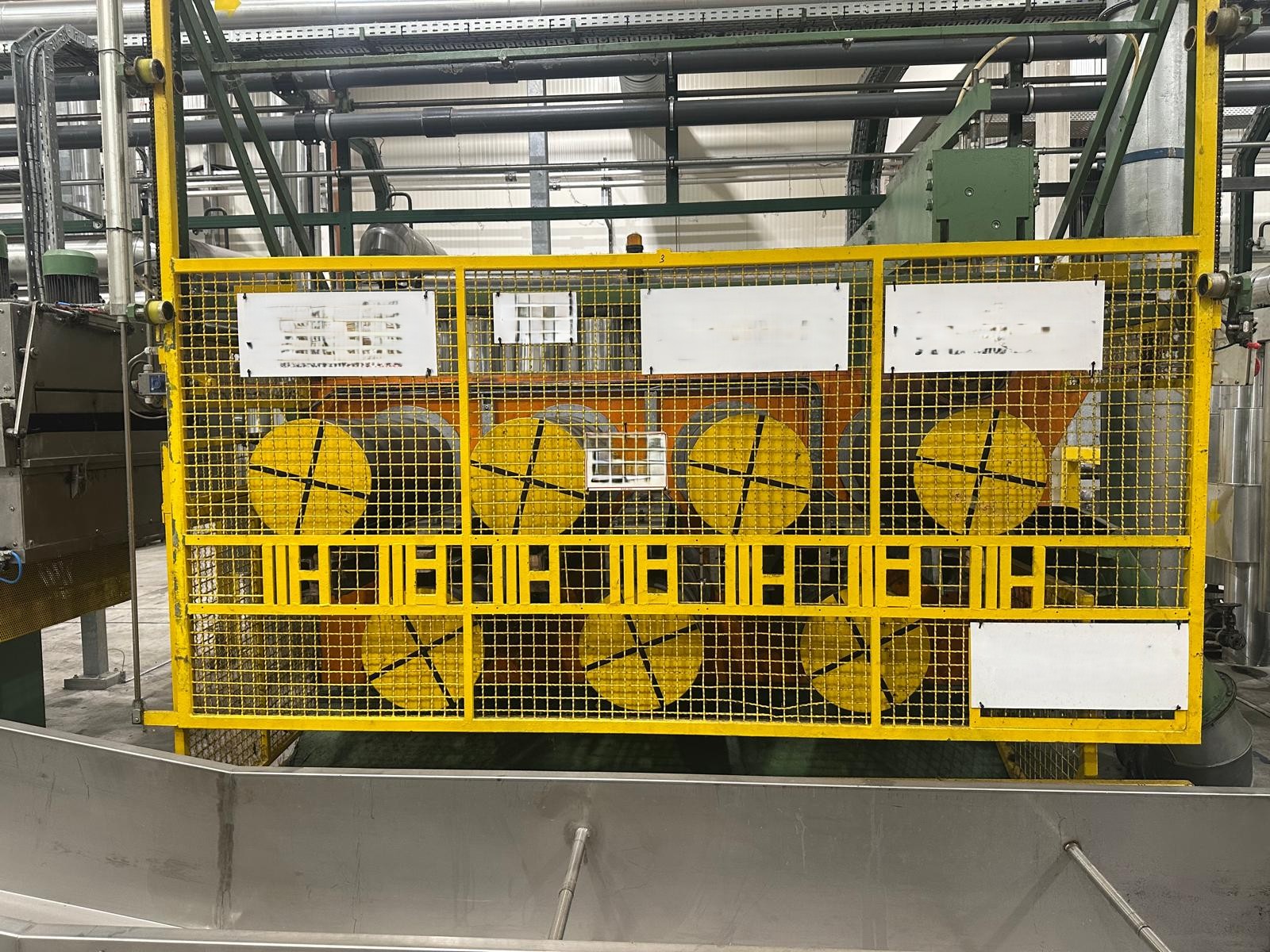

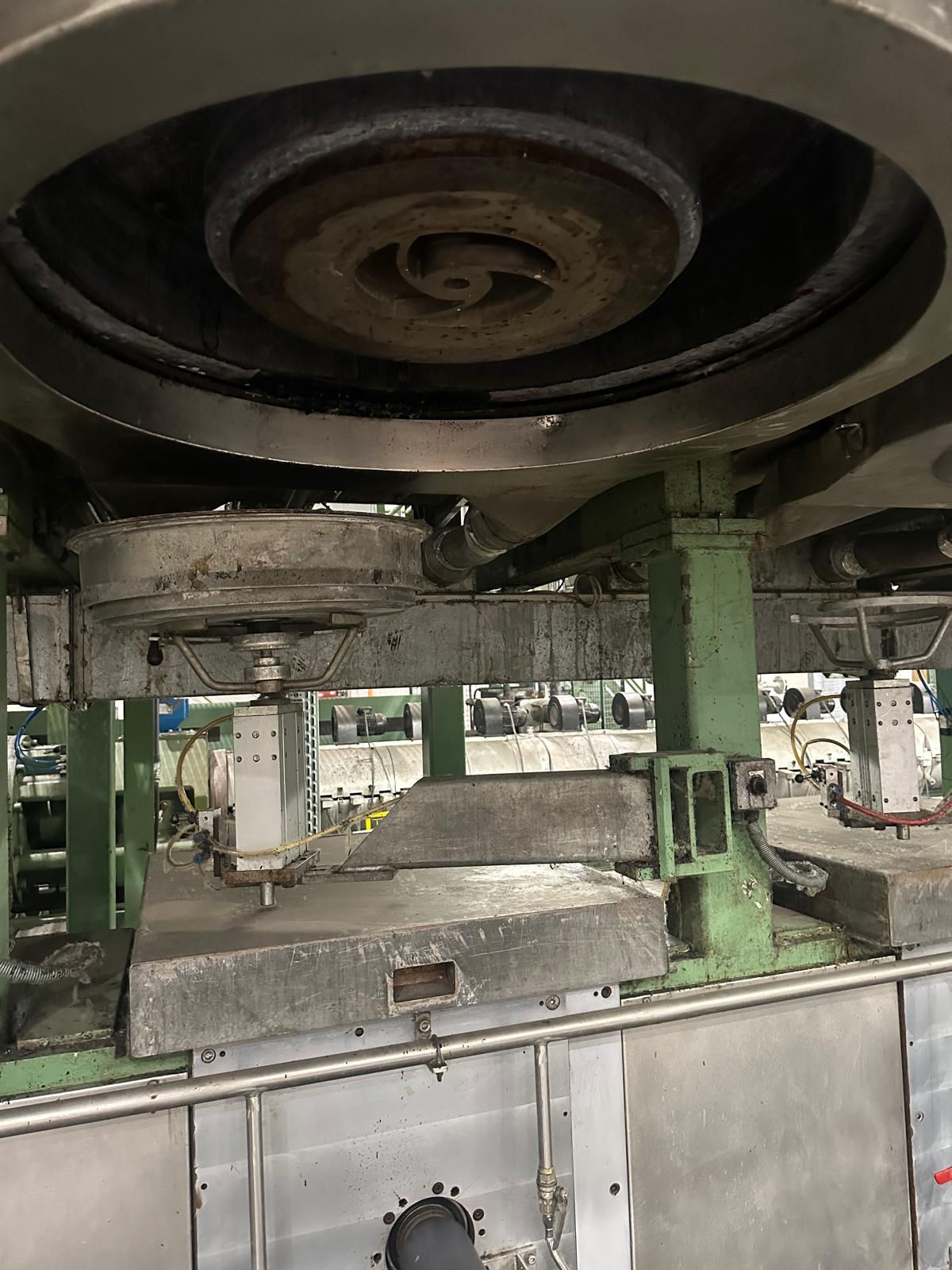

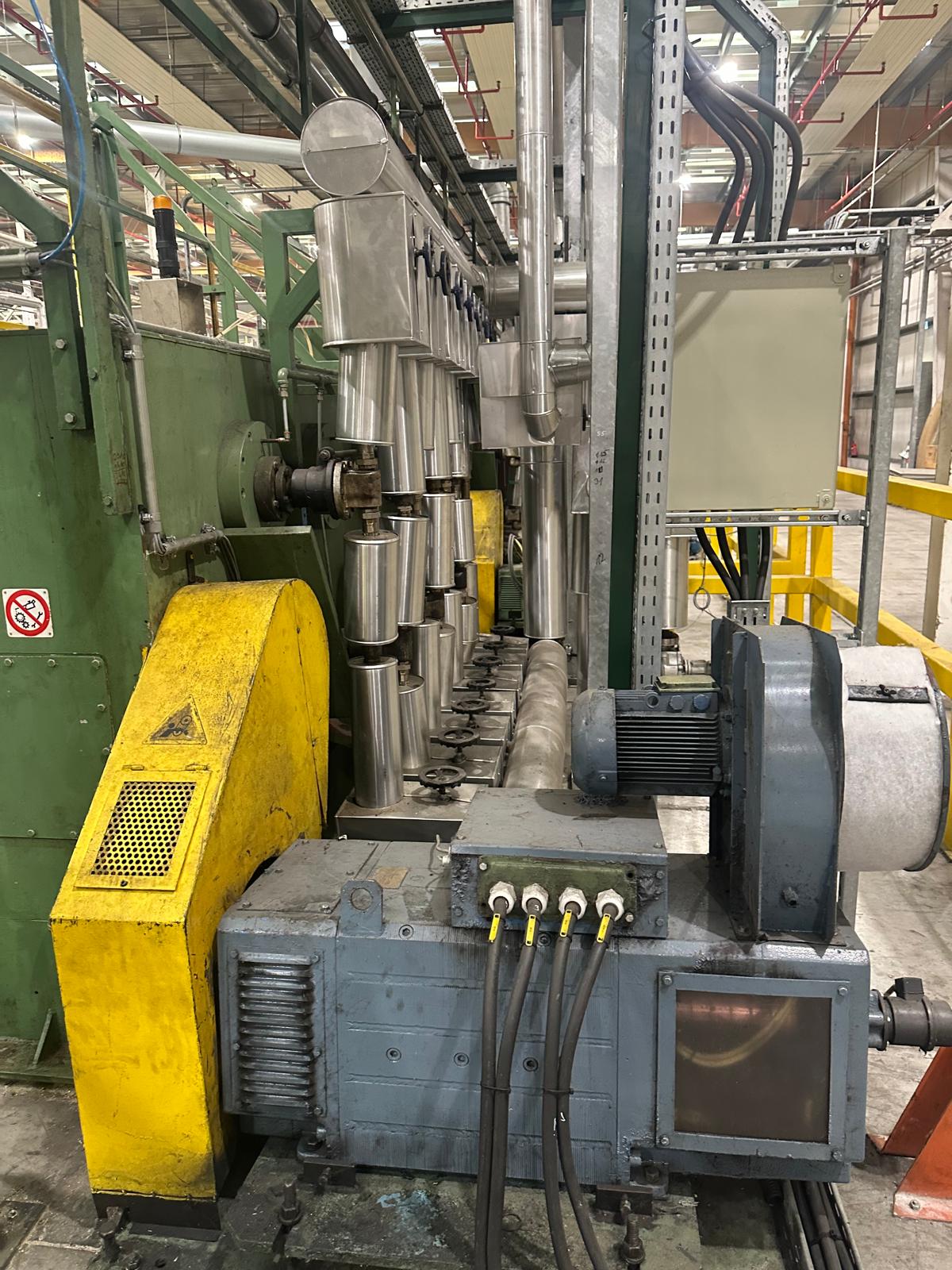

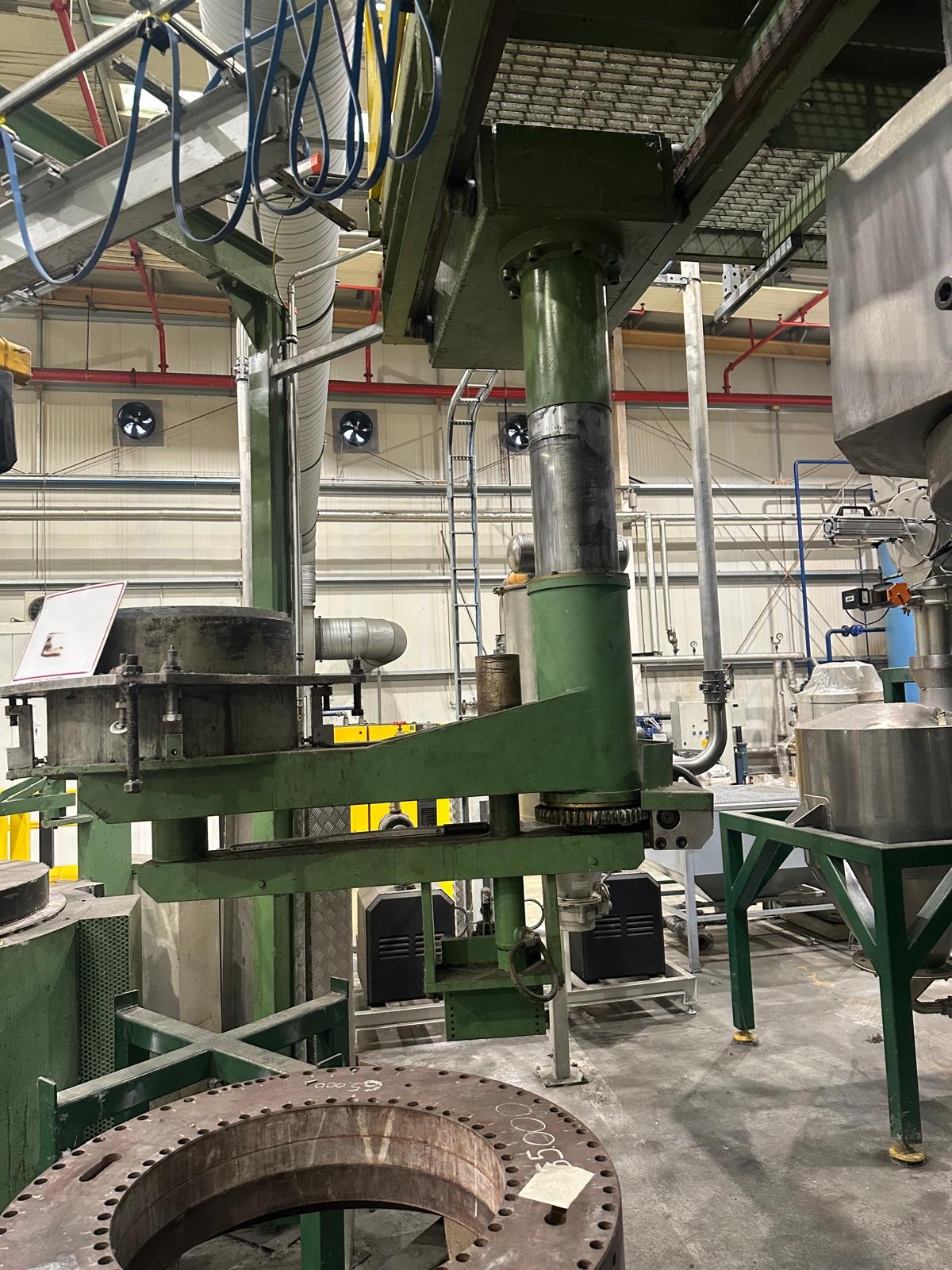

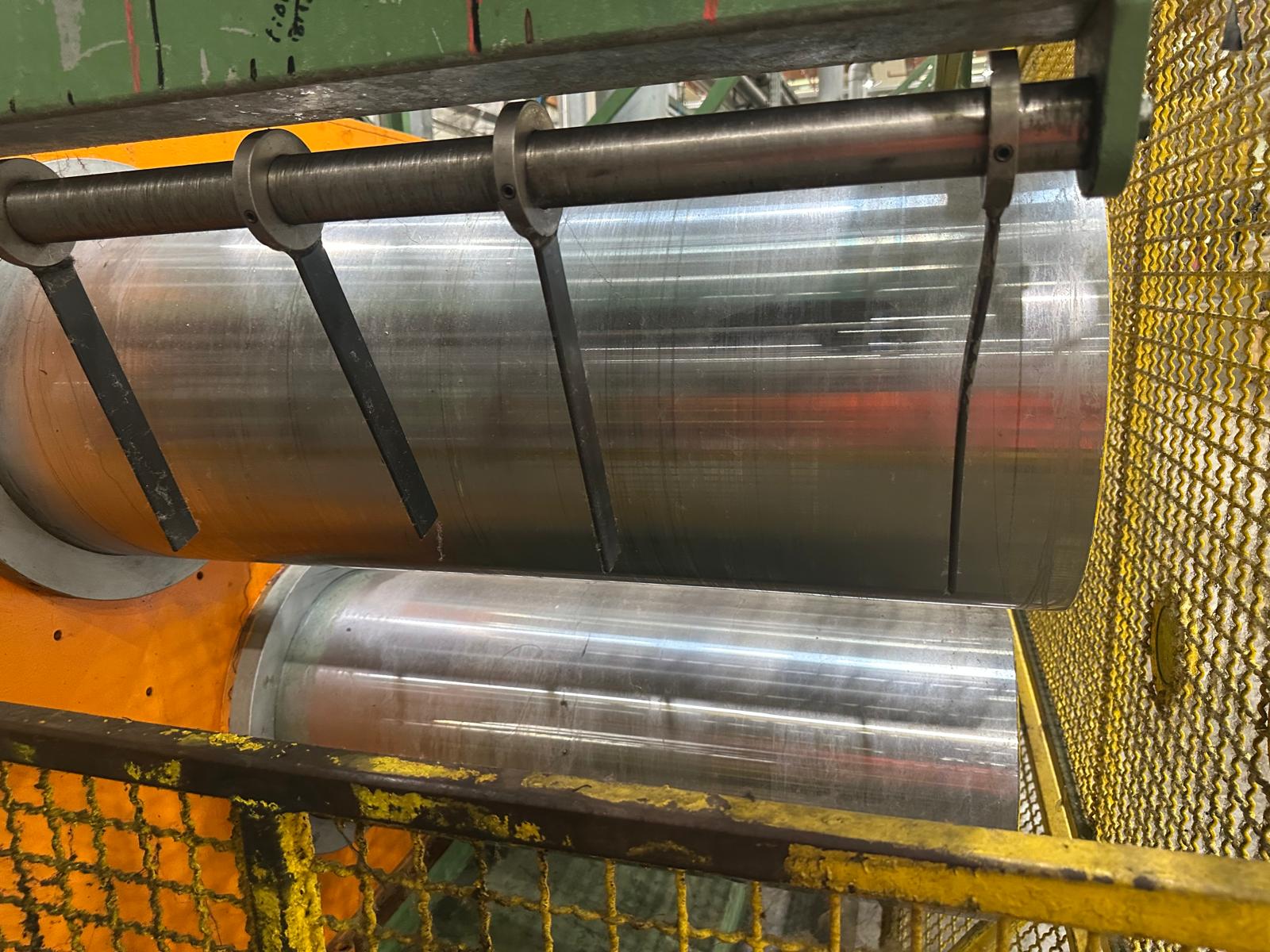

PP synthetic fiber spinning line 2003-2020 Average capacity 1000 kg/hr for HT fiber, higher output for non-HT fiber. Specifications obtained for HT, average 50 cN/tex and 100% elongation Consisting of: 2*extruders: - #1 - dia 200 mm with 312 kW DC motor - #2 - dia 161 mm with 328 kW DC motor. - Filter surface 2x 160 mm dia and 3 x 160 mm dia. Spinning system: - 9 positions, oil heated, PT100 T measuring system, pressure measurement for each position Spin packs and spinnerets: - 14 spin packs - dia 860 mm, - 25 spinnerets with 10*75,000 holes, 8*65,000 holes and 7*45,000 holes.( we have to check if are still available ) Cranes, loading system and pre-heating oven Oil boiler - electrically heated Air Quenching, 1 for 6 positions and 1 for 3 positions Suction spinning exhaust smoke Godets and waste collector - Godet 1 - 7 rolls, dia 400*1000 mm, chromium plated, 60 kW DC motor, thermal oil heated - Godet 2 - 7 rolls, dia 400*1000 mm, ceramic plated, 125 kW DC motor, thermal oil heated - Godet 3 - 7 rolls, dia 400*1000 mm, ceramic plated, 250 kW DC motor, thermal oil heated - Waste collection with 3 aspirators (1 after each godet) and waste container Steam box and stacking rollers - 3 stacking rollers, ceramic coated, 1 roll with load control Annealing oven - thermal oil heating 2 crimping units - ww: 160 mm, up to 2000000 denier and 2.5 - 8 crimps/cm - ww: 200 mm, totally new - not yet installed .( we have to check if is still available ) J-box Cutting unit: - cutter reels for 40, 45, 55, 70, 75 and 90 mm in aluminum and steel Metal detection system Ventilator fully PLC controlled Complete with: 2* Zeppelin polymer silos, yoc: 2020, (outside), each 223 m3, dia - 4050 mm, with level indicators (low/high) via paddle switch + radar sensor for each silo AZO dosing and mixing system, from 2020 with: - 2 main dosing systems - 3 gravimetric additive dosing system, tolerance 0.5-3% - mixing unit for perfect homogenization - including vacuum pumps - separate control panel Valvan automatic bale press, yoc: 2020 - 40 tons pressing force - to press for internal use, without packaging - with PP cord banding - capacity 1600 kg/hr.( we have to check if is still available ) dry transformer, 2000 kvA, yoc: 2020 Daikin cooling system, yoc: 2020 - 220 kW cooling capacity - free cooling (dry cooler) in-line for energy saving Pyrox pyrolysis cleaning oven, yoc: 2020 - PLC control and afterburner - up to 485 deg. C and afterburner up to 850 deg. C. - can handle cart up to 1*1*1 meter Alpha ultrasonic cleaning bath, yoc: 2020 - 200 liters, internal dimensions 0.9*0.25*0.9 meters
