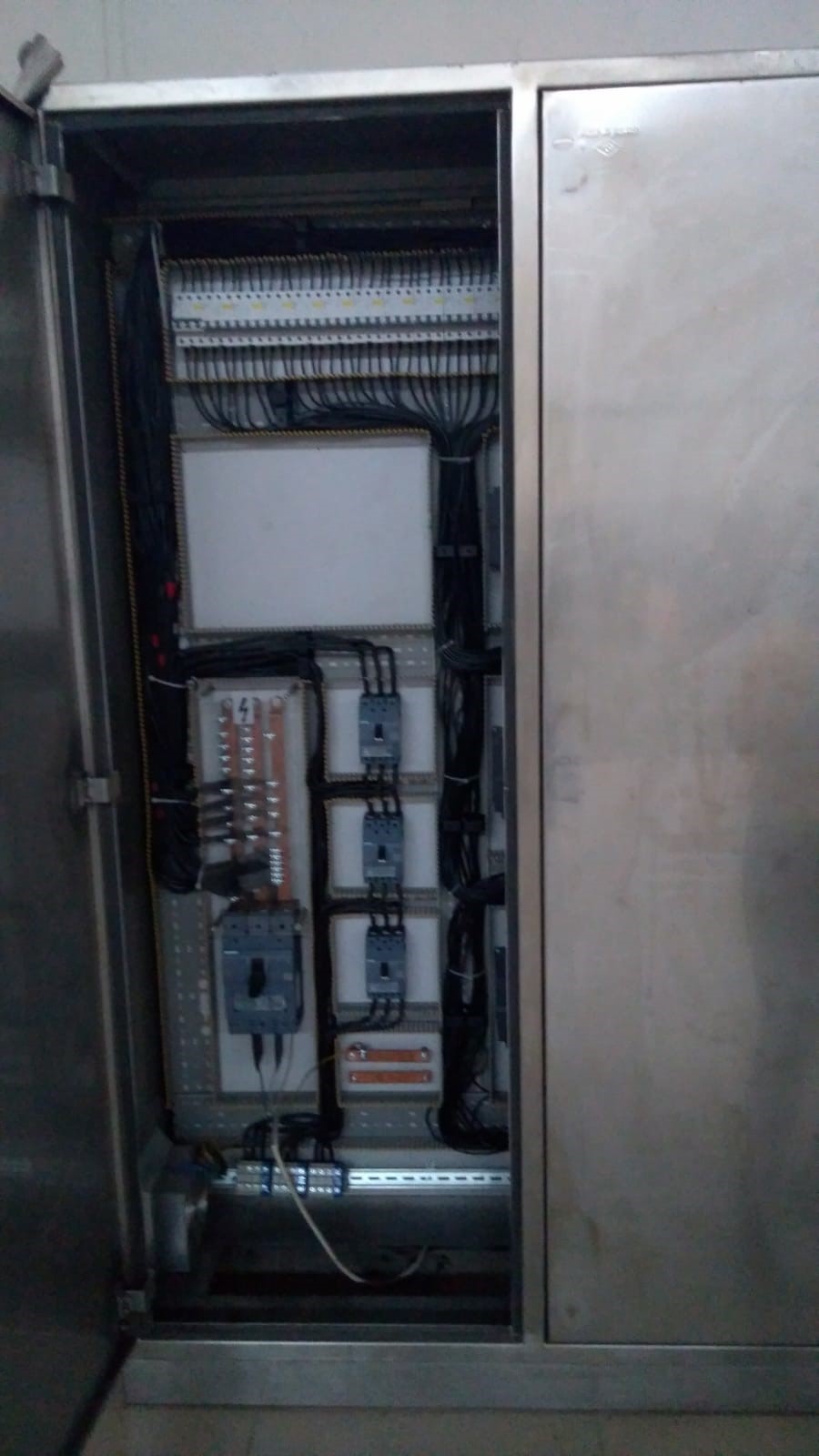

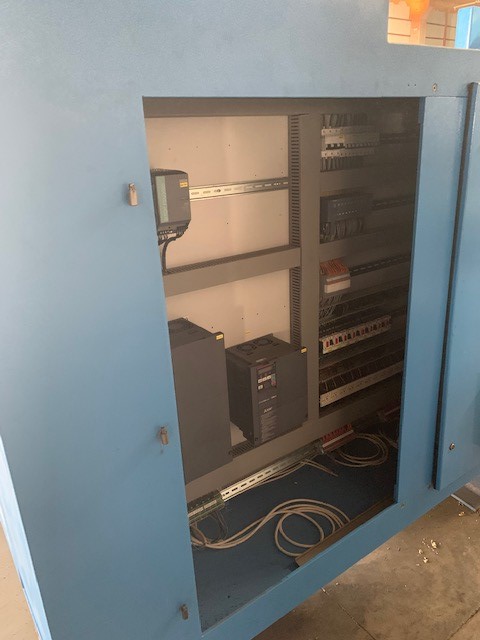

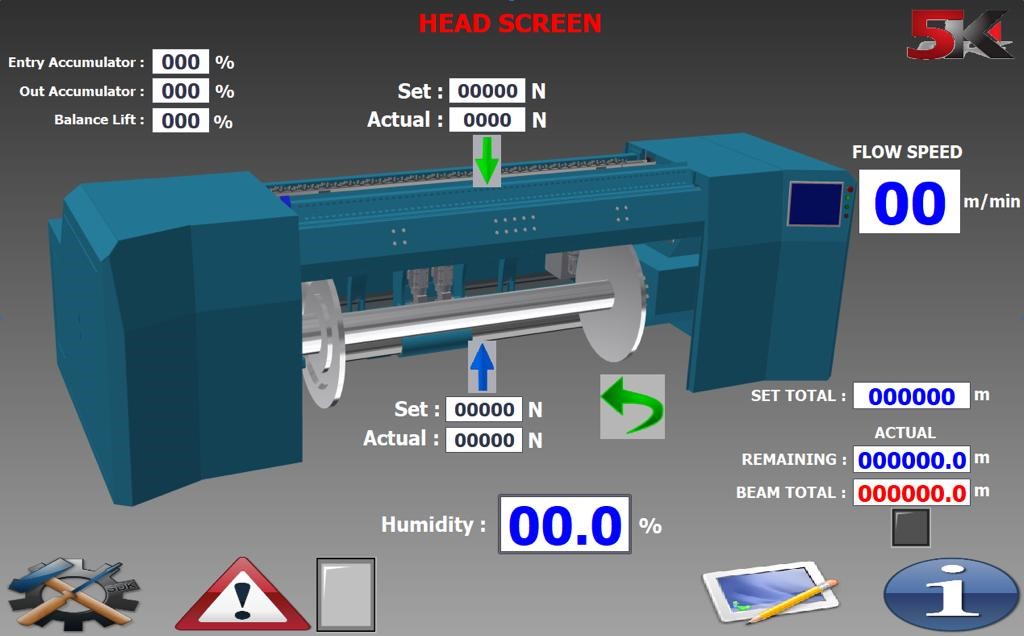

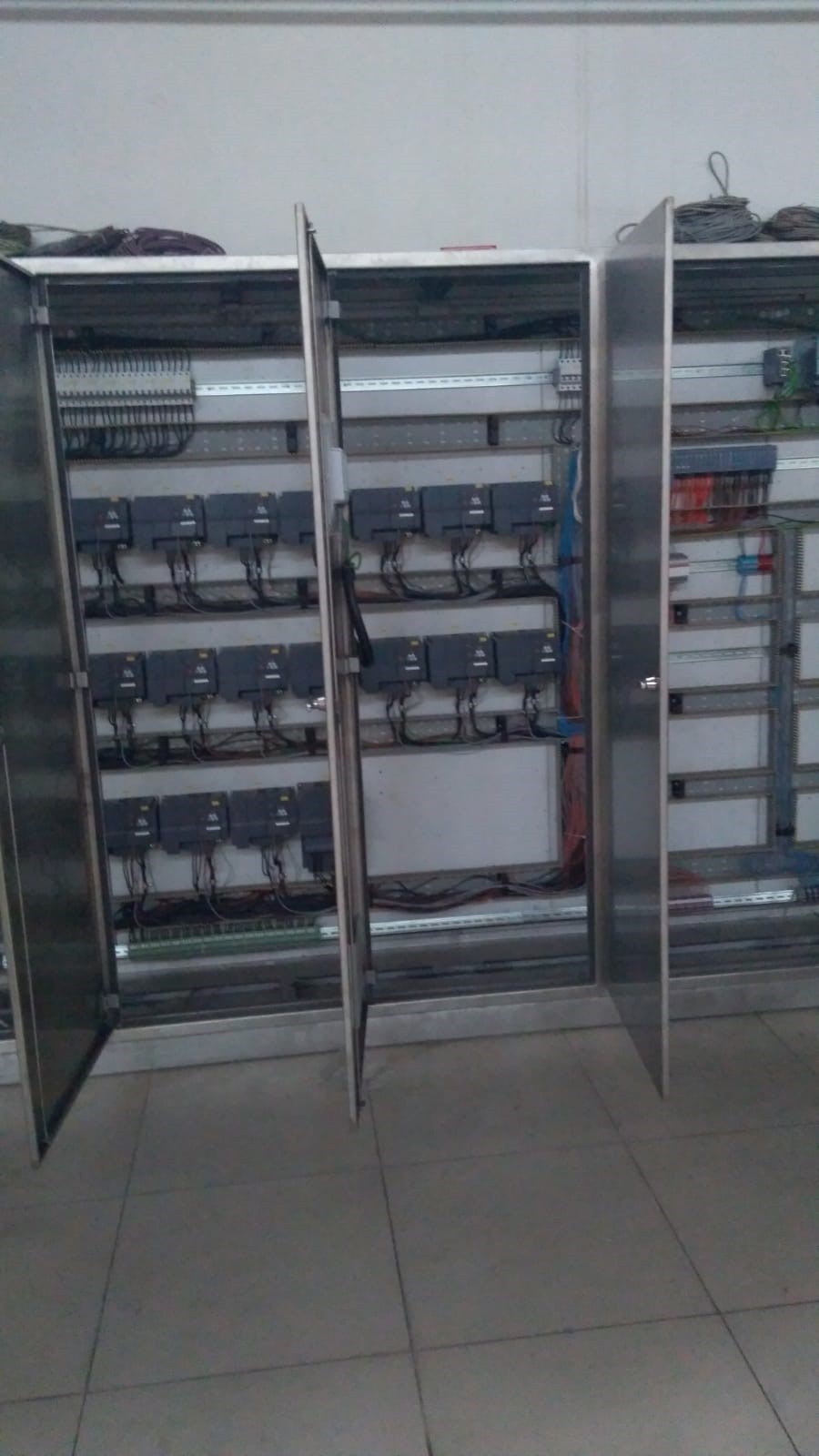

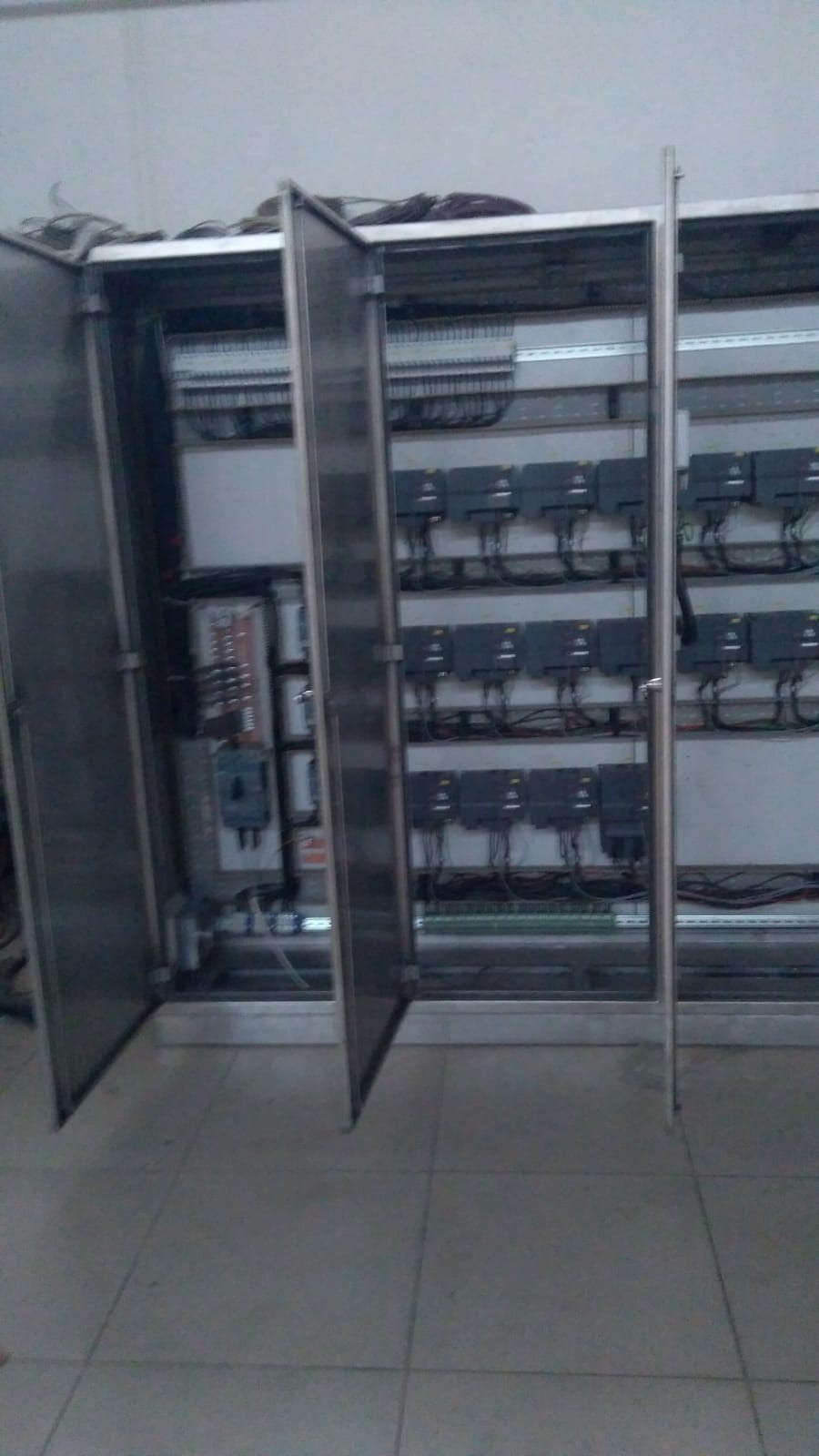

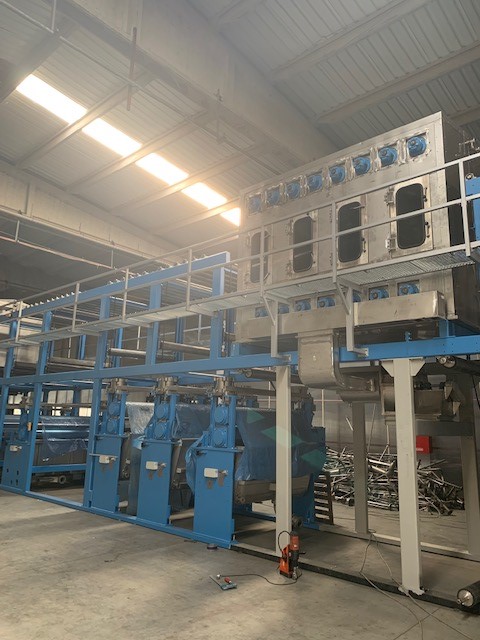

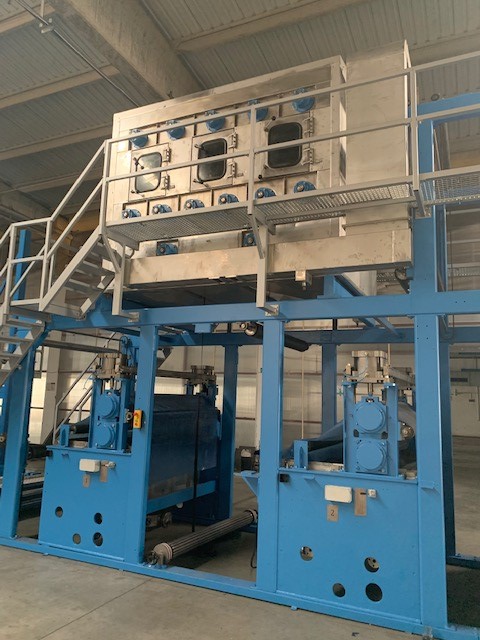

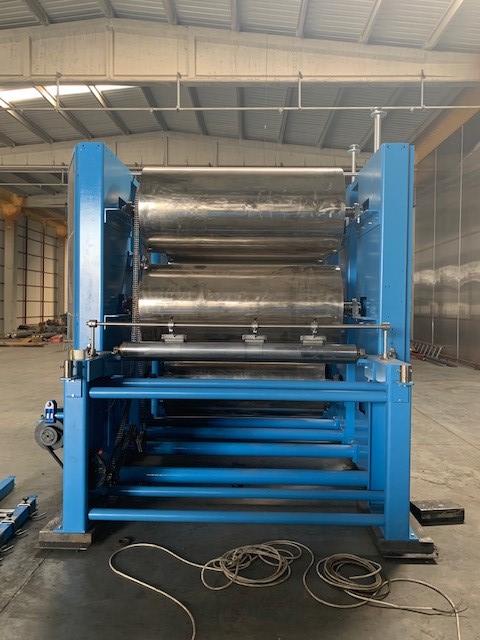

MASTER INDIGO DYE SLASHER UNIT 1 MAYER-MASTER INDIGO DYE SLASHER RANGE Year 2019 Completely Rebuilt by Temsan Air Turkiye Master Indigo-Compact Dyeing Karl Mayer Beaming – Max Warp Width 2600mm Rotal Sizing Temsan High Efficiency Air & Oxidation Roller width 1800mm Working width 1600mm Sizing & Beaming Comprising of: Sizing & Beaming: 1 Rotal Size Box with 2 Dip and 2 Nips 14 Mayer-Rotal Steam heated cylinders Final drying after sizing Karl Mayer Beaming Headstock Model BM2600/1100 2600 mm maximum beaming width 1100 mm maximum flange diameter Indigo Dyeing: (1) Soda Preparation Box With high pressure Squeeze 10 Kn (2) Neutralization Boxes with Nip rollers (1) Pre-Wash Box with High pressure Nips 10Kn (8) Indigo Dye Boxes with Temsan Patented Forced Air Oxidation For high efficiency dyeing, Low cost Increased production speed And Deeper Indigo coloration Each box with High Pressure Squeeze Nips 10 Kn (1) Indigo Dye Filter Box (3) Wash off Rinse boxes each with High Pressure Squeeze Nips Total (16) Boxes Accumulator stand for continuous running 12 Mayer-Rotal Steam Heated Cylinders Pre-Sizing Beam Creel: 2 Movable Beam Creels Each 16 Beam Capacity by Master Srl Controls: Fully Synchronized Speed controls, Dye Circulation Temperature and Dye flow controls With On – Line Diagnostics at Temsan Turkey Color & Size Kitchens: Dye Color Kitchen with Stainless Steel Dye Mixing And Storage Tanks Size Kitchen with Mixing and 2 storage tanks 10 Chemical Tanks 1 Filter Tank
