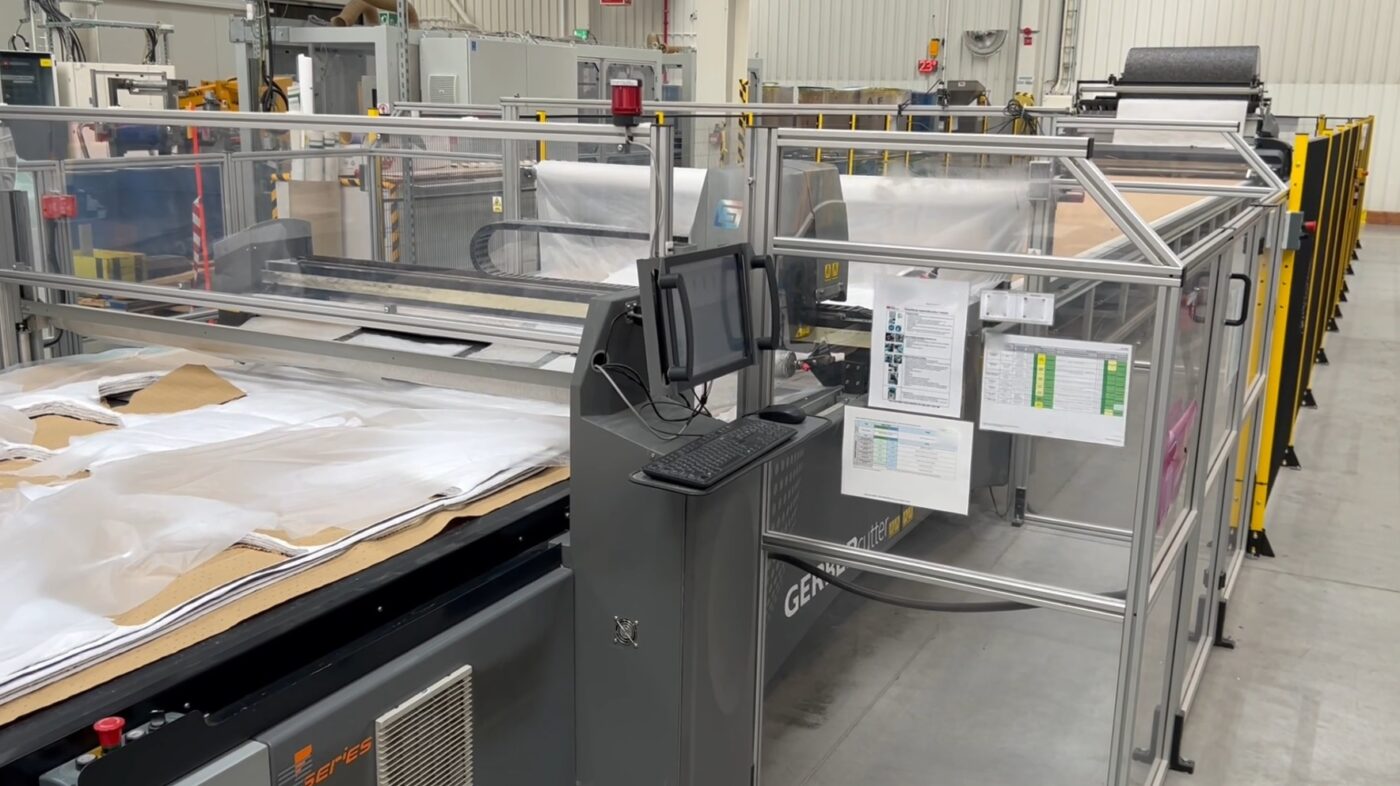

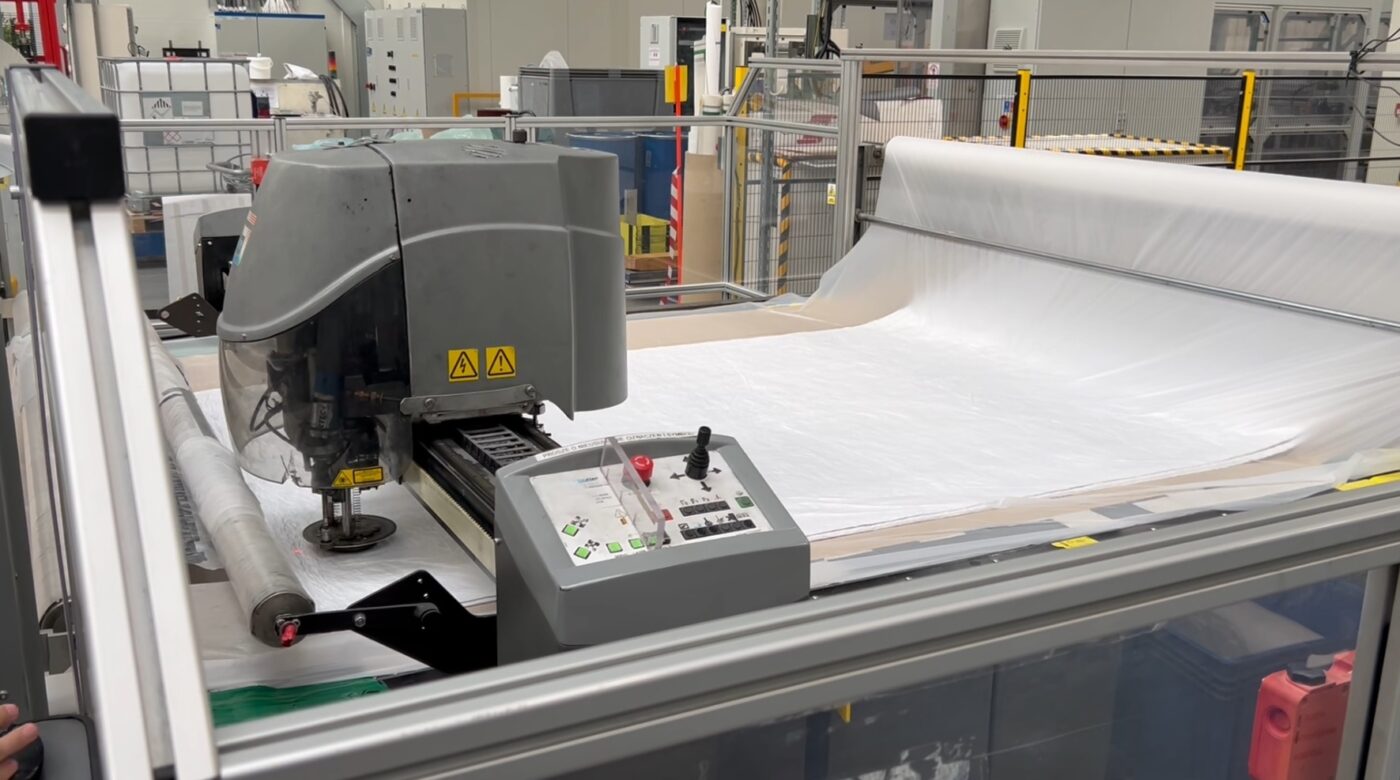

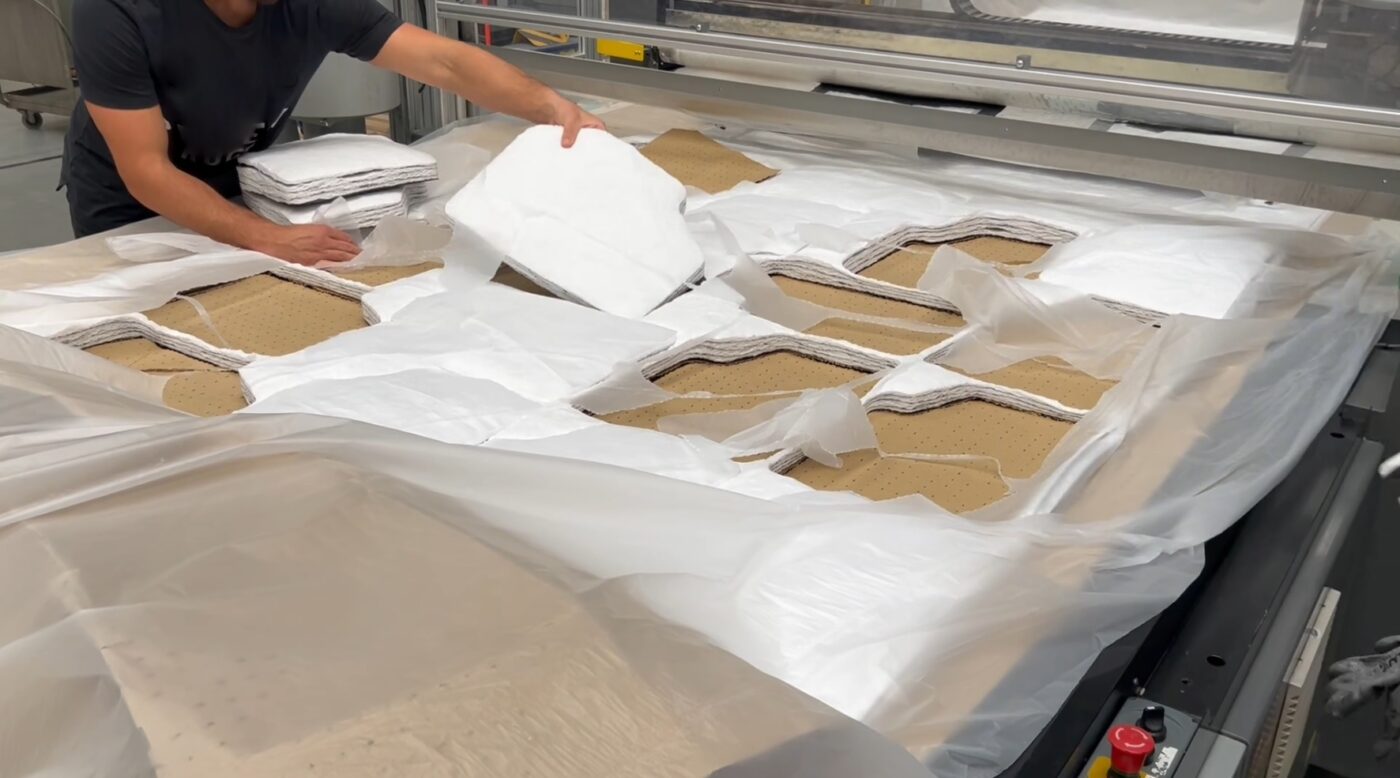

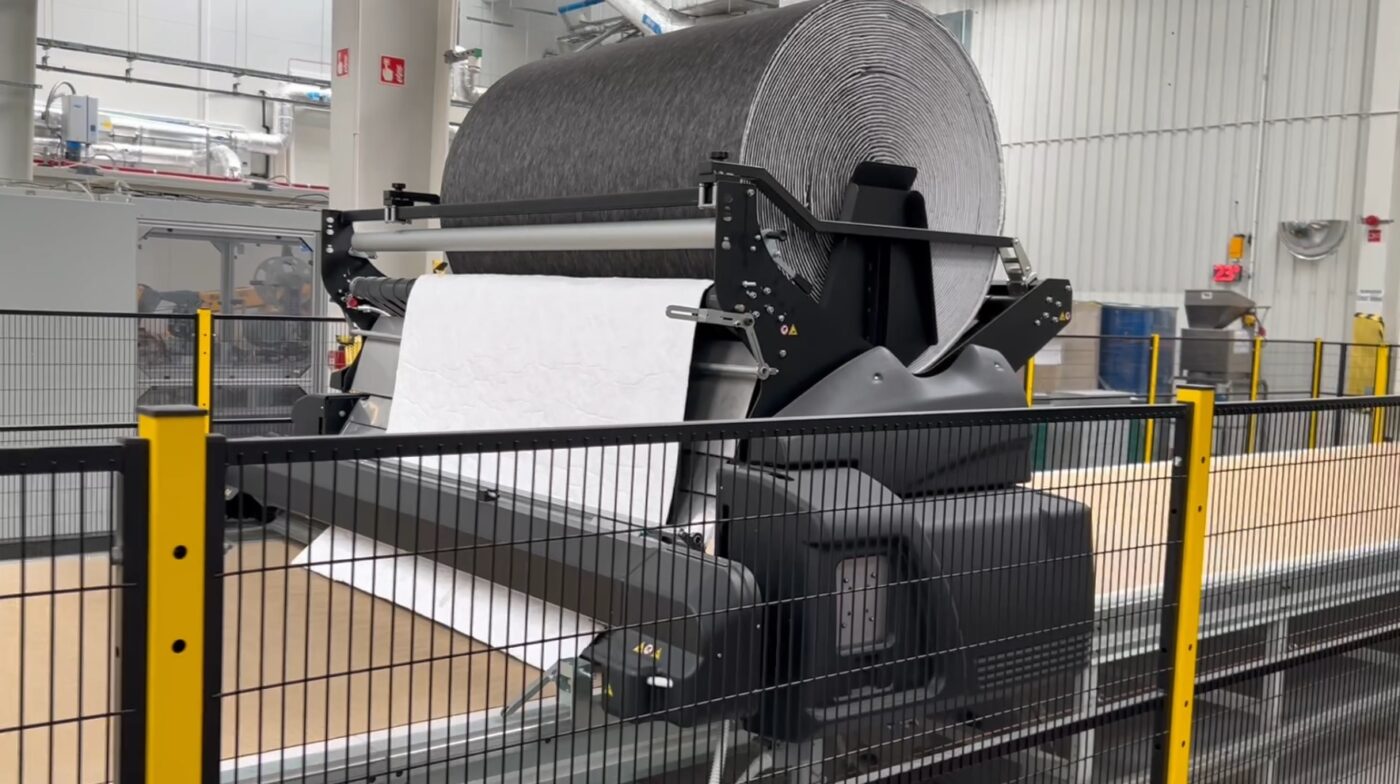

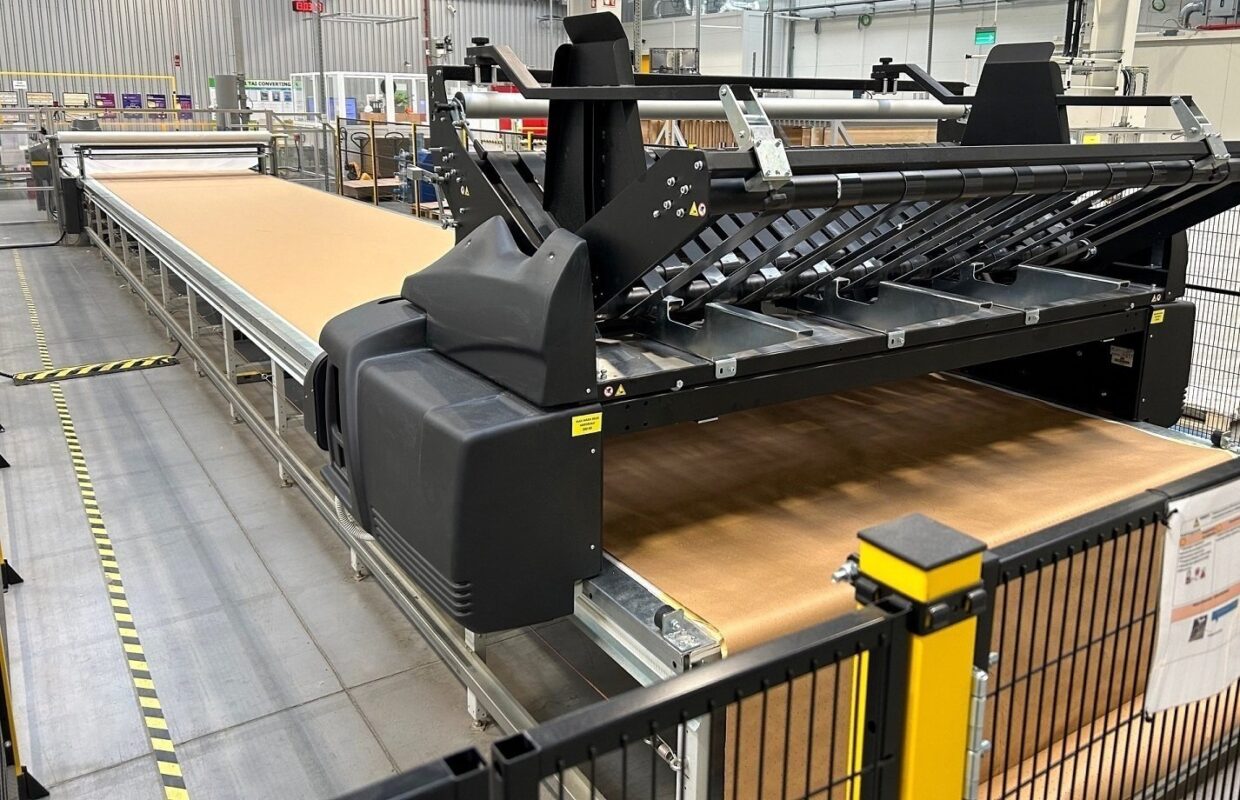

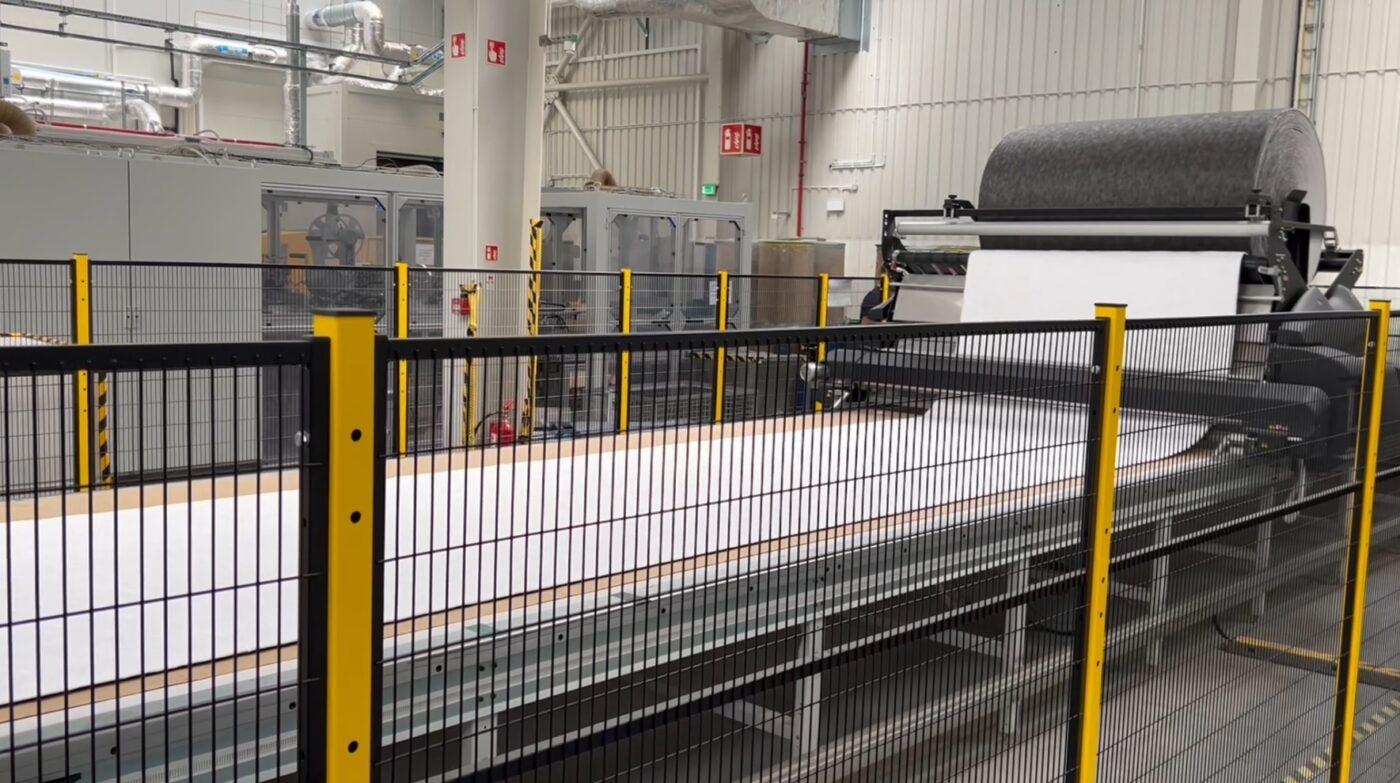

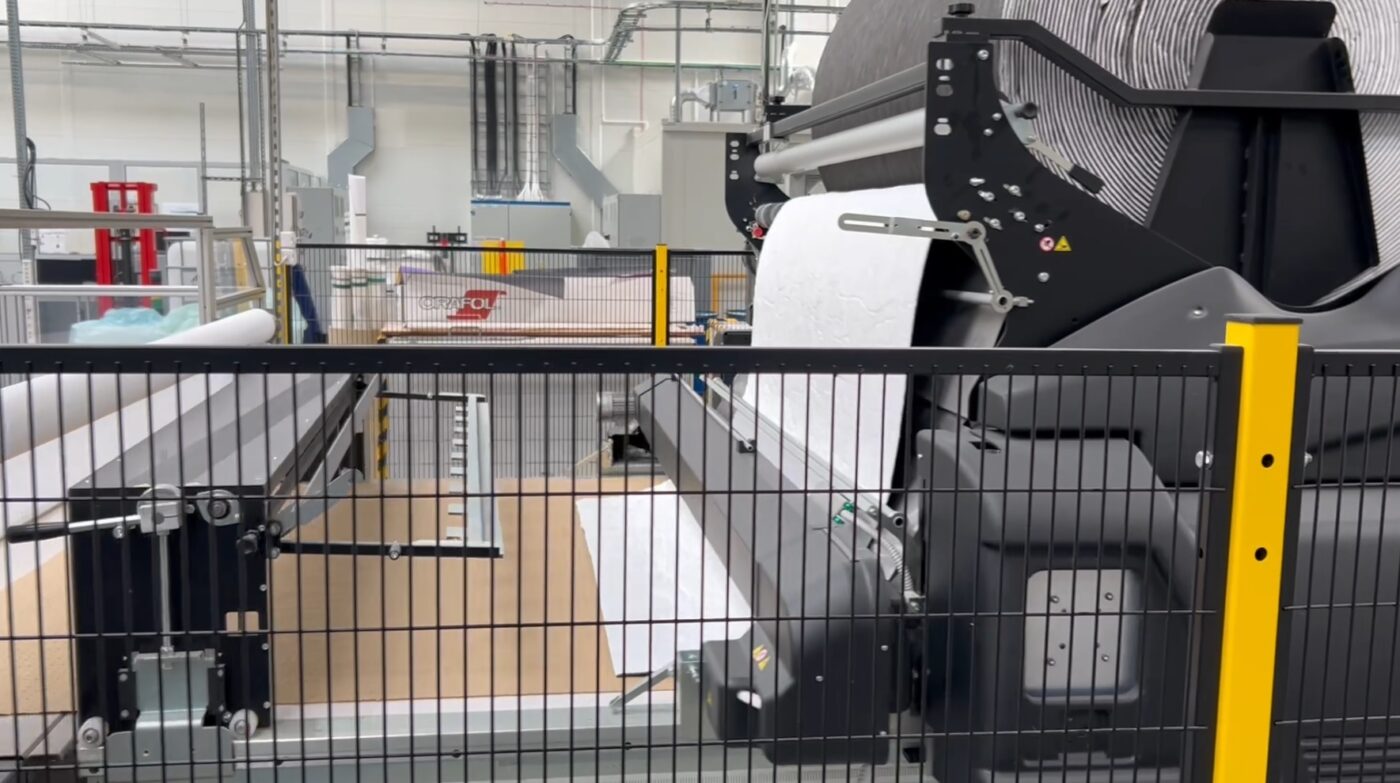

Technical specifications of GERBER Cutter Z7 automatic cutting machine industrial controller with Windows operating system and interactive interface cutting area (L x W): 1800 x 2000 mm maximum cutting height (after compression): 72 mm Knife Intelligence „Plus” system – automatic control of knife movement and change of knife angle, cutting path and acceleration in real time SMARTbite system – optimisation of cutting paths by automatic adjustment of the knife advance speed based on the height and type of overlap automatic knife sharpening system knife cooling system machine diagnostics Technical specifications of the ALLCOMP AERO MAXIMA 200-120-200 spreading machine year of manufacture: 2023 maximum spreading length: 10800 mm maximum material roll diameter: 800 mm maximum material roll width: 2000 mm maximum material roll weight: 800 mm maximum spreading height (right side up): up to 220 mm maximum spreading height (zig-zag with buckle): up to 120 mm working speed: adjustable up to 100 m/min working mode: automatic, semi-automatic, manual automatically rotating, programmable loading cradle on double thickened fabric feeding belts with detection sensors for even fabric edge positioning loading height of loading cradle (from the table top): approx. 60 cm automatic knife sharpening system automatic material cut-off fabric tension control with tension levelling function movable bracket to hold fabric at the start of the spreading process automatic spreading of the fabric with and without a moving clamp with maintaining of a pre-set length of an overlap control panel with colour touchscreen external control panel located outside of the safety zone library of machining parameters adapted to the various materials LOTO (Lock Out – Tag Out) interlock physical barrier safety system – safety level: Performance Level D (PL d) – compliant with ISO 13849-1 – protection of work area equipment – prevention of the start of the process when a person is in the work area – electrical documentation work table – adaptation of the top plates and side running boards to the spreading machine – paper holder – cable guide including fixing – electrical cabinet including technical documentation power: 3 kW power supply: 3x 400 V; 50 Hz width of the machine including operator platform: 3240 mm machine weight: 650 kg
