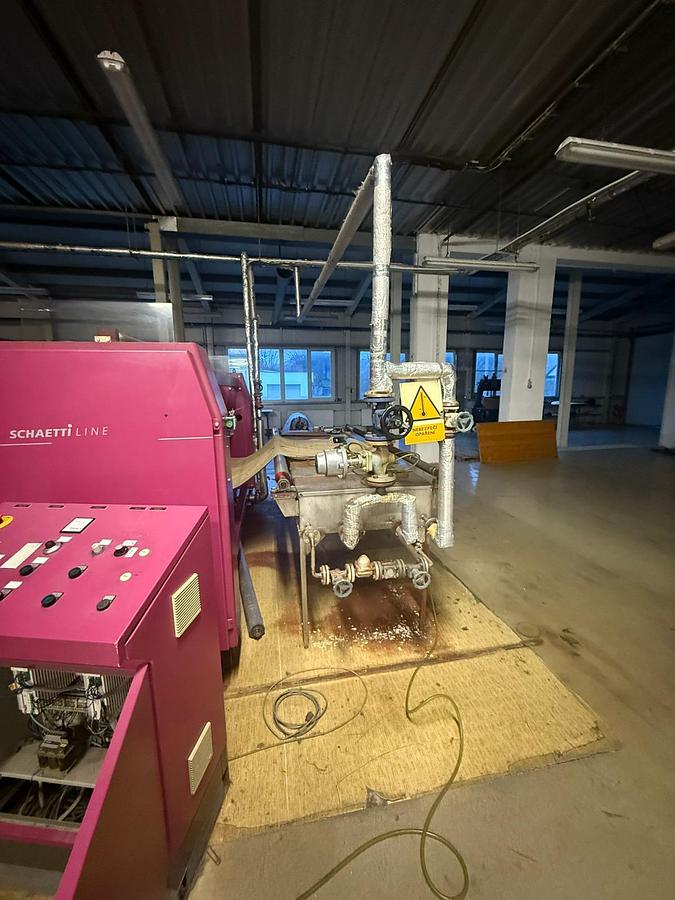

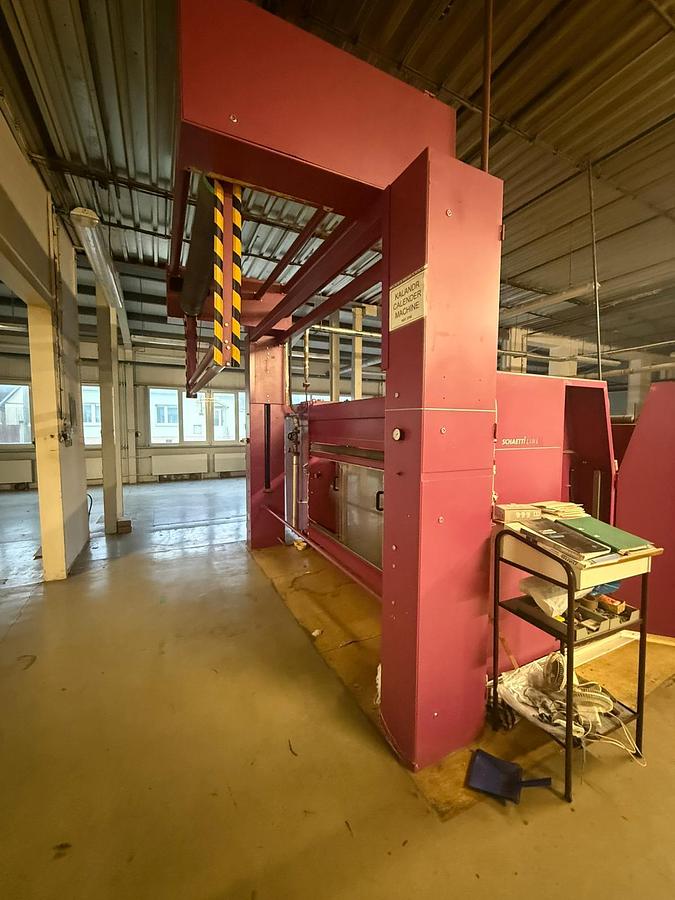

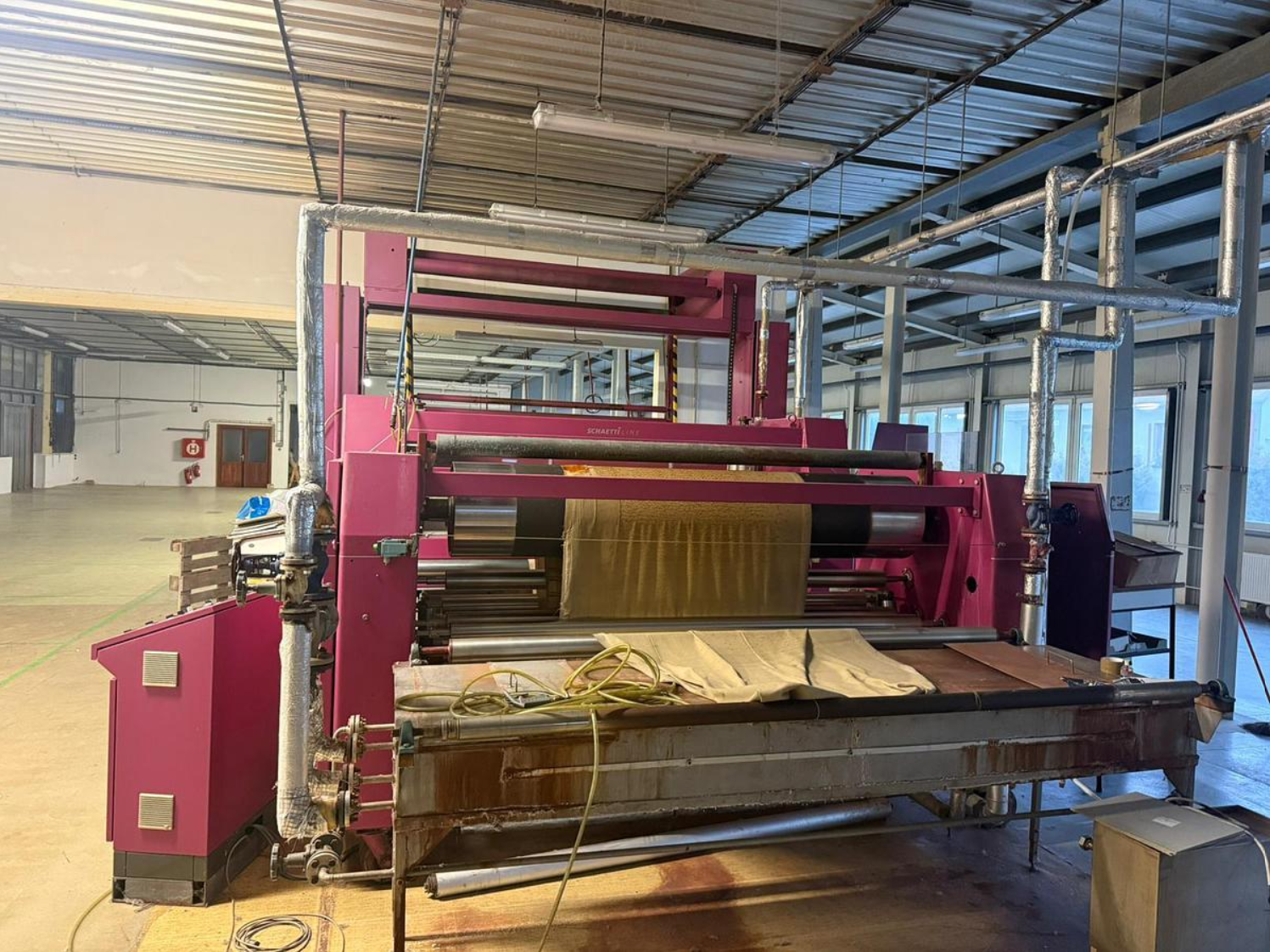

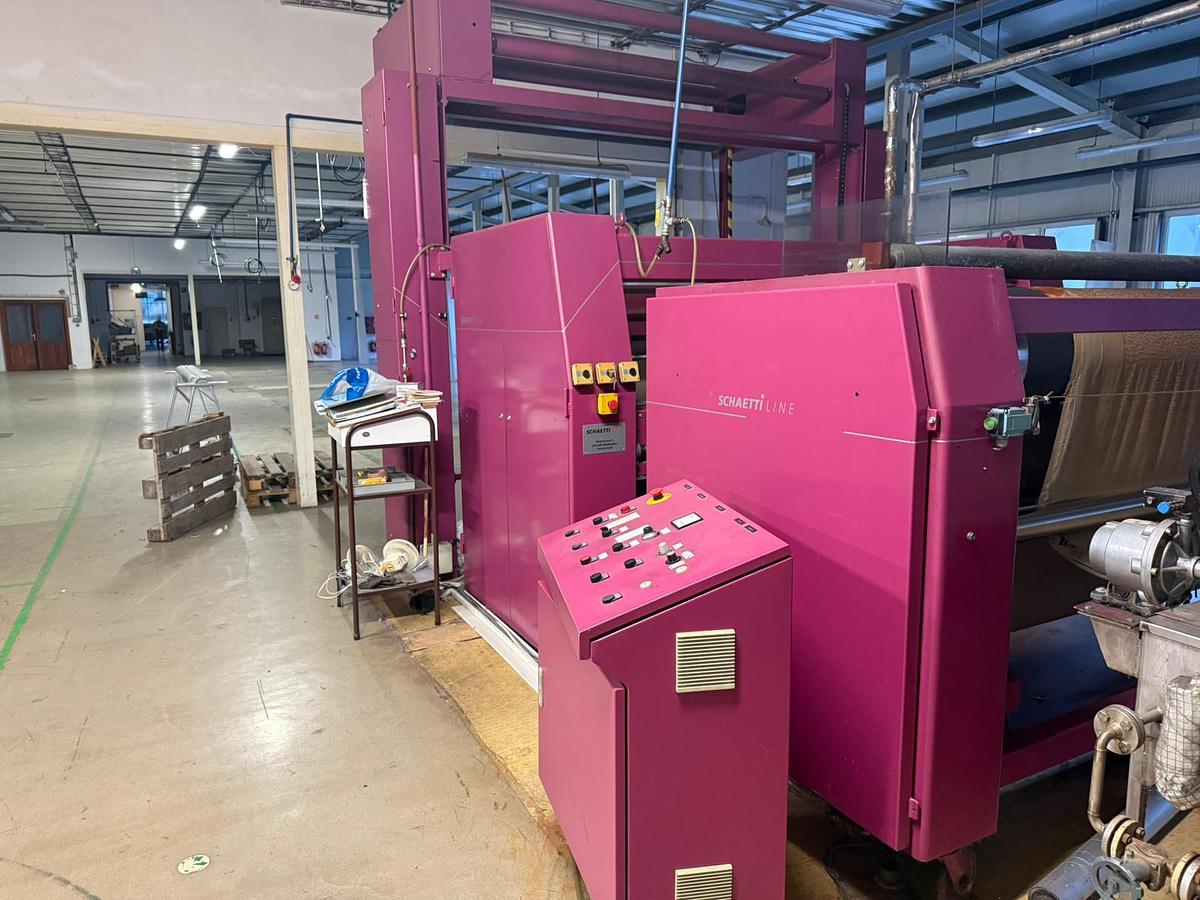

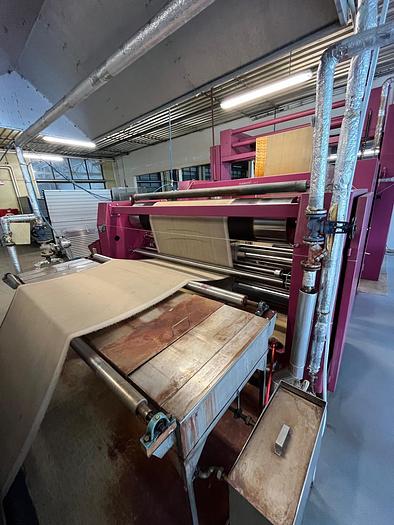

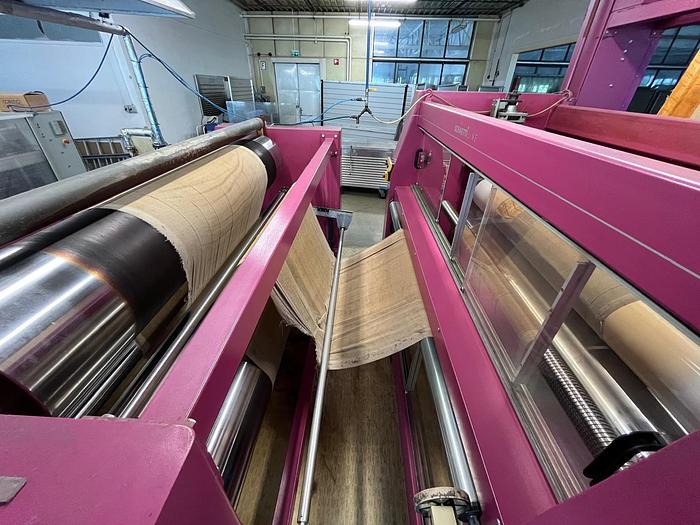

2-roller Calandar, make Schaetti (CH), Type Line 4072, including heating unit Type Schaetti Line 4073 and plaiter Schaetti Line 95022 Year of manufacture 1995, working width 1,000 – 2,200 mm,cylinder width 2,400 mm working speed 0 – 70 m/min. Heating roller, sheated steam, max. 200°C – operating pressure approx. 15 bar Pneumatic operating pressure 10 bar voltage 3 x 380 V / 50 Hz Heating station type Schaetti Line 4073 - Heating rollers 450 mm diameter, hard chrome-plated - mobile The heating station dehumidifies the steam-treated substrates on both sides. Depending on the preselected temperature and speed, this process is carried out either more gently or more quickly. Calandar Type Schaetti Line 4072, 2 rollers - Heating roller, 610 mm diameter, hard chrome-plated, - Pressure roller 305 mm diameter, silicone-coated (10 mm), max. pressure load 20 N/mm, max. temp. 200°C The calandar smooths the substrate using the silicone-coated pressure roller and the application of heat. Plaiter Schaetti Line 95022 model Feeds the smoothed substrate into the sheeter trolleys provided by the customer. Technical documentation and drawings available Delivery immediately available
